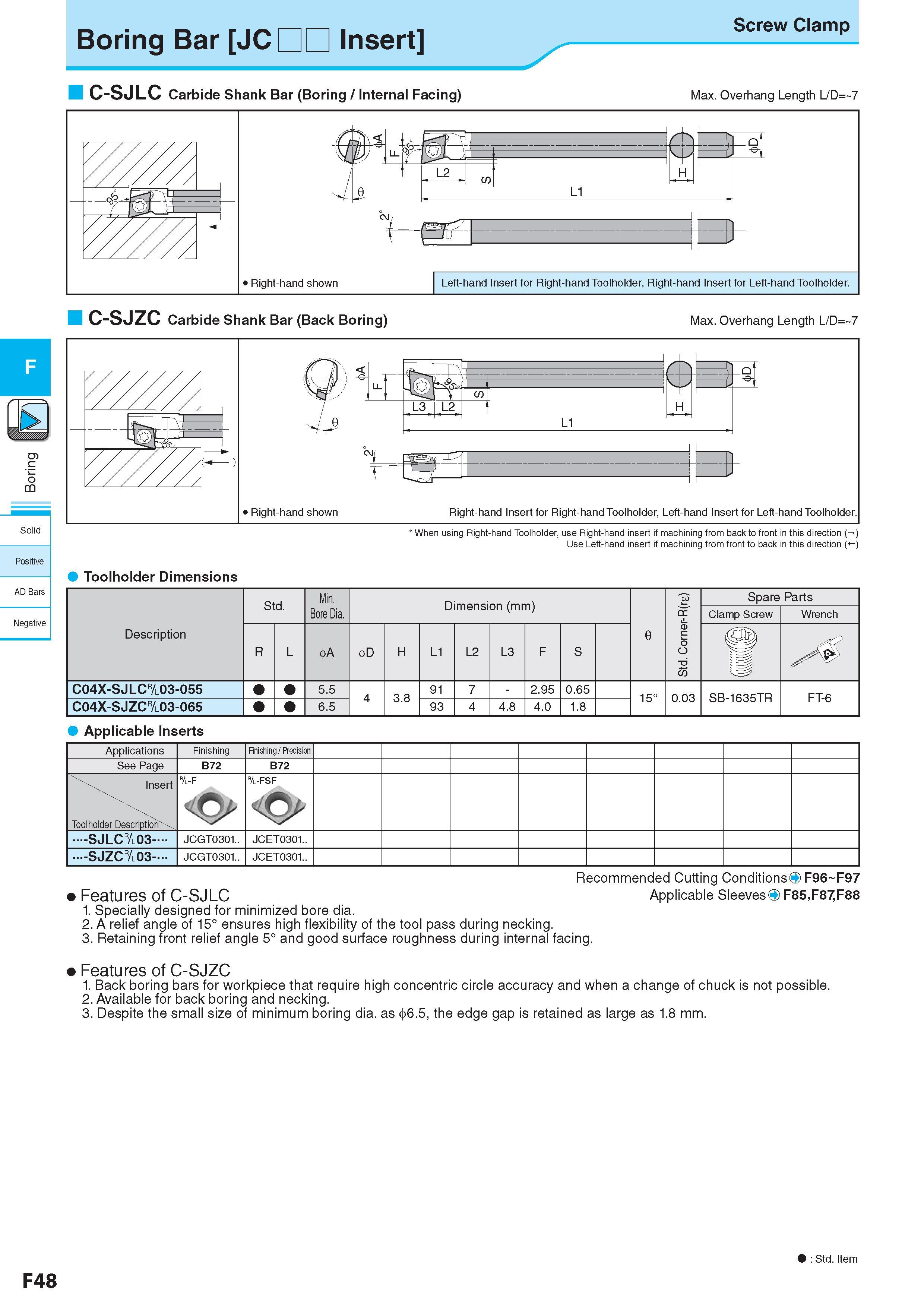

c <5 CQ Solid Positive AD Bars Negative Boring Bar JC Insert Screw Clamp C-SJLC Carbide Shank Bar (Boring / Internal Facing) Max. Overhang Length L/D= 7 When using Right-hand Toolholder, use Right-hand insert if machining from back to front in this direction Use Left-hand insert if machining from front to back in this direction Toolholder Dimensions Std. Min. Dimension (mm) Размеры в мм "to DC er nr or O td. W Spare Parts Bore Dia. Clamp Screw Wrench Description Обозначение R L A D H L1 L2 L3 F S e fjf C04X-SJLC&03-055 5.5 4 3.8 91 7 - 2.95 0.65 15° 0.03 SB-1635TR FT-6 C04X-SJZC&03-065 6.5 93 4 4.8 4.0 1.8 Recommended Cutting Conditions Рекомендованные режимы резания на станкахO F96 F97 Features of C-SJLC Applicable Sleeves F85,F87,F88 1. Specially designed for minimized bore dia. 2. A relief angle of 15° ensures high flexibility of the tool pass during necking. 3. Retaining front relief angle 5° and good surface roughness during internal facing. Features of C-SJZC 1. Back boring bars for workpiece that require high concentric circle accuracy and when a change of chuck is not possible. 2. Available for back boring and necking. 3. Despite the small size of minimum boring dia. as 6.5, the edge gap is retained as large as 1.8 mm. F48 : Std. Item
