310 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.F46

Каталог KYOCERA 2017 Инструмент режущий Стр. F46 0310 Lab2u

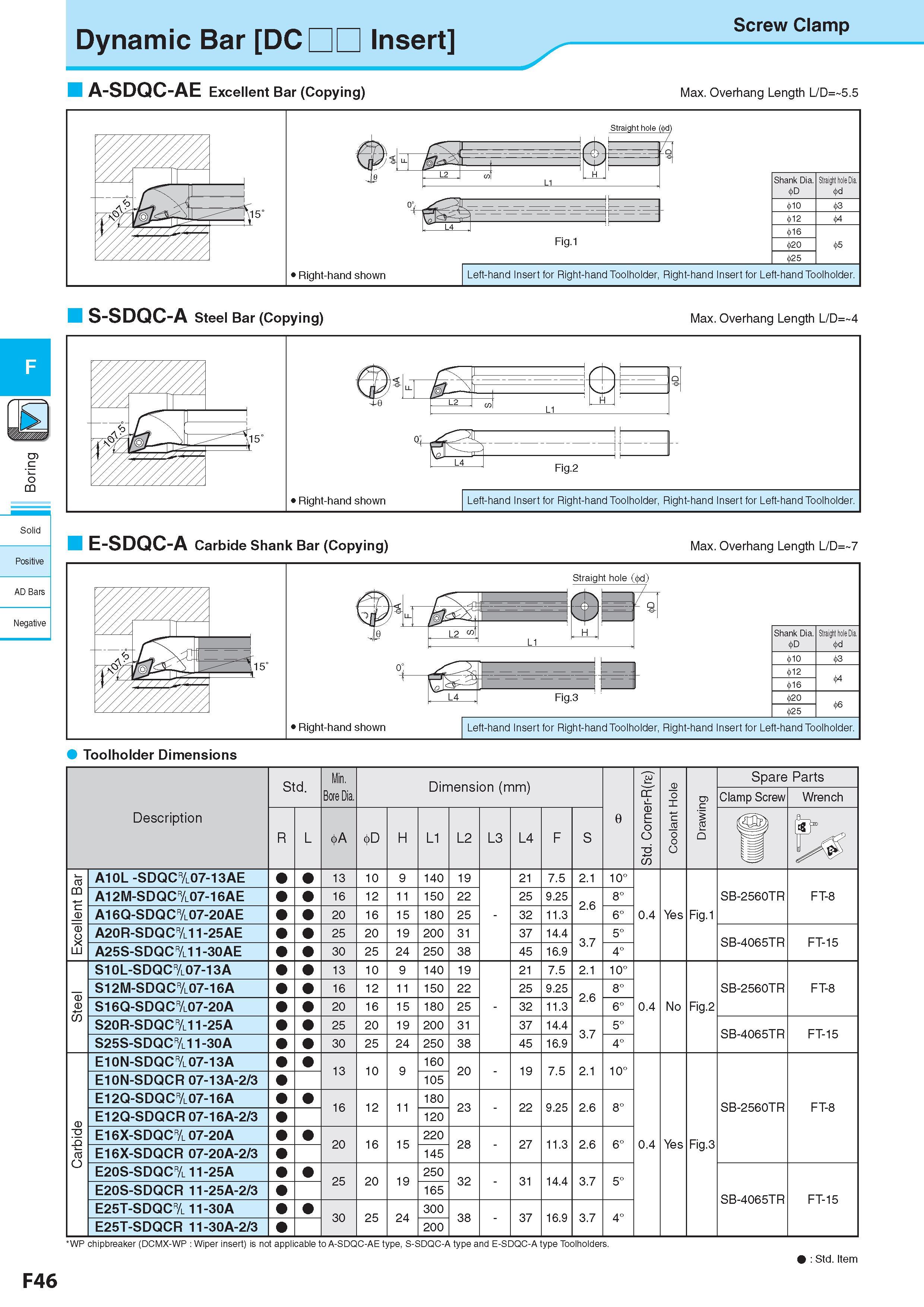

c <5 CQ Solid Positive AD Bars Negative Dynamic Bar DC Insert Screw Clamp A-SDQC-AE Excellent Bar (Copying) Max. Overhang Length L/D= 5.5 > Показано правое исполнение инструмента Shank Dia. Straight hole Dia. d 4 A D H L1 L2 L3 L4 F S e u Excellent Bar A10L -SDQC&07-13AE 13 10 9 140 19 21 7.5 2.1 10° A12M-SDQC&07-16AE 16 12 11 150 22 25 9.25 2.6 8° SB-2560TR FT-8 A16Q-SDQC&07-20AE 20 16 15 180 25 - 32 11.3 6° 0.4 Yes Fig.1 A20R-SDQC&11-25AE 25 20 19 200 31 37 14.4 3.7 5° SB-4065TR FT-15 A25S-SDQC&11-30AE 30 25 24 250 38 45 16.9 4° S10L-SDQC&07-13A 13 10 9 140 19 21 7.5 2.1 10° Steel S12M-SDQC&07-16A 16 12 11 150 22 25 9.25 2.6 8° SB-2560TR FT-8 S16Q-SDQC&07-20A 20 16 15 180 25 - 32 11.3 6° 0.4 No Fig.2 S20R-SDQC&11-25A 25 20 19 200 31 37 14.4 3.7 5° SB-4065TR FT-15 S25S-SDQC&11-30A 30 25 24 250 38 45 16.9 4° E10N-SDQC& 07-13A 13 10 9 160 20 19 7.5 2.1 10° E10N-SDQCR 07-13A-2/3 105 E12Q-SDQC&07-16A 16 12 11 180 23 22 9.25 2.6 8° SB-2560TR FT-8 Carbide E12Q-SDQCR 07-16A-2/3 120 E16X-SDQC& 07-20A 20 16 15 220 28 27 11.3 2.6 6° 0.4 Yes Fig.3 E16X-SDQCR 07-20A-2/3 145 E20S-SDQC& 11-25A 25 20 19 250 32 31 14.4 3.7 5° E20S-SDQCR 11-25A-2/3 165 SB-4065TR FT-15 E25T-SDQC& 11-30A 30 25 24 300 38 37 16.9 3.7 4° E25T-SDQCR 11-30A-2/3 200 WP chipbreaker (DCMX-WP : Wiper insert) is not applicable to A-SDQC-AE type, S-SDQC-A type and E-SDQC-A type Toolholders. F46 : Std. Item
