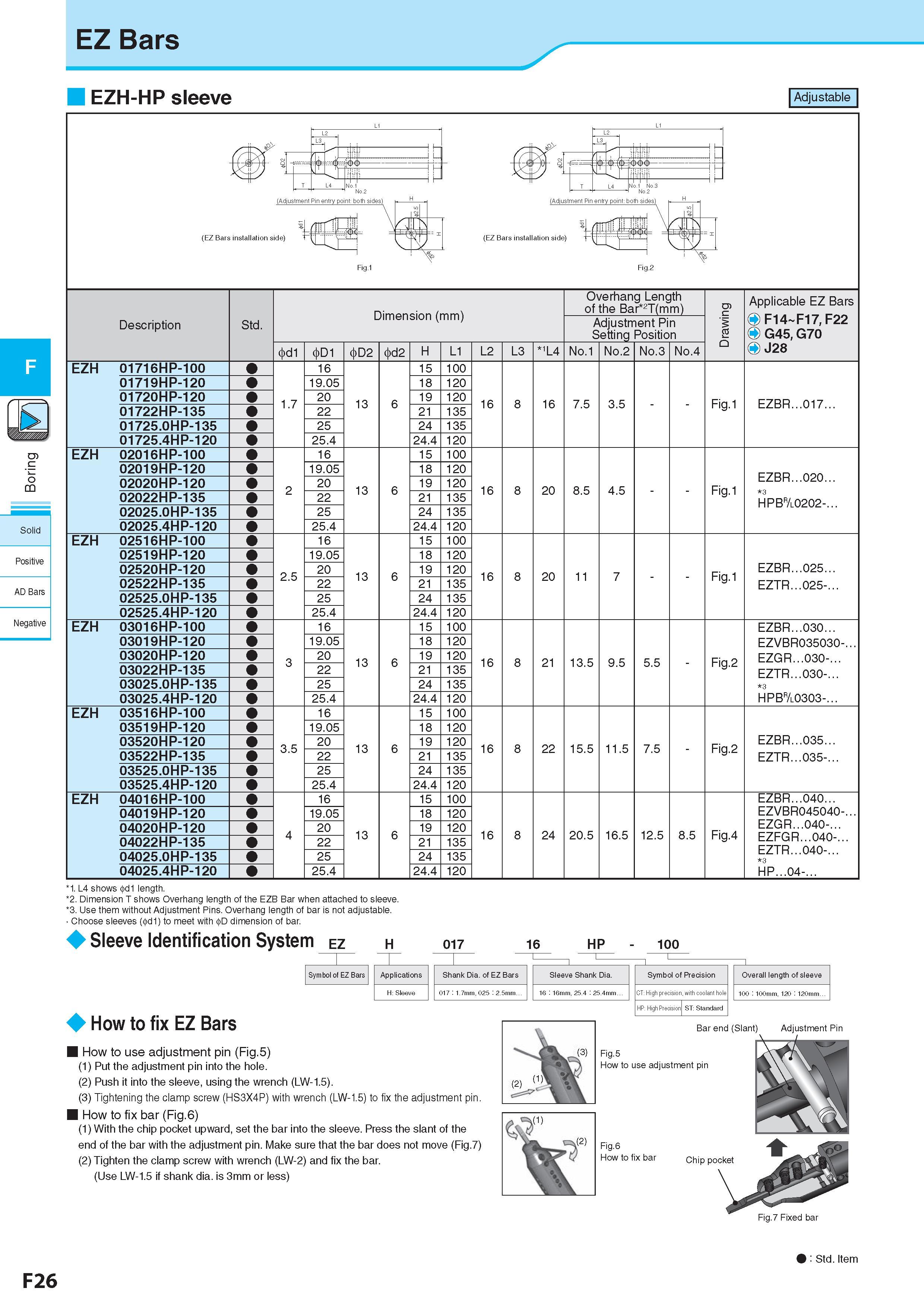

EZ Bars EZH-HP sleeve Adjustable Description Обозначение Std. Dimension (mm) Размеры в мм fd1 D1 D2 d2 H L1 L2 L3 1L4 No.1 No.2 No.3 No.4 D O J28 EZH 01716HP-100 16 15 100 01719HP-120 19.05 18 120 01720HP-120 1.7 20 13 6 19 120 16 8 16 7.5 3.5 Fig.1 EZBR...017... 01722HP-135 22 21 135 01725.0HP-135 25 24 135 01725.4HP-120 25.4 24.4 120 EZH 02016HP-100 16 15 100 02019HP-120 19.05 18 120 EZBR...020... 02020HP-120 2 20 13 6 19 120 16 8 20 8.5 4.5 Fig.1 02022HP-135 22 21 135 HPB&0202-... 02025.0HP-135 25 24 135 02025.4HP-120 25.4 24.4 120 EZH 02516HP-100 16 15 100 02519HP-120 19.05 18 120 02520HP-120 2.5 20 13 6 19 120 16 8 20 11 7 Fig.1 EZBR...025... 02522HP-135 22 21 135 EZTR...025-... 02525.0HP-135 25 24 135 02525.4HP-120 25.4 24.4 120 EZH 03016HP-100 16 15 100 EZBR...030... 03019HP-120 19.05 18 120 EZVBR035030-... 03020HP-120 3 20 13 6 19 120 16 8 21 13.5 9.5 5.5 Fig.2 EZGR...030-... 03022HP-135 22 21 135 EZTR...030-... 03025.0HP-135 25 24 135 3 03025.4HP-120 25.4 24.4 120 HPB&0303-... EZH 03516HP-100 16 15 100 03519HP-120 19.05 18 120 03520HP-120 3.5 20 13 6 19 120 16 8 22 15.5 11.5 7.5 Fig.2 EZBR...035... 03522HP-135 22 21 135 EZTR...035-... 03525.0HP-135 25 24 135 03525.4HP-120 25.4 24.4 120 EZH 04016HP-100 16 15 100 EZBR...040... 04019HP-120 19.05 18 120 EZVBR045040-... 04020HP-120 4 20 13 6 19 120 16 8 24 20.5 16.5 12.5 8.5 Fig.4 EZGR...040-... EZFGR...040-... EZTR...040-... 3 04022HP-135 22 21 135 04025.0HP-135 25 24 135 04025.4HP-120 25.4 24.4 120 HP...04-... Overhang Length of the Bar 2T(mm) Adjustment Pin Applicable EZ Bars O F14 F17, F22 O G45, G70 O CQ Negative 1. L4 shows d1 length. 2. Dimension T shows Overhang length of the EZB Bar when attached to sleeve. 3. Use them without Adjustment Pins. Overhang length of bar is not adjustable. Choose sleeves ( d1) to meet with D dimension of bar. Sleeve Identification System ez h 017 16 HP 100 Symbol of EZ Bars Applications H: Sleeve Shank Dia. of EZ Bars Sleeve Shank Dia. 017 : 1.7mm, 025 : 2.5mm... 16 : 16mm, 25.4 : 25.4mm... How to fix EZ Bars Symbol of Precision CT: High precision, with coolant hole i ST: Standard Overall length of sleeve 100 : 100mm, 120 : 120mm. How to use adjustment pin (Fig.5) (1) Put the adjustment pin into the hole. (2) Push it into the sleeve, using the wrench (LW-1.5). (3) Tightening the clamp screw (HS3X4P) with wrench (LW-1.5) to fix the adjustment pin. How to fix bar (Fig.6) (1) With the chip pocket upward, set the bar into the sleeve. Press the slant of the end of the bar with the adjustment pin. Make sure that the bar does not move (Fig.7) (2) Tighten the clamp screw with wrench (LW-2) and fix the bar. (Use LW-1.5 if shank dia. is 3mm or less) Barend (Slant) Adjustment Pin Fig.5 How to use adjustment pin Fig.6 How to fix bar Chip pocket Fig.7 Fixed bar Solid AD Bars : Std. Item Стандартная позиция F26
