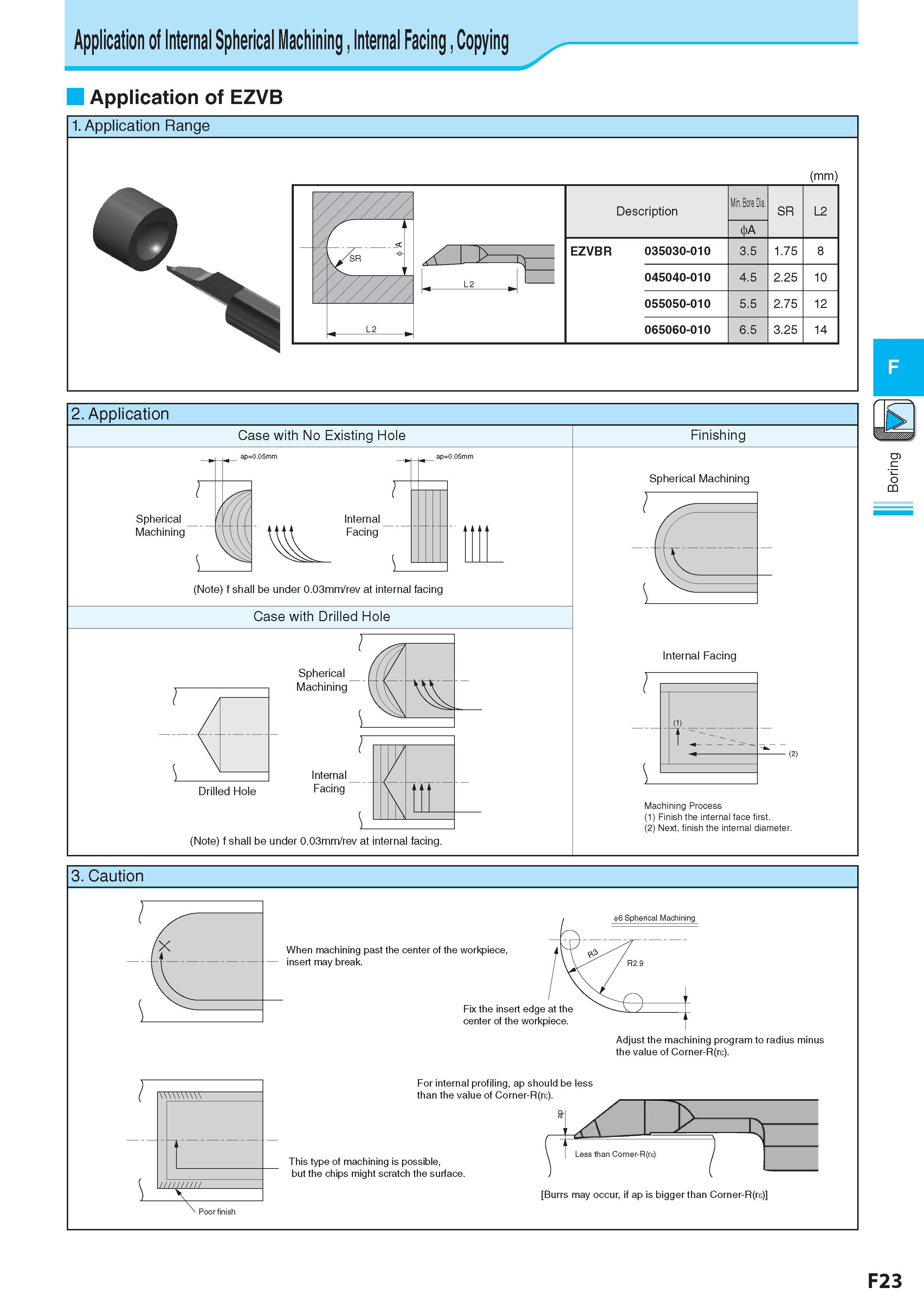

Application of Internal Spherical Machining , Internal Facing , Copying Application of EZVB 1. Application Range (mm) 2. Application Case with No Existing Hole Spherical Machining Internal Facing Finishing Spherical Machining (Note) f shall be under 0.03mm/rev at internal facing Case with Drilled Hole Spherical Machining Internal Facing Internal Facing Machining Process (1) Finish the internal face first. (2) Next, finish the internal diameter. (Note) f shall be under 0.03mm/rev at internal facing. c o CQ 3. Caution Adjust the machining program to radius minus the value of Corner-R(rs). For internal profiling, ap should be less (2) F23
