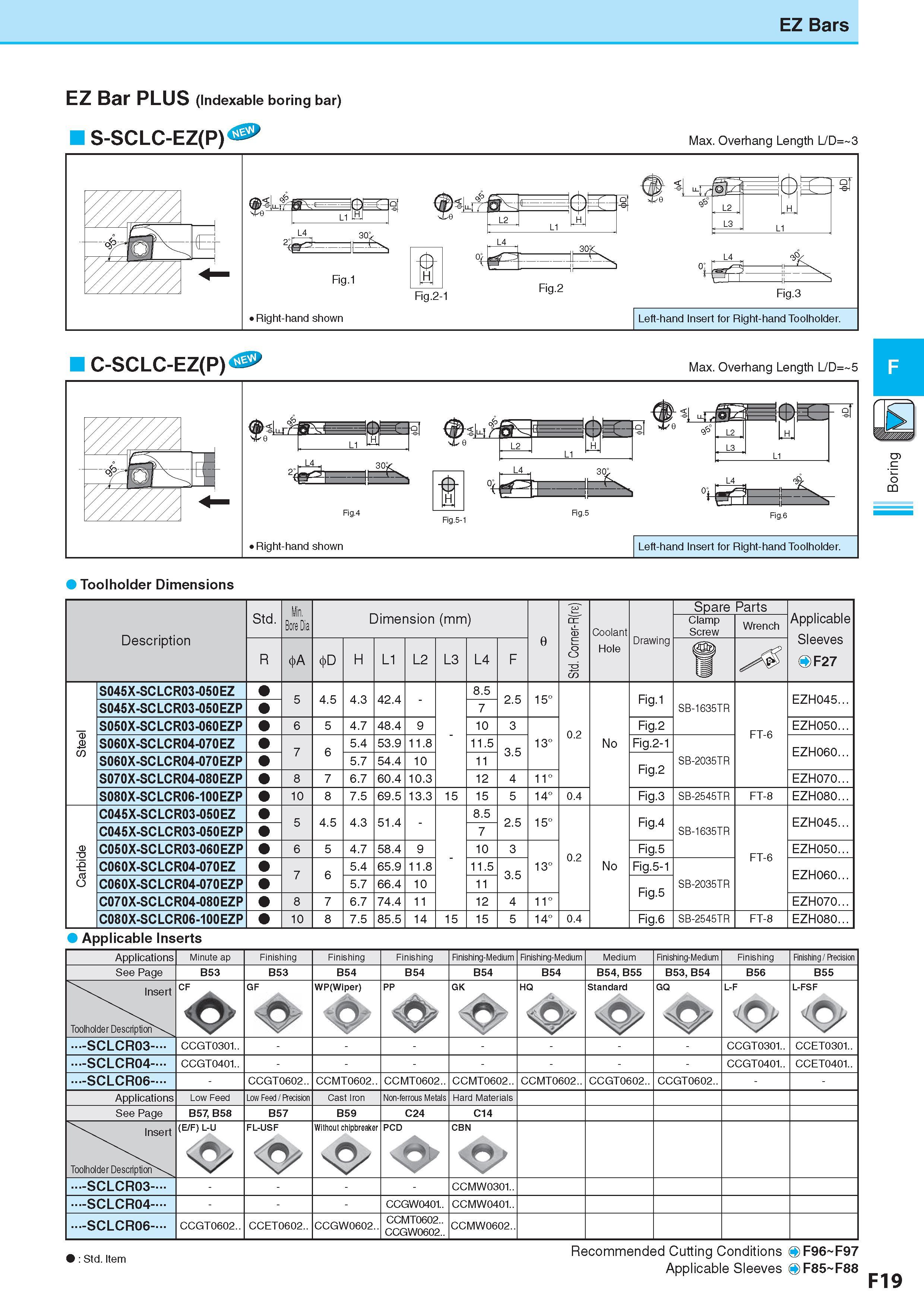

283 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.F19

Каталог KYOCERA 2017 Инструмент режущий Стр. F19 0283 Lab2u

EZ Bars EZ Bar PLUS (Indexable boring bar) S-SCLC-EZ(P) Max. Overhang Length L/D= 3 C-SCLC-EZ(P)< Max. Overhang Length L/D= 5 Toolholder Dimensions Description Обозначение Std. Min. Bore Dia Dimension (mm) Размеры в мм e 3 a5 £= TD Coolant Hole Drawing Spare Parts Applicable Sleeves OF27 Clamp Screw Wrench R A D H L1 L2 L3 L4 F u Steel S045X-SCLCR03-050EZ 5 4.5 4.3 42.4 8.5 2.5 15° 0.2 No Fig.1 SB-1635TR FT-6 EZH045... S045X-SCLCR03-050EZP 7 S050X-SCLCR03-060EZP 6 5 4.7 48.4 9 10 3 13° Fig.2 EZH050... S060X-SCLCR04-070EZ 7 6 5.4 53.9 11.8 11.5 3.5 Fig.2-1 SB-2035TR EZH060... S060X-SCLCR04-070EZP 5.7 54.4 10 11 Fig.2 S070X-SCLCR04-080EZP 8 7 6.7 60.4 10.3 12 4 11° EZH070... S080X-SCLCR06-100EZP 10 8 7.5 69.5 13.3 15 15 5 14° 0.4 Fig.3 SB-2545TR FT-8 EZH080... Carbide C045X-SCLCR03-050EZ 5 4.5 4.3 51.4 8.5 2.5 15° 0.2 No Fig.4 SB-1635TR FT-6 EZH045... C045X-SCLCR03-050EZP 7 C050X-SCLCR03-060EZP 6 5 4.7 58.4 9 10 3 13° Fig.5 EZH050... C060X-SCLCR04-070EZ 7 6 5.4 65.9 11.8 11.5 3.5 Fig.5-1 SB-2035TR EZH060... C060X-SCLCR04-070EZP 5.7 66.4 10 11 Fig.5 C070X-SCLCR04-080EZP 8 7 6.7 74.4 11 12 4 11° EZH070... C080X-SCLCR06-100EZP 10 8 7.5 85.5 14 15 15 5 14° 0.4 Fig.6 SB-2545TR FT-8 EZH080... Applicable Inserts Applications Minute ap Finishing Finishing Finishing Finishing-Medium Finishing-Medium Medium Finishing-Medium Finishing Finishing / Precision See Page B53 B53 B54 B54 B54 B54 B54, B55 B53, B54 B56 B55 Insert Toolholder Description Обозначение CF GF WP(Wiper) PP GK HQ Standard GQ "O' L-F L-FSF <0 ...-SCLCR03-.. CCGT0301.. - CCGT0301.. CCET0301.. ...-SCLCR04-.. CCGT0401.. - CCGT0401.. CCET0401.. ...-SCLCR06-.. - CCGT0602.. CCMT0602.. CCMT0602.. CCMT0602.. CCMT0602.. CCGT0602.. CCGT0602.. Applications Low Feed Low Feed / Precision Cast Iron Non-ferrous Metals Hard Materials See Page B57, B58 B57 B59 C24 C14 Insert Toolholder Description Обозначение (E/F) L-U FL-USF O' Without chipbreaker PCD CBN ...-SCLCR03-.. CCMW0301.. ...-SCLCR04-.. - CCGW0401.. CCMW0401.. ...-SCLCR06-.. CCGT0602.. CCET0602.. CCGW0602.. CCMT0602.. CCGW0602.. CCMW0602.. „ Recommended Cutting Conditions Рекомендованные режимы резания на станках OF96 F97 : Std. Item Стандартная позиция ....... Applicable Sleeves OF85 F88 F19 Boring
