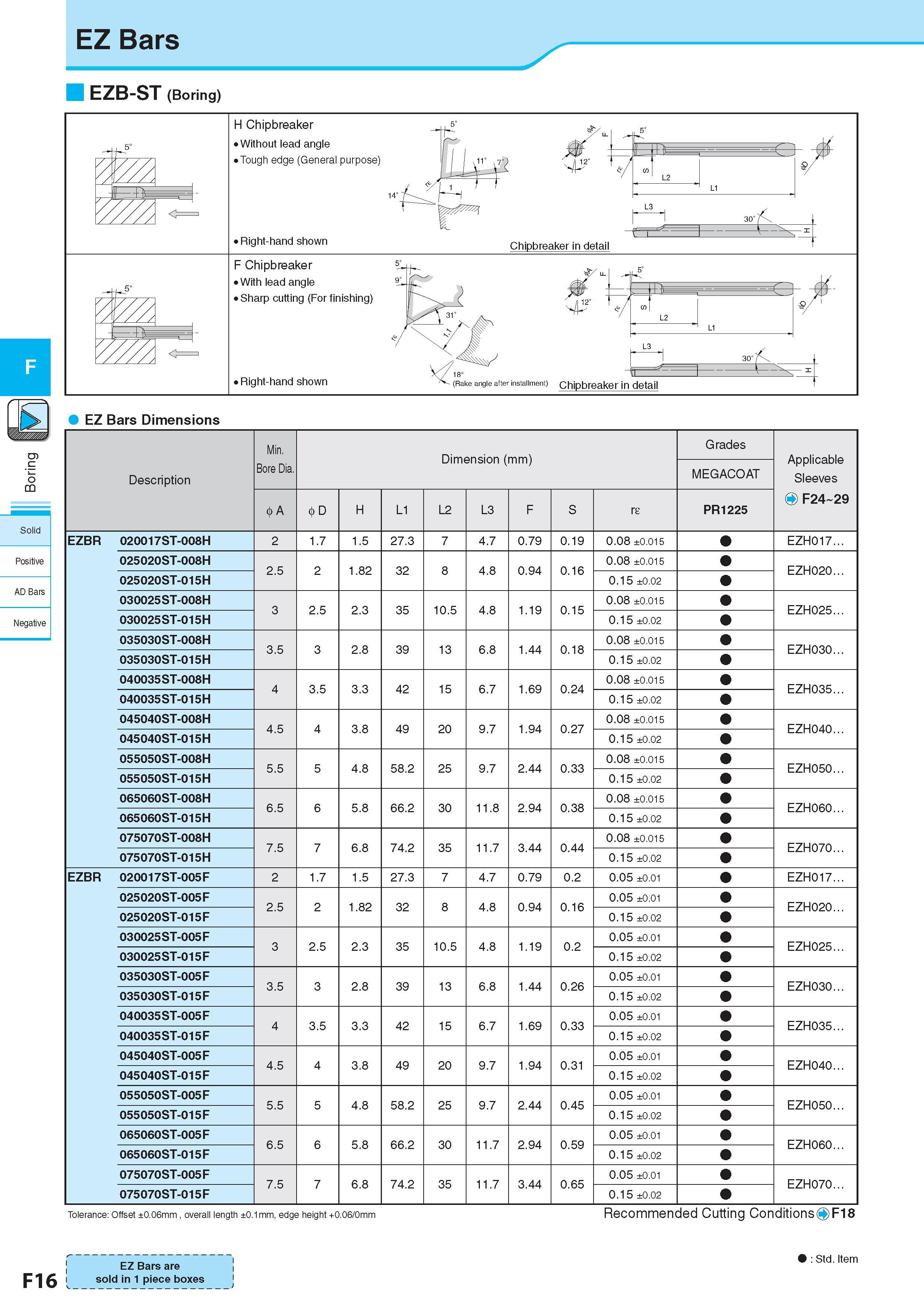

EZ Bars c <5 co Solid Positive AD Bars Negative F16 EZB-ST (Boring) H Chipbreaker Стружколом сменной пластины Without lead angle Tough edge (General purpose) Показано правое исполнение инструмента F Chipbreaker Стружколом сменной пластины With lead angle Sharp cutting (For finishing) Показано правое исполнение инструмента EZ Bars Dimensions Description Обозначение Min. Bore Dia. Dimension (mm) Размеры в мм Grades Applicable Sleeves O F24 29 MEGACOAT A D H L1 L2 L3 F S re PR1225 EZBR 020017ST-008H 2 1.7 1.5 27.3 7 4.7 0.79 0.19 0.08 ±0.015 EZH017... 025020ST-008H 2.5 2 1.82 32 8 4.8 0.94 0.16 0.08 ±0.015 EZH020... 025020ST-015H 0.15 ±0.02 030025ST-008H 3 2.5 2.3 35 10.5 4.8 1.19 0.15 0.08 ±0.015 EZH025... 030025ST-015H 0.15 ±0.02 035030ST-008H 3.5 3 2.8 39 13 6.8 1.44 0.18 0.08 ±0.015 EZH030... 035030ST-015H 0.15 ±0.02 040035ST-008H 4 3.5 3.3 42 15 6.7 1.69 0.24 0.08 ±0.015 EZH035... 040035ST-015H 0.15 ±0.02 045040ST-008H 4.5 4 3.8 49 20 9.7 1.94 0.27 0.08 ±0.015 EZH040... 045040ST-015H 0.15 ±0.02 055050ST-008H 5.5 5 4.8 58.2 25 9.7 2.44 0.33 0.08 ±0.015 EZH050... 055050ST-015H 0.15 ±0.02 065060ST-008H 6.5 6 5.8 66.2 30 11.8 2.94 0.38 0.08 ±0.015 EZH060... 065060ST-015H 0.15 ±0.02 075070ST-008H 7.5 7 6.8 74.2 35 11.7 3.44 0.44 0.08 ±0.015 EZH070... 075070ST-015H 0.15 ±0.02 EZBR 020017ST-005F 2 1.7 1.5 27.3 7 4.7 0.79 0.2 0.05 ±0.01 EZH017... 025020ST-005F 2.5 2 1.82 32 8 4.8 0.94 0.16 0.05 ±0.01 EZH020... 025020ST-015F 0.15 ±0.02 030025ST-005F 3 2.5 2.3 35 10.5 4.8 1.19 0.2 0.05 ±0.01 EZH025... 030025ST-015F 0.15 ±0.02 035030ST-005F 3.5 3 2.8 39 13 6.8 1.44 0.26 0.05 ±0.01 EZH030... 035030ST-015F 0.15 ±0.02 040035ST-005F 4 3.5 3.3 42 15 6.7 1.69 0.33 0.05 ±0.01 EZH035... 040035ST-015F 0.15 ±0.02 045040ST-005F 4.5 4 3.8 49 20 9.7 1.94 0.31 0.05 ±0.01 EZH040... 045040ST-015F 0.15 ±0.02 055050ST-005F 5.5 5 4.8 58.2 25 9.7 2.44 0.45 0.05 ±0.01 EZH050... 055050ST-015F 0.15 ±0.02 065060ST-005F 6.5 6 5.8 66.2 30 11.7 2.94 0.59 0.05 ±0.01 EZH060... 065060ST-015F 0.15 ±0.02 075070ST-005F 7.5 7 6.8 74.2 35 11.7 3.44 0.65 0.05 ±0.01 EZH070... 075070ST-015F 0.15 ±0.02 Tolerance: Offset ±0.06mm , overall length ±0.1mm, edge height +0.06/0mm Recommended Cutting Conditions Рекомендованные режимы резания на станкахO F18 EZ Bars are sold in 1 piece boxes : Std. Item
