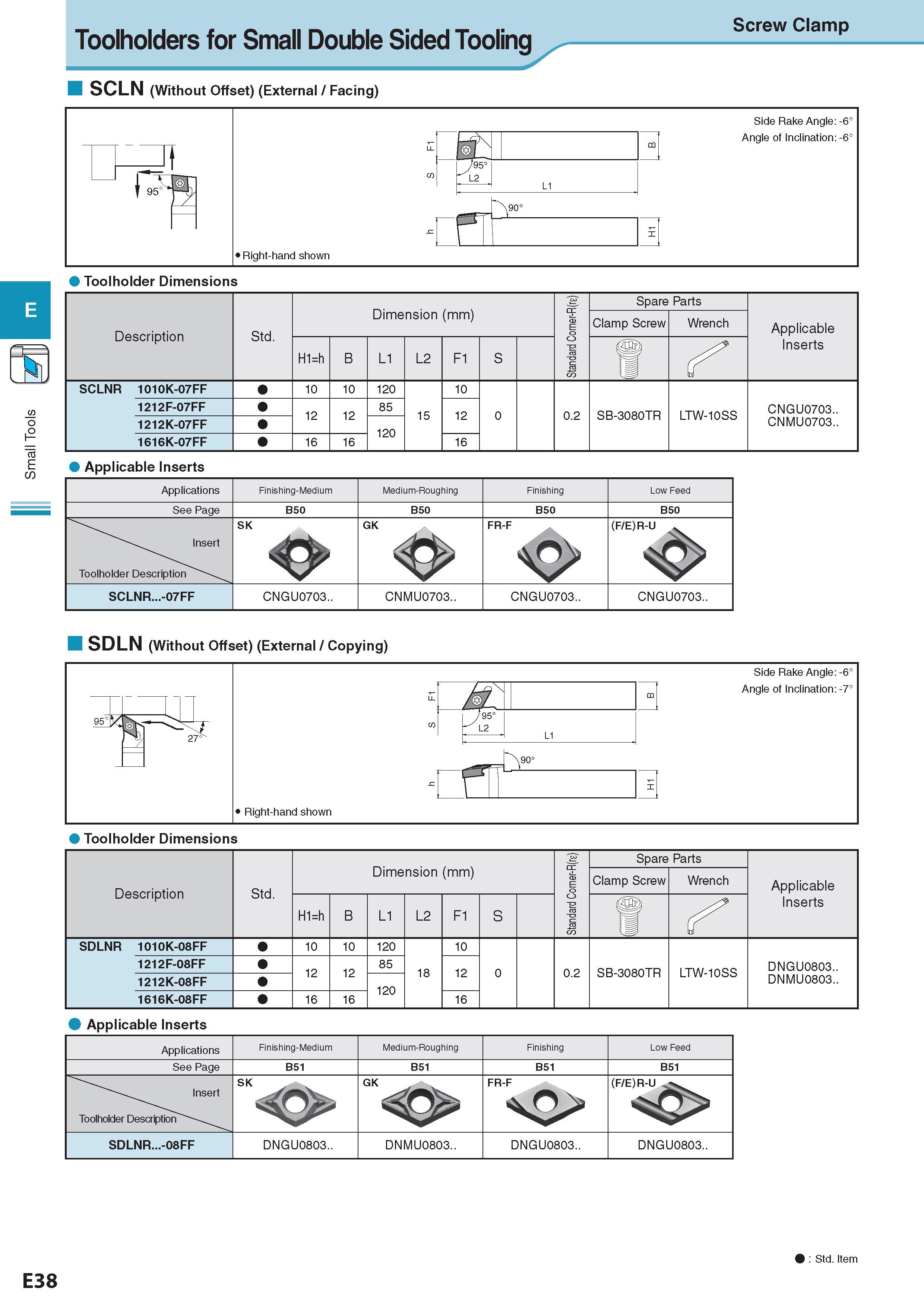

Small Tools Toolholders for Small Double Sided Tooling Screw Clamp SCLN (Without Offset) (External / Facing) Toolholder Dimensions Standard Corner-R(re) Spare Parts Description Обозначение Std. Dimension (mm) Размеры в мм Clamp Screw Wrench Applicable H1=h B L1 L2 F1 S Inserts SCLNR 1010K-07FF 10 10 120 10 1212F-07FF 12 12 85 15 12 0 0.2 SB-3080TR LTW-10SS CNGU0703.. 1212K-07FF 120 CNMU0703.. 1616K-07FF 16 16 16 Applicable Inserts Applications Finishing-Medium Medium-Roughing Finishing Low Feed See Page B50 B50 B50 B50 Insert Toolholder Description'"'-. SK GK FR-F (F/E) R-U - SCLNR...-07FF CNGU0703.. CNMU0703.. CNGU0703.. CNGU0703.. SDLN (Without Offset) (External / Copying) Toolholder Dimensions Applicable Inserts Applications Finishing-Medium Medium-Roughing Finishing Low Feed See Page B51 B51 B51 B51 Insert Toolholder Description Обозначение SK GK . FR-F (F/E) R-U SDLNR...-08FF DNGU0803.. DNMU0803.. DNGU0803.. DNGU0803.. E38 : Std. Item
