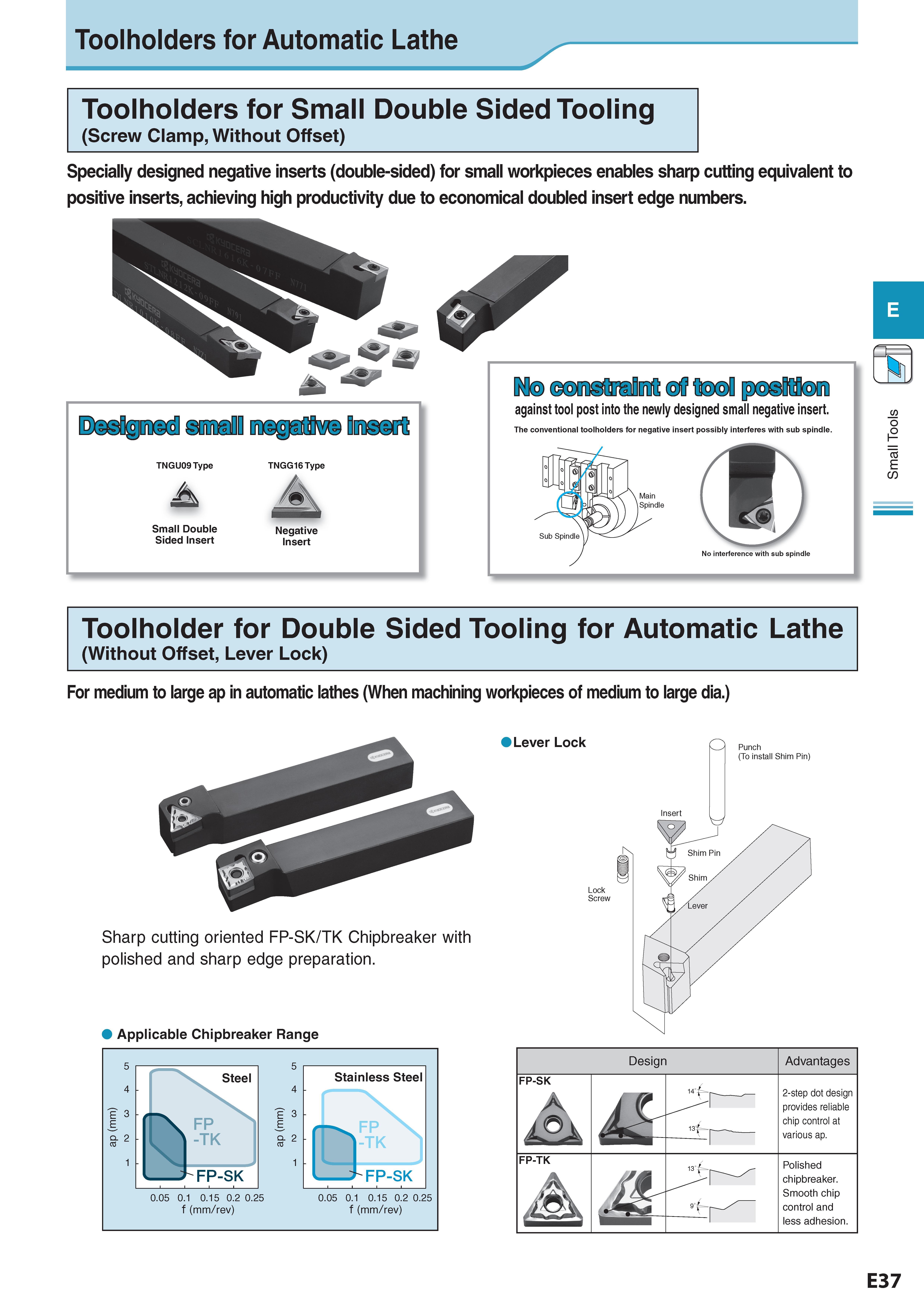

Toolholders for Automatic Lathe Toolholders for Small Double Sided Tooling (Screw Clamp, Without Offset) Specially designed negative inserts (double-sided) for small workpieces enables sharp cutting equivalent to positive inserts, achieving high productivity due to economical doubled insert edge numbers. No constraint of tool position against tool post into the newly designed small negative insert. The conventional toolholders for negative insert possibly interferes with sub spindle. v Main \Spindle No interference with sub spindle V I -L/ Toolholder for Double Sided Tooling for Automatic Lathe (Without Offset, Lever Lock) For medium to large ap in automatic lathes (When machining workpieces of medium to large dia.) Sharp cutting oriented FP-SK/TK Chipbreaker Стружколом сменной пластины with polished and sharp edge preparation. Applicable Chipbreaker Стружколом сменной пластины Range 5 4 1= 3 jz £ 2 1 Steel 0. - FP-SK 5 4 1= 3 jz £ 2 1 Stainless Steel 0.05 0.1 0.15 0.2 0.25 f (mm/rev) 0.05 0.1 0.15 0.2 0.25 f (mm/rev) Design FP-SK FP-TK Advantages 2-step dot design provides reliable chip control at various ap. Polished chipbreaker. Smooth chip control and less adhesion. Sub Spindle E37 Small Tools
