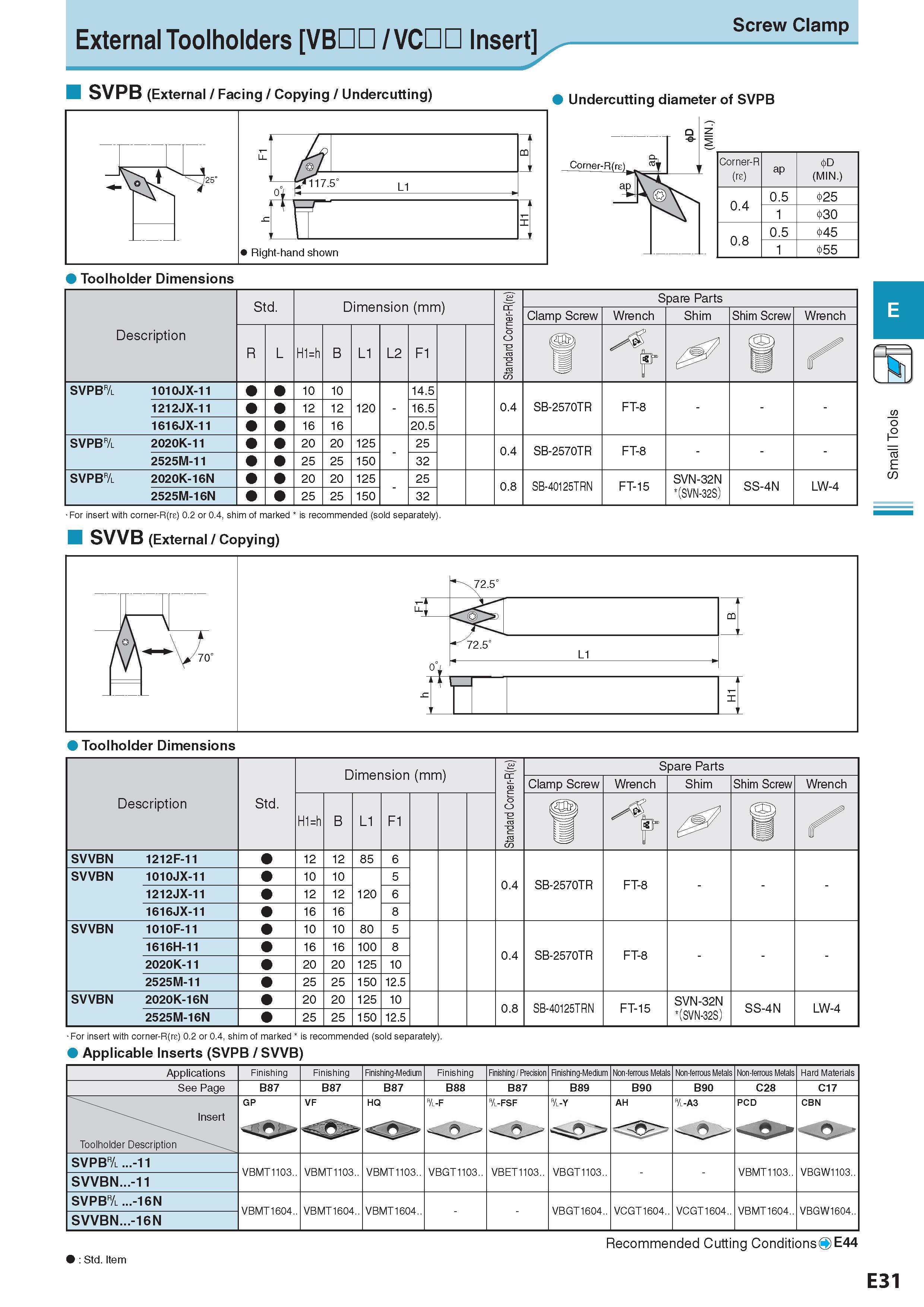

External Toolholders VB££ / VC Insert Screw Clamp SVPB (External / Facing / Copying / Undercutting) Undercutting diameter of SVPB Corner-R (re) ap (MIN.) 0.4 0.5 25 1 30 0.8 0.5 M5 1 55 Toolholder Dimensions SVVB (External / Copying) Toolholder Dimensions Description Обозначение Std. Dimension (mm) Размеры в мм Standard Corner-R(re) Spare Parts Clamp Screw Wrench Shim Shim Screw Wrench H1=h B L1 F1 u 1 if''" SVVBN 1212F-11 12 12 85 6 0.4 SB-2570TR FT-8 - SVVBN 1010JX-11 10 10 120 5 1212JX-11 12 12 6 1616JX-11 16 16 8 SVVBN 1010F-11 10 10 80 5 0.4 SB-2570TR FT-8 - 1616H-11 16 16 100 8 2020K-11 20 20 125 10 2525M-11 25 25 150 12.5 SVVBN 2020K-16N 20 20 125 10 0.8 SB-40125TRN FT-15 SVN-32N (SVN-32S) SS-4N LW-4 2525M-16N 25 25 150 12.5 For insert with corner-R(rs) 0.2 or 0.4, shim of marked is recommended (sold separately). Applicable Inserts (SVPB / SVVB Applications Finishing Finishing Finishing-Medium Finishing Finishing / Precision Finishing-Medium Non-ferrous Metals Non-ferrous Metals Non-ferrous Metals Hard Materials See Page B87 B87 B87 B88 B87 B89 B90 B90 C28 C17 Insert Toolholder Description Обозначение GP VF HQ &-F &-FSF &-Y AH &-A3 PCD CBN - SVPB& ...-11 SVVBN...-11 VBMT1103.. VBMT1103.. VBMT1103.. VBGT1103.. VBET1103.. VBGT1103.. VBMT1103.. VBGW1103.. SVPB& ...-16N SVVBN...-16N VBMT1604.. VBMT1604.. VBMT1604.. VBGT1604.. VCGT1604.. VCGT1604.. VBMT1604.. VBGW1604.. : Std. Item Стандартная позиция Recommended Cutting Conditions Рекомендованные режимы резания на станкахO E44 E31 Small Tools
