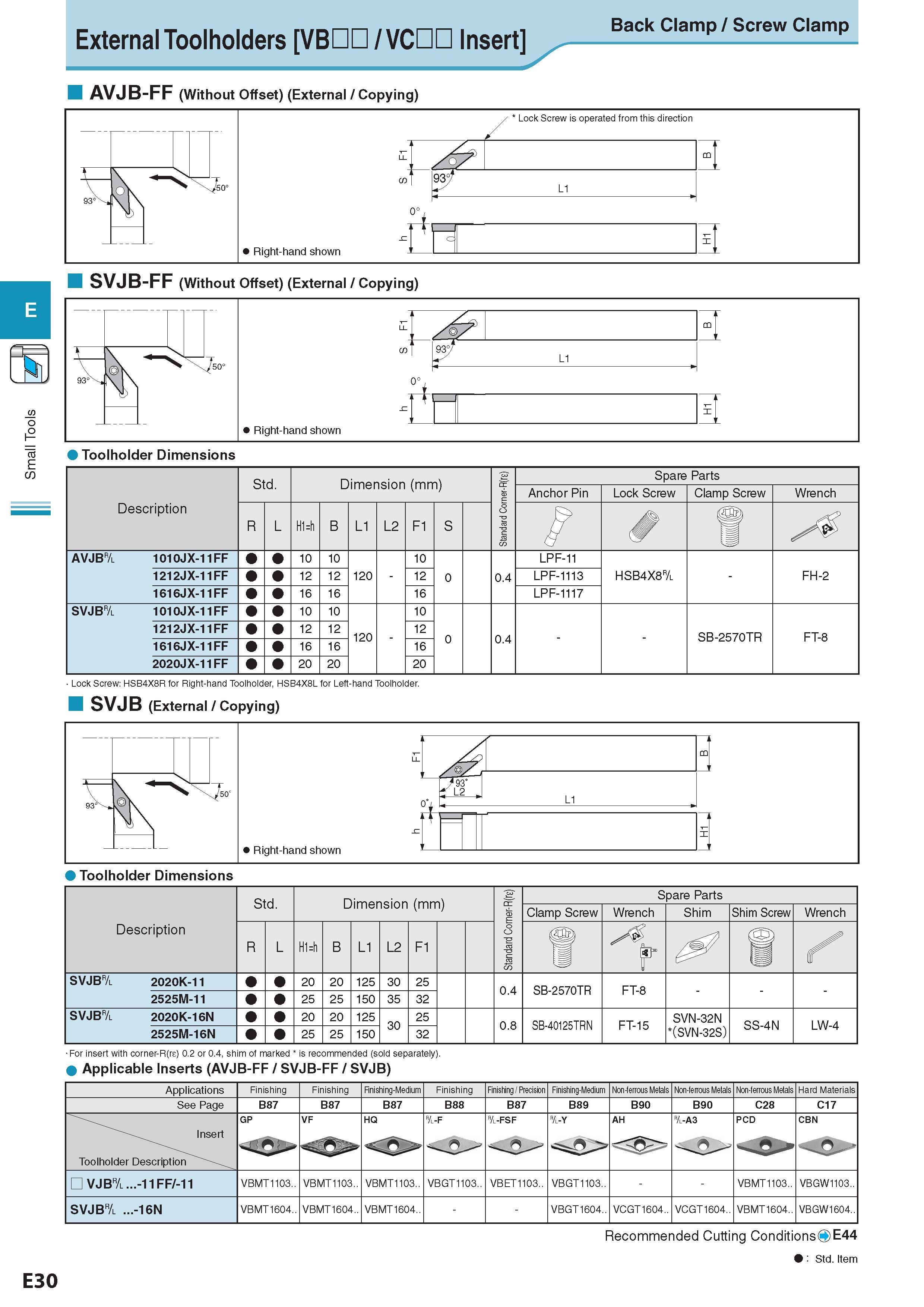

Small Tools External Toolholders VB££ / VC Insert Back Clamp / Screw Clamp AVJB-FF (Without Offset) (External / Copying) SVJB-FF (Without Offset) (External / Copying) Toolholder Dimensions Lock Screw: HSB4X8R for Right-hand Toolholder, HSB4X8L for Left-hand Toolholder. SVJB (External / Copying) Toolholder Dimensions Std. Dimension (mm) Размеры в мм Standard Corner-R(re) Spare Parts Clamp Screw Wrench Shim Shim Screw Wrench Description Обозначение R L H1=h B L1 L2 F1 (Cg ) r 1 , SVJB& 2020K-11 20 20 125 30 25 0.4 SB-2570TR FT-8 2525M-11 25 25 150 35 32 SVJB& 2020K-16N 20 20 125 30 25 0.8 SB-40125TRN FT-15 SVN-32N SS-4N LW-4 2525M-16N 25 25 150 32 (SVN-32S) For insert with corner-R(rs) 0.2 or 0.4, shim of marked is recommended (sold separately). Applicable Inserts (AVJB-FF / SVJB-FF / SVJB) Applications Finishing Finishing Finishing-Medium Finishing Finishing / Precision Finishing-Medium Non-ferrous Metals Non-feirous Metals Non-ferrous Metals Hard Materials See Page B87 B87 B87 B88 B87 B89 B90 B90 C28 C17 Insert Toolholder Description Обозначение ''''\ GP VF HQ r/l-F r/l-FSF r/l-Y AH 7l-A3 PCD CBN VJB& ...-11FF/-11 VBMT1103.. VBMT1103.. VBMT1103.. VBGT1103.. VBET1103.. VBGT 1103.. VBMT1103.. VBGW1103.. SVJB& ...-16N VBMT1604.. VBMT1604.. VBMT1604.. VBGT1604.. VCGT1604.. VCGT1604.. VBMT1604.. VBGW1604.. Recommended Cutting Conditions Рекомендованные режимы резания на станкахO E44 : Std. Item Стандартная позиция E30
