236 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.E20

Каталог KYOCERA 2017 Инструмент режущий Стр. E20 0236 Lab2u

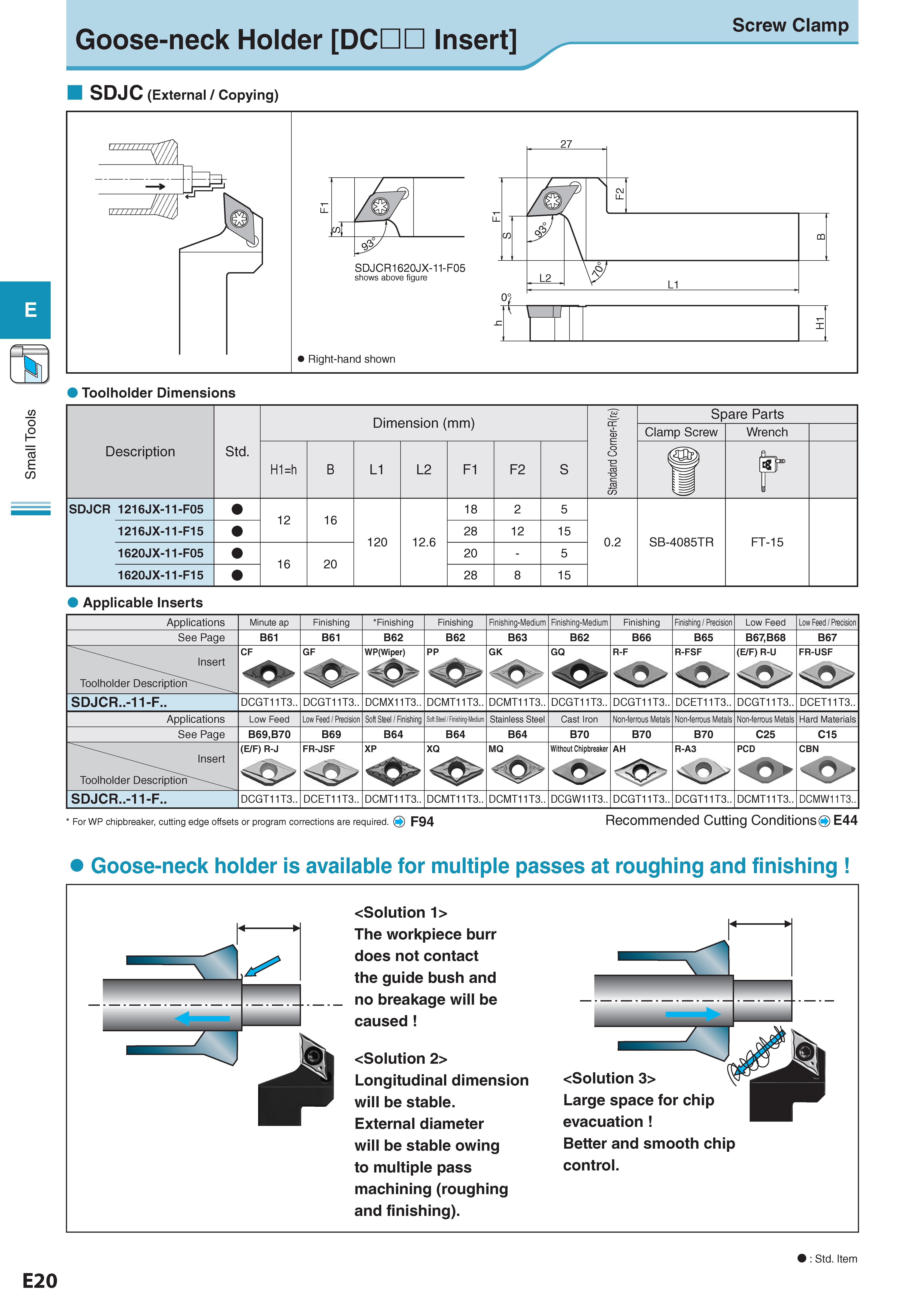

Small Tools Goose-neck Holder DODD Insert Screw Clamp SDJC (External / Copying) Dimension (mm) Размеры в мм Standard Corner-R(re) Spare Parts Clamp Screw Wrench Description Обозначение Std. H1=h B L1 L2 F1 F2 S SDJCR 1216JX-11-F05 12 16 18 2 5 1216JX-11-F15 120 12.6 28 12 15 0.2 SB-4085TR FT-15 1620JX-11-F05 16 20 20 - 5 1620JX-11-F15 28 8 15 Applicable Inserts Applications Minute ap Finishing Finishing Finishing Finishing-Medium Finishing-Medium Finishing Finishing / Precision Low Feed Low Feed / Precision See Page B61 B61 B62 B62 B63 B62 B66 B65 B67,B68 B67 Insert Toolholder Description Обозначение CF GF WP(Wiper) PP GK GQ R-F R-FSF (E/F) R-U S> FR-USF SDJCR..-11-F.. DCGT11T3.. DCGT11T3.. DCMX11T3.. DCMT11T3.. DCMT11T3.. DCGT11T3.. DCGT11T3.. DCET11T3.. DCGT11T3.. DCET11T3.. Applications Low Feed Low Feed / Precision Soft Steel / Finishing Soft Steel/Finishing-Medium Stainless Steel Cast Iron Non-ferrous Metals Non-ferrous Metals Non-ferrous Metals Hard Materials See Page B69,B70 B69 B64 B64 B64 B70 B70 B70 C25 C15 Insert Toolholder Description Обозначение (E/F) R-J FR-JSF XP XQ MQ Without Chipbreaker Стружколом сменной пластины AH R-A3 PCD CBN < SDJCR..-11-F.. DCGT11T3.. DCET11T3.. DCMT11T3.. DCMT11T3.. DCMT11T3.. DCGW11T3.. DCGT11T3.. DCGT11T3.. DCMT11T3.. DCMW11T3.. For WP chipbreaker, cutting edge offsets or program corrections are required. F94 Recommended Cutting Conditions Рекомендованные режимы резания на станках E44 Goose-neck holder is available for multiple passes at roughing and finishing The workpiece burr does not contact the guide bush and no breakage will be caused Longitudinal dimension will be stable. External diameter will be stable owing to multiple pass machining (roughing and finishing). Large space for chip evacuation Better and smooth chip control. : Std. Item Стандартная позиция E20
