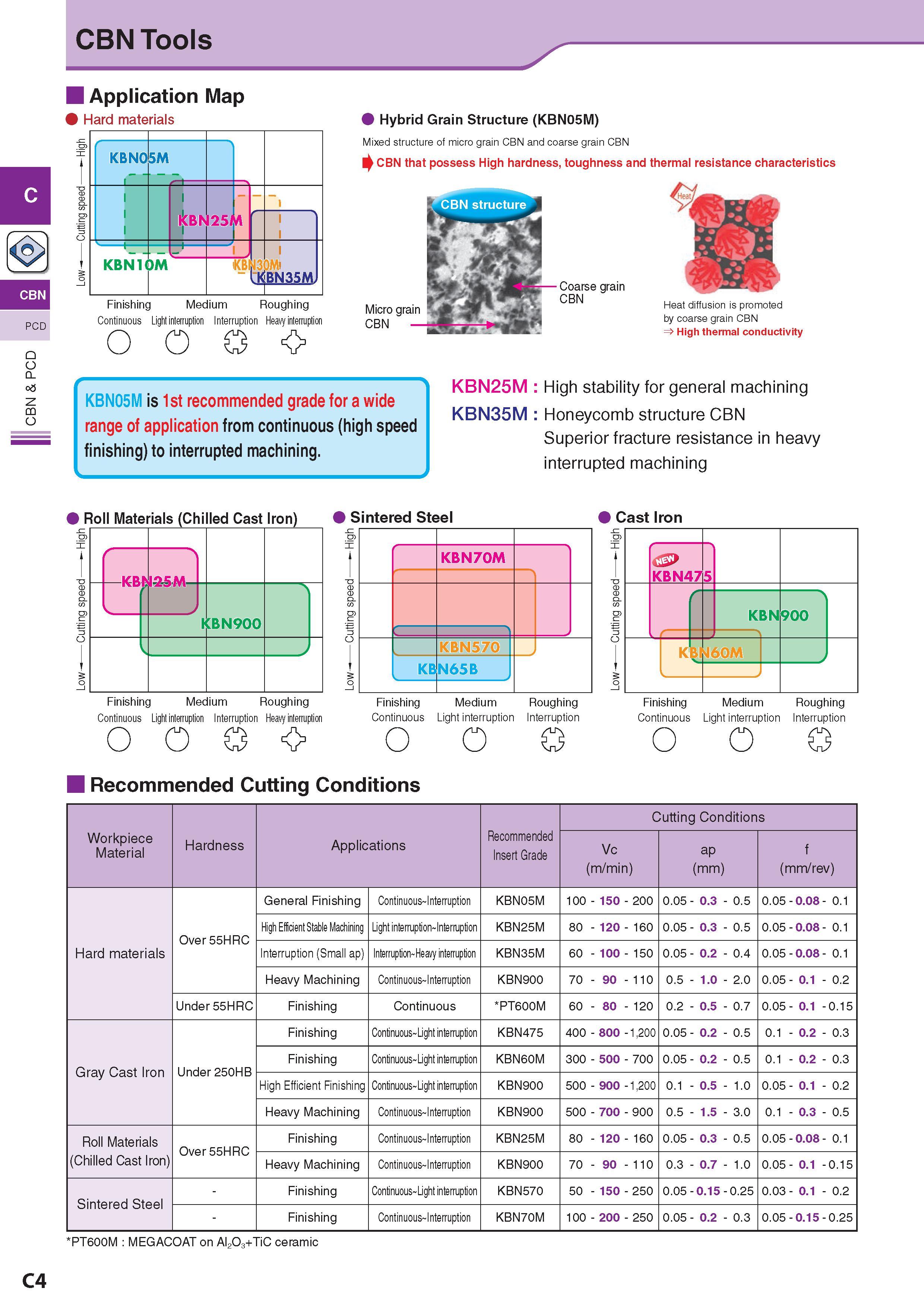

PCD CBN & PCD CBN Tools C CBN Application Map Hard materials £Z t= O o Continuous Light interruption Interruption Heavy interruption <> KBN0 5M i i i i Kbn I25M A I 1 KBNH >M i i KB N3 ,K l 0Mi BN35M Finishing Medium Roughing Hybrid Grain Structure (KBN05M) Mixed structure of micro grain CBN and coarse grain CBN CBN that possess High hardness, toughness and thermal resistance characteristics KBN05M is 1st recommended grade for a wide range of application from continuous (high speed finishing) to interrupted machining. KBN25M : High stability for general machining KBN35M : Honeycomb structure CBN Superior fracture resistance in heavy interrupted machining Roll Materials (Chi KBN25M- led Cast Iron) Sintered Steel Cast Iron KBN900 Finishing Medium Roughing Continuous Light interruption Interruption Heavy interruption =0= KBN70M KBN570 KB N65B Finishing Medium Roughing Continuous Light interruption Interruption o o Finishing Medium Roughing Continuous Light interruption Interruption o o Recommended Cutting Conditions Рекомендованные режимы резания на станках Workpiece Material Обрабатываемый материал Hardness Applications Recommended Insert Grade Cutting Conditions Vc (m/min) ap (mm) f (mm/rev) Hard materials Over 55HRC General Finishing Continuous-Interruption KBN05M 100 - 150 - 200 0.05- 0.3 - 0.5 0.05- 0.08 - 0.1 High Efficient Stable Machining Light interruption-Interruption KBN25M 80 - 120 - 160 0.05- 0.3 - 0.5 0.05- 0.08 - 0.1 Interruption (Small ap) Interruption-Heavy interruption KBN35M 60 - 100 - 150 0.05- 0.2 - 0.4 0.05- 0.08 - 0.1 Heavy Machining Continuous-Interruption KBN900 70 - 90 - 110 0.5 - 1.0 - 2.0 0.05- 0.1 - 0.2 Under 55HRC Finishing Continuous PT600M 60 - 80 - 120 0.2 - 0.5 - 0.7 0.05- 0.1 -0.15 Gray Cast Iron Under 250HB Finishing Continuous-Light interruption KBN475 400 - 800 -1,200 0.05- 0.2 - 0.5 0.1 - 0.2 - 0.3 Finishing Continuous-Light interruption KBN60M 300 - 500 - 700 0.05- 0.2 - 0.5 0.1 - 0.2 - 0.3 High Efficient Finishing Continuous-Light interruption KBN900 500 - 900 -1,200 0.1 - 0.5 - 1.0 0.05- 0.1 - 0.2 Heavy Machining Continuous-Interruption KBN900 500 - 700 - 900 0.5 - 1.5 - 3.0 0.1 - 0.3 - 0.5 Roll Materials (Chilled Cast Iron) Over 55HRC Finishing Continuous-Interruption KBN25M 80 - 120 - 160 0.05- 0.3 - 0.5 0.05- 0.08 - 0.1 Heavy Machining Continuous-Interruption KBN900 70 - 90 - 110 0.3 - 0.7 - 1.0 0.05- 0.1 -0.15 Sintered Steel - Finishing Continuous-Light interruption KBN570 50 - 150 - 250 0.05- 0.15 -0.25 0.03- 0.1 - 0.2 - Finishing Continuous-Interruption KBN70M 100 - 200 - 250 0.05- 0.2 - 0.3 0.05- 0.15 -0.25 PT600M : MEGACOAT on Al2O3+TiC ceramic C4
