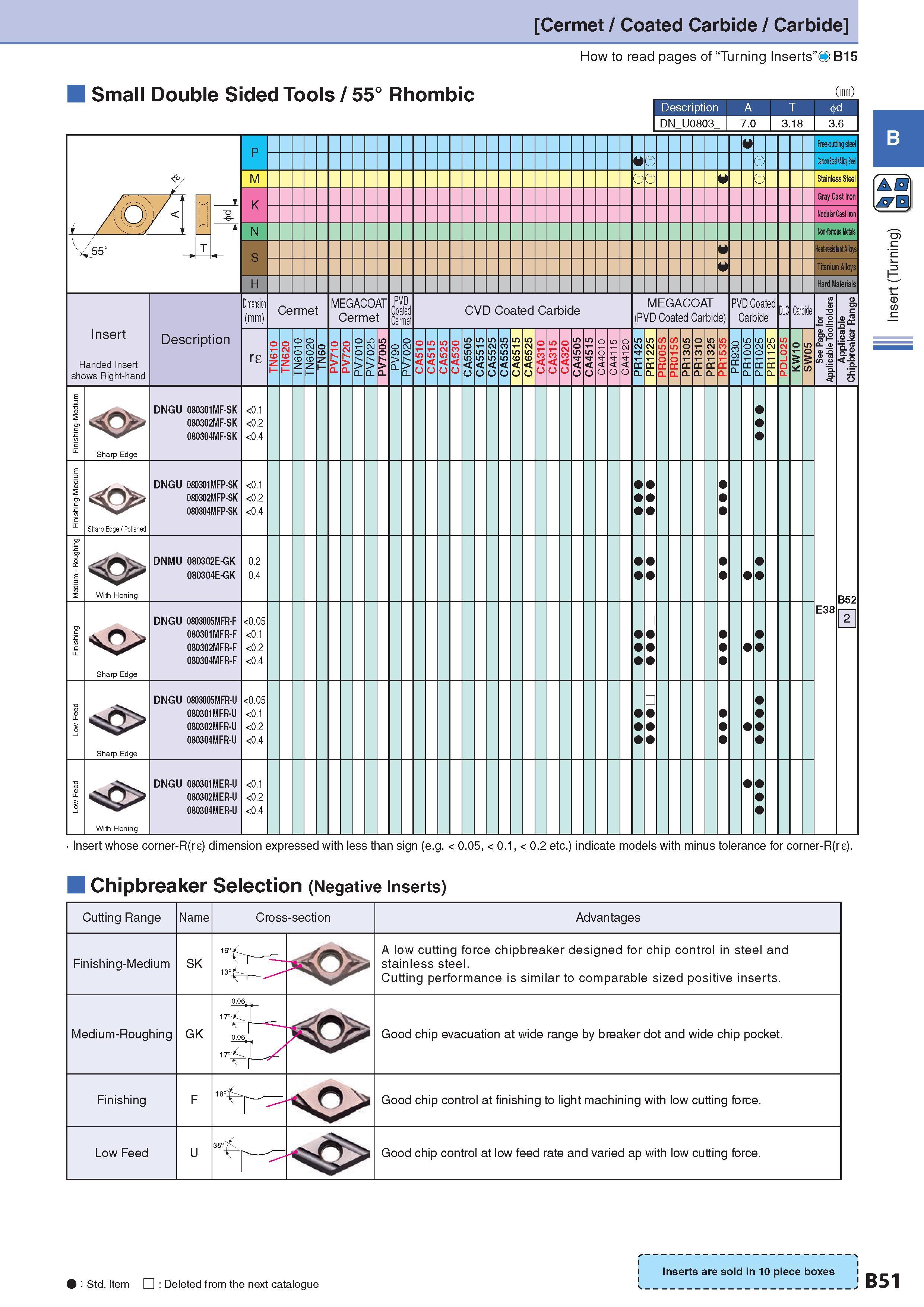

Cermet / Coated Carbide / Carbide Small Double Sided Tools / 55° Rhombic How to read pages of “Turning Inserts”0 B15 (mm) Description Обозначение DN U0803 7.0 3.18 3.6 Insert Handed Insert shows Right-hand O Sharp Edge Sharp Edge / Polished With Honing Sharp Edge With Honing Description Обозначение DNGU 080301MF-SK 080302MF-SK 080304MF-SK DNGU 080301MFP-SK 080302MFP-SK 080304MFP-SK DNMU 080302E-GK 080304E-GK DNGU 0803005MFR-F 080301MFR-F 080302MFR-F 080304MFR-F DNGU 0803005MFR-U 080301MFR-U 080302MFR-U 080304MFR-U DNGU 080301MER-U 080302MER-U 080304MER-U M Dimension (mm) Размеры в мм re <0.1 <0.2 <0.4 <0.1 <0.2 <0.4 <0.05 <0.1 <0.2 <0.4 <0.05 <0.1 <0.2 <0.4 <0.1 <0.2 <0.4 Cermet MEGACOAT Cermet PVD Coated Cermet Q O CVD Coated Carbide Q MEGACOAT (PVD Coated Carbide) Q PVD Coated Carbide DLC Heat-resis nt Alloys Carbide Free-cutting steel Carbon Steel /Alloy Steel Stainless Steel Gray Cast Iron Nodular Cast Iron Non-ferrous Metals Titanium Alloys Hard Materials 2 c > 1 & £ . iS - a> E38 B52 AD JTB e s Insert whose corner-R(r e) dimension expressed with less than sign (e.g. < 0.05, < 0.1, < 0.2 etc.) indicate models with minus tolerance for corner-R(r e). Chipbreaker Стружколом сменной пластины Selection (Negative Inserts) A T B P K N S H Sharp Edge Cutting Range Name Cross-section Advantages Finishing-Medium SK ,6° o A low cutting force chipbreaker designed for chip control in steel and stainless steel. Cutting performance is similar to comparable sized positive inserts. Medium-Roughing GK 0.06 ,7° - 0.06 Good chip evacuation at wide range by breaker dot and wide chip pocket. Finishing F 18° Good chip control at finishing to light machining with low cutting force. Low Feed U Good chip control at low feed rate and varied ap with low cutting force. 0 : Std. Item Стандартная позиция : Deleted from the next catalogue Указанная позиция будет удалена в следующем каталоге Пластины продаются упаковками по 10 шт. Inserts are sold in 10 piece boxes B51
