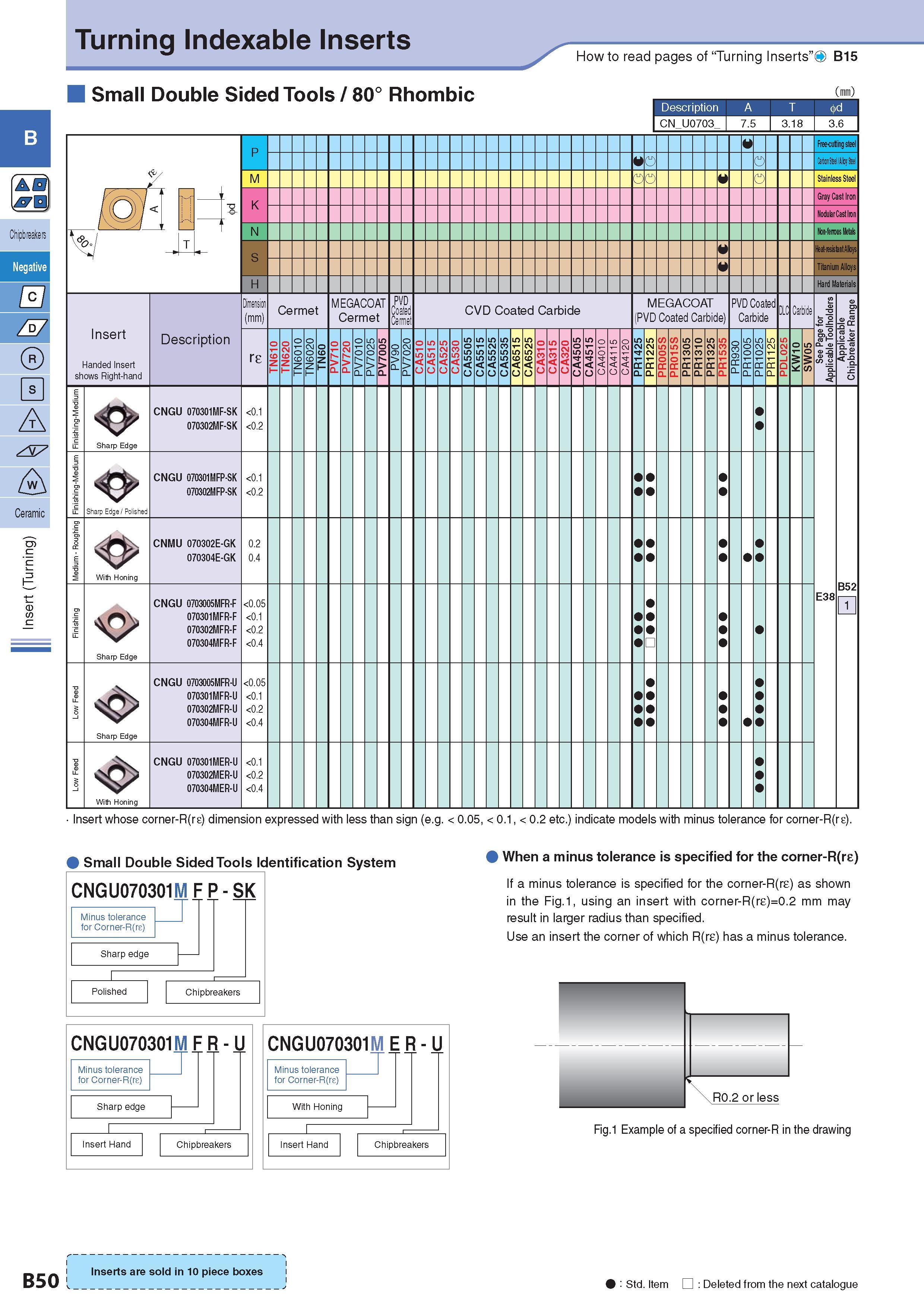

Turning Indexable Inserts Small Double Sided Tools / 80° Rhombic How to read pages of “Turning Inserts”0 B15 (mm) Description Обозначение CN U0703 7.5 3.18 3.6 Cl-f Q O Free-cutting steel Carbon Steel /Alby Steel Stainless Steel Gray Cast Iron Nodular Cast Iron Non-fenous Metals Heat-iesistant Alloys Titanium Alloys Hard Materials Insert Handed Insert shows Right-hand Dimension (mm) Размеры в мм Cermet MEGACOAT Cermet PVD Coated Cermet CVD Coated Carbide MEGACOAT (PVD Coated Carbide) PVD Coated Carbide DLC Caibide Description Обозначение r e Sharp Edge CNGU 070301MF-SK 070302MF-SK <0.1 <0.2 Sharp Edge / Polishec CNGU 070301MFP-SK 070302MFP-SK <0.1 <0.2 CNMU 070302E-GK 070304E-GK With Honing CNGU 0703005MFR-F 070301MFR-F 070302MFR-F 070304MFR-F <0.05 <0.1 <0.2 <0.4 E38 B52 m Sharp Edge CNGU 0703005MFR-U 070301MFR-U 070302MFR-U 070304MFR-U <0.05 <0.1 <0.2 <0.4 CNGU 070301MER-U 070302MER-U 070304MER-U <0.1 <0.2 <0.4 Insert whose corner-R(r e) dimension expressed with less than sign (e.g. < 0.05, < 0.1, < 0.2 etc.) indicate models with minus tolerance for corner-R(r e). Small Double Sided Tools Identification System CNGU070301M F P - S Minus tolerance for Corner-R(re) Sharp edge Polished Chipbreakers CNGU070301M F J" Minus tolerance for Corner-R(re) Sharp edge R - U When a minus tolerance is specified for the corner-R(re) If a minus tolerance is specified for the corner-R(re) as shown in the Fig.1, using an insert with corner-R(re)=0.2 mm may result in larger radius than specified. Use an insert the corner of which R(re) has a minus tolerance. CNGU070301M E J" Minus tolerance for Corner-R(re) With Honing R - U Chipbreakers Insert Hand Chipbreakers \R0.2 or less Fig.1 Example of a specified corner-R in the drawing A T B p H Sharp Edge With Honing Insert Hand B50 Пластины продаются упаковками по 10 шт. Inserts are sold in 10 piece boxes 9 : Std. Item Стандартная позиция : Deleted from the next catalogue
