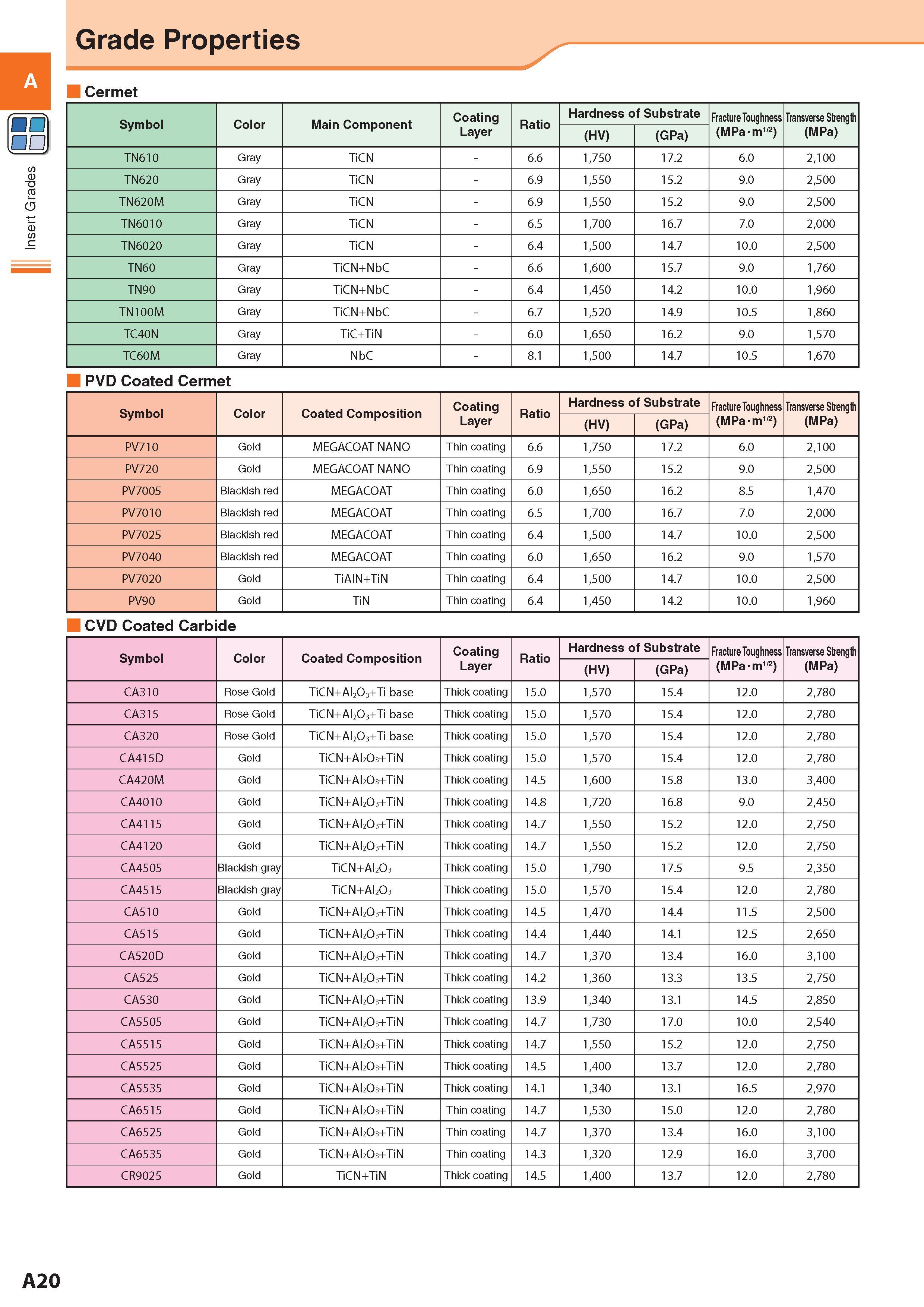

PP Insert Grades Grade Properties Cermet Symbol Color Main Component Coating Layer Ratio Hardness of Substrate Fracture Toughness (MPa-m1/2) Transverse Strength (MPa) (HV) (GPa) TN610 Gray TiCN - 6.6 1,750 17.2 6.0 2,100 TN620 Gray TiCN - 6.9 1,550 15.2 9.0 2,500 TN620M Gray TiCN - 6.9 1,550 15.2 9.0 2,500 TN6010 Gray TiCN - 6.5 1,700 16.7 7.0 2,000 TN6020 Gray TiCN - 6.4 1,500 14.7 10.0 2,500 TN60 Gray TiCN+NbC - 6.6 1,600 15.7 9.0 1,760 TN90 Gray TiCN+NbC - 6.4 1,450 14.2 10.0 1,960 TN100M Gray TiCN+NbC - 6.7 1,520 14.9 10.5 1,860 TC40N Gray TiC+TiN - 6.0 1,650 16.2 9.0 1,570 TC60M Gray NbC - 8.1 1,500 14.7 10.5 1,670 PVD Coated Cermet Symbol Color Coated Composition Coating Layer Ratio Hardness of Substrate Fracture Toughness (MPa-m1/2) Transverse Strength (MPa) (HV) (GPa) PV710 Gold MEGACOAT NANO Thin coating 6.6 1,750 17.2 6.0 2,100 PV720 Gold MEGACOAT NANO Thin coating 6.9 1,550 15.2 9.0 2,500 PV7005 Blackish red MEGACOAT Thin coating 6.0 1,650 16.2 8.5 1,470 PV7010 Blackish red MEGACOAT Thin coating 6.5 1,700 16.7 7.0 2,000 PV7025 Blackish red MEGACOAT Thin coating 6.4 1,500 14.7 10.0 2,500 PV7040 Blackish red MEGACOAT Thin coating 6.0 1,650 16.2 9.0 1,570 PV7020 Gold TiAlN+TiN Thin coating 6.4 1,500 14.7 10.0 2,500 PV90 Gold TiN Thin coating 6.4 1,450 14.2 10.0 1,960 CVD Coated Carbide Symbol Color Coated Composition Coating Layer Ratio Hardness of Substrate Fracture Toughness (MPa-m1/2) Transverse Strength (MPa) (HV) (GPa) CA310 Rose Gold TiCN+Al2O3+Ti base Thick coating 15.0 1,570 15.4 12.0 2,780 CA315 Rose Gold TiCN+Al2Oa+Ti base Thick coating 15.0 1,570 15.4 12.0 2,780 CA320 Rose Gold TiCN+Al2Oa+Ti base Thick coating 15.0 1,570 15.4 12.0 2,780 CA415D Gold TiCN+Al2O3+TiN Thick coating 15.0 1,570 15.4 12.0 2,780 CA420M Gold TiCN+Al2O3+TiN Thick coating 14.5 1,600 15.8 13.0 3,400 CA4010 Gold TiCN+AhO3+TiN Thick coating 14.8 1,720 16.8 9.0 2,450 CA4115 Gold TiCN+AhO3+TiN Thick coating 14.7 1,550 15.2 12.0 2,750 CA4120 Gold TiCN+AhO3+TiN Thick coating 14.7 1,550 15.2 12.0 2,750 CA4505 Blackish gray TiCN+Al2O3 Thick coating 15.0 1,790 17.5 9.5 2,350 CA4515 Blackish gray TiCN+Al2O3 Thick coating 15.0 1,570 15.4 12.0 2,780 CA510 Gold TiCN+AhO3+TiN Thick coating 14.5 1,470 14.4 11.5 2,500 CA515 Gold TiCN+AhO3+TiN Thick coating 14.4 1,440 14.1 12.5 2,650 CA520D Gold TiCN+AhO3+TiN Thick coating 14.7 1,370 13.4 16.0 3,100 CA525 Gold TiCN+AhO3+TiN Thick coating 14.2 1,360 13.3 13.5 2,750 CA530 Gold TiCN+AhO3+TiN Thick coating 13.9 1,340 13.1 14.5 2,850 CA5505 Gold TiCN+AhO3+TiN Thick coating 14.7 1,730 17.0 10.0 2,540 CA5515 Gold TiCN+Al2O3+TiN Thick coating 14.7 1,550 15.2 12.0 2,750 CA5525 Gold TiCN+Al2O3+TiN Thick coating 14.5 1,400 13.7 12.0 2,780 CA5535 Gold TiCN+Al2O3+TiN Thick coating 14.1 1,340 13.1 16.5 2,970 CA6515 Gold TiCN+Al2O3+TiN Thin coating 14.7 1,530 15.0 12.0 2,780 CA6525 Gold TiCN+Al2O3+TiN Thin coating 14.7 1,370 13.4 16.0 3,100 CA6535 Gold TiCN+Al2O3+TiN Thin coating 14.3 1,320 12.9 16.0 3,700 CR9025 Gold TiCN+TiN Thick coating 14.5 1,400 13.7 12.0 2,780 A20
