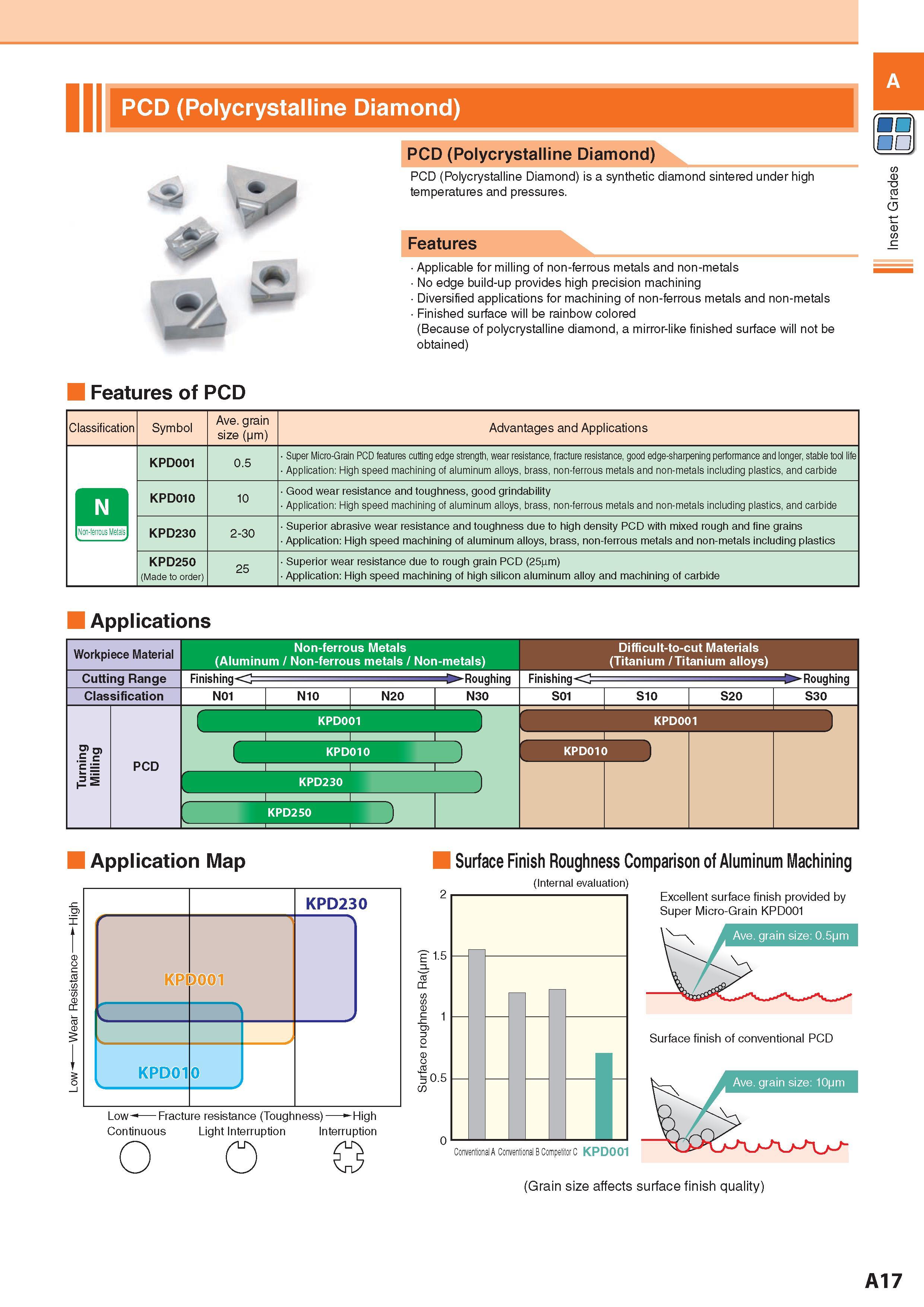

PCD (Polycrystalline Diamond) PCD (Polycrystalline Diamond) PCD (Polycrystalline Diamond) is a synthetic diamond sintered under high temperatures and pressures. Features Applicable for milling of non-ferrous metals and non-metals No edge build-up provides high precision machining Diversified applications for machining of non-ferrous metals and non-metals Finished surface will be rainbow colored (Because of polycrystalline diamond, a mirror-like finished surface will not be obtained) Features of PCD Classification Symbol Ave. grain size ( jm) Advantages and Applications H iNon-ferrous Metals KPD001 0.5 Super Micro-Grain PCD features cutting edge strength, wear resistance, fracture resistance, good edge-sharpening performance and longer, stable tool life Application: High speed machining of aluminum alloys, brass, non-ferrous metals and non-metals including plastics, and carbide KPD010 10 Good wear resistance and toughness, good grindability Application: High speed machining of aluminum alloys, brass, non-ferrous metals and non-metals including plastics, and carbide KPD230 2-80 Superior abrasive wear resistance and toughness due to high density PCD with mixed rough and fine grains Application: High speed machining of aluminum alloys, brass, non-ferrous metals and non-metals including plastics KPD250 (Made to order) 25 Superior wear resistance due to rough grain PCD (25 im) Application: High speed machining of high silicon aluminum alloy and machining of carbide Applications Workpiece Material Обрабатываемый материал Non-ferrous Metals (Aluminum / Non-ferrous metals / Non-metals) Difficult-to-cut Materials (Titanium / Titanium alloys) Application Map Low Fracture resistance (Toughness) High Continuous Light Interruption Interruption G Surface Finish Roughness Comparison of Aluminum Machining (Internal evaluation) Excellent surface finish provided by Super Micro-Grain KPD001 1=1.5 a cc CT) u or e c a 5 0.5 J Surface finish of conventional PCD Conventional A Conventional B Competitor C KPD001 (Grain size affects surface finish quality) 0 A17 Insert Grades
