10 Каталог KYOCERA 2016 Твердосплавный вращающийся режущий инструмент ENG Стр.8

Catalog KYOCERA 2016 Solid carbide cutting tools Стр. 8 0010 ENG Lab2u

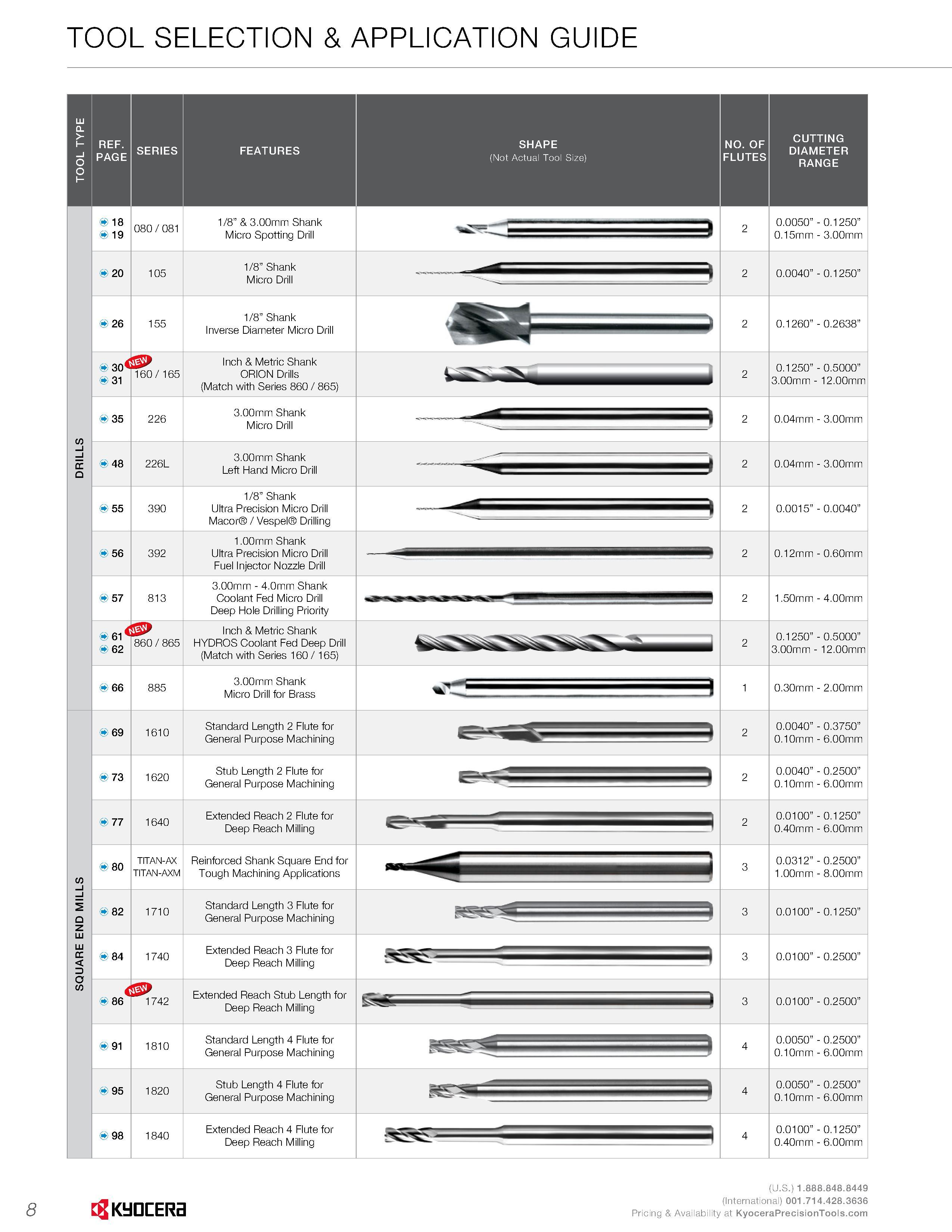

TOOL SELECTION & APPLICATION GUIDE SHAPE (Not Actual Tool Size) NO. OF FLUTES 080 / 081 1/8” & 3.00mm Shank Micro Spotting Drill CUTTING DIAMETER RANGE 0.0050” - 0.1250” 0.15mm - 3.00mm 20 105 1/8” Shank Micro Drill 0.0040” - 0.1250” 26 155 1/8” Shank Inverse Diameter Micro Drill 0.1260” - 0.2638” 30 31 160 / 165 Inch & Metric Shank ORION Drills (Match with Series 860 / 865) 0.1250” - 0.5000” 3.00mm - 12.00mm 226 3.00mm Shank Micro Drill 0.04mm - 3.00mm R D 226L 3.00mm Shank Left Hand Micro Drill 0.04mm - 3.00mm 55 390 1/8”Shank Ultra Precision Micro Drill Macor / Vespel Drilling 0.0015” - 0.0040” 56 392 1.00mm Shank Ultra Precision Micro Drill Fuel Injector Nozzle Drill 0.12mm - 0.60mm 813 3.00mm - 4.0mm Shank Coolant Fed Micro Drill Deep Hole Drilling Priority 1.50mm - 4.00mm 61 62 860 / 865 Inch & Metric Shank HYDROS Coolant Fed Deep Drill (Match with Series 160 / 165) 0.1250” - 0.5000” 3.00mm - 12.00mm 66 885 3.00mm Shank Micro Drill for Brass 0.30mm - 2.00mm 69 1610 Standard Length 2 Flute for General Purpose Machining 0.0040” - 0.3750” 0.10mm - 6.00mm 73 1620 Stub Length 2 Flute for General Purpose Machining 0.0040” - 0.2500” 0.10mm - 6.00mm 77 1640 Extended Reach 2 Flute for Deep Reach Milling 0.0100” - 0.1250” 0.40mm - 6.00mm M D R A U O S 80 82 84 TITAN-AX TITAN-AXM 1710 1740 Reinforced Shank Square End for Tough Machining Applications Standard Length 3 Flute for General Purpose Machining Extended Reach 3 Flute for Deep Reach Milling 0.0312” - 0.2500” 1.00mm - 8.00mm 0.0100” - 0.1250” 0.0100” - 0.2500” 86 91 95 1742 1810 1820 Extended Reach Stub Length for Deep Reach Milling Standard Length 4 Flute for General Purpose Machining Stub Length 4 Flute for General Purpose Machining 0.0100” - 0.2500” 0.0050” - 0.2500” 0.10mm - 6.00mm 0.0050” - 0.2500” 0.10mm - 6.00mm 98 1840 Extended Reach 4 Flute for Deep Reach Milling 0.0100” - 0.1250” 0.40mm - 6.00mm 2 2 2 2 2 2 2 2 2 2 2 2 2 3 3 3 3 4 4 4 (U.S.) (International) 001.714.428.3636 8 Pricing & Availability at
