12 Каталог KYOCERA 2016 Твердосплавный вращающийся режущий инструмент ENG Стр.10

Catalog KYOCERA 2016 Solid carbide cutting tools Стр. 10 0012 ENG Lab2u

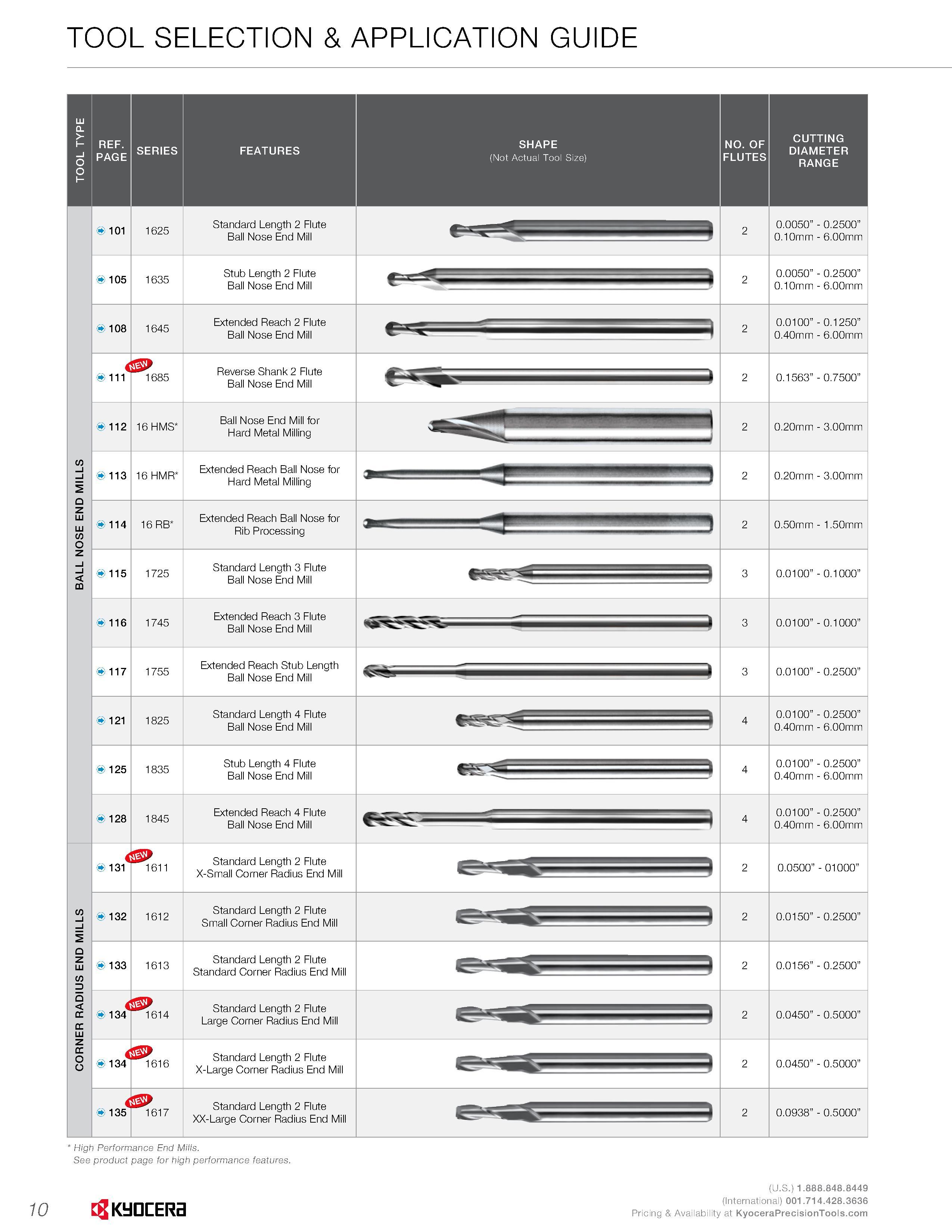

TOOL SELECTION & APPLICATION GUIDE SHAPE (Not Actual Tool Size) i 101 105 1625 1635 Standard Length 2 Flute Ball Nose End Mill Stub Length 2 Flute Ball Nose End Mill NO. OF FLUTES CUTTING DIAMETER RANGE 0.0050” - 0.2500” 0.10mm - 6.00mm 0.0050” - 0.2500” 0.10mm - 6.00mm 108 1645 Extended Reach 2 Flute Ball Nose End Mill 0.0100” - 0.1250” 0.40mm - 6.00mm 111 112 1685 16 HMS Reverse Shank 2 Flute Ball Nose End Mill Ball Nose End Mill for Hard Metal Milling 0.1563” - 0.7500” 0.20mm - 3.00mm M D S O A CQ 113 114 115 116 117 121 16 HMR 16 RB 1725 1745 1755 1825 Extended Reach Ball Nose for Hard Metal Milling Extended Reach Ball Nose for Rib Processing Standard Length 3 Flute Ball Nose End Mill Extended Reach 3 Flute Ball Nose End Mill Extended Reach Stub Length Ball Nose End Mill Standard Length 4 Flute Ball Nose End Mill 0.20mm - 3.00mm 0.50mm - 1.50mm 0.0100” - 0.1000” 0.0100” - 0.1000” 0.0100” - 0.2500” 0.0100” - 0.2500” 0.40mm - 6.00mm 125 128 1835 1845 M D S IU DI A R R O C ) 131 132 133 1611 1612 1613 134 1614 134 1616 135 1617 Stub Length 4 Flute Ball Nose End Mill Extended Reach 4 Flute Ball Nose End Mill Standard Length 2 Flute X-Small Corner Radius End Mill Standard Length 2 Flute Small Corner Radius End Mill Standard Length 2 Flute Standard Corner Radius End Mill Standard Length 2 Flute Large Corner Radius End Mill Standard Length 2 Flute X-Large Corner Radius End Mill Standard Length 2 Flute XX-Large Corner Radius End Mill 0.0100” - 0.2500” 0.40mm - 6.00mm 0.0100” - 0.2500” 0.40mm - 6.00mm 0.0500” - 01000” 0.0150” - 0.2500” 0.0156” - 0.2500” 0.0450” - 0.5000” 0.0450” - 0.5000” 0.0938” - 0.5000” 2 2 2 2 2 2 2 3 3 3 4 4 4 2 2 2 2 2 2 High Performance End Mills. See product page for high performance features. 10 Kyocera
