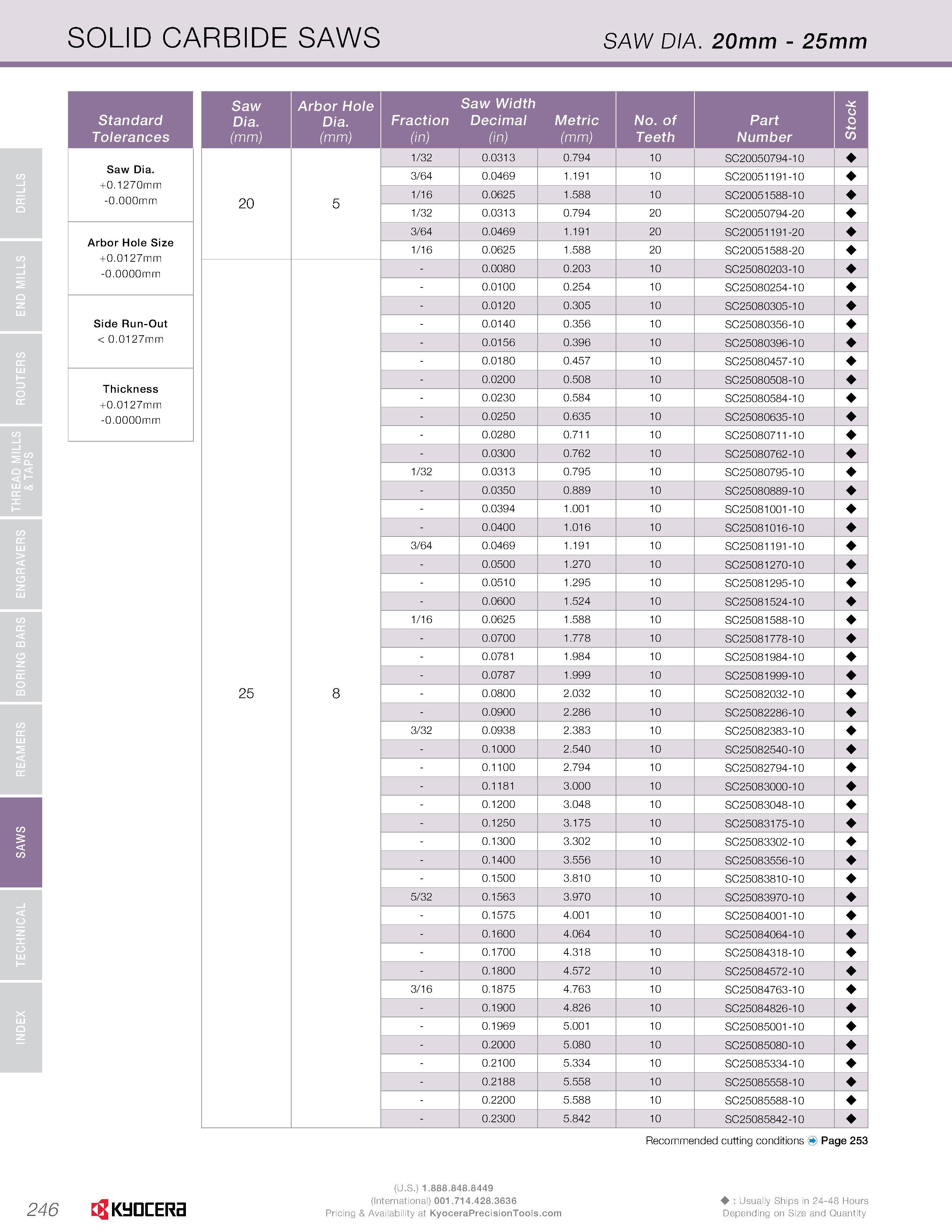

248 Каталог KYOCERA 2016 Твердосплавный вращающийся режущий инструмент ENG Стр.246

Catalog KYOCERA 2016 Solid carbide cutting tools Стр. 246 0248 ENG Lab2u

SOLID CARBIDE SAWS SAW DIA. 20mm - 25mm Standard Tolerances Saw Dia. +0.1270mm -0.000mm Arbor Hole Dia. (mm) Arbor Hole Size +0.0127mm -0.0000mm Side Run-Out < 0.0127mm Thickness +0.0127mm -0.0000mm 20 25 Fraction (in) Saw Width Decimal (in) Metric (mm) No. of Teeth Part Number Stock 1/32 0.0313 0.794 10 SC20050794-10 3/64 0.0469 1.191 10 SC20051191-10 1/16 0.0625 1.588 10 SC20051588-10 1/32 0.0313 0.794 20 SC20050794-20 3/64 0.0469 1.191 20 SC20051191-20 1/16 0.0625 1.588 20 SC20051588-20 - 0.0080 0.203 10 SC25080203-10 - 0.0100 0.254 10 SC25080254-10 - 0.0120 0.305 10 SC25080305-10 - 0.0140 0.356 10 SC25080356-10 - 0.0156 0.396 10 SC25080396-10 - 0.0180 0.457 10 SC25080457-10 - 0.0200 0.508 10 SC25080508-10 - 0.0230 0.584 10 SC25080584-10 - 0.0250 0.635 10 SC25080635-10 - 0.0280 0.711 10 SC25080711-10 - 0.0300 0.762 10 SC25080762-10 1/32 0.0313 0.795 10 SC25080795-10 - 0.0350 0.889 10 SC25080889-10 - 0.0394 1.001 10 SC25081001-10 - 0.0400 1.016 10 SC25081016-10 3/64 0.0469 1.191 10 SC25081191-10 - 0.0500 1.270 10 SC25081270-10 - 0.0510 1.295 10 SC25081295-10 - 0.0600 1.524 10 SC25081524-10 1/16 0.0625 1.588 10 SC25081588-10 - 0.0700 1.778 10 SC25081778-10 - 0.0781 1.984 10 SC25081984-10 - 0.0787 1.999 10 SC25081999-10 - 0.0800 2.032 10 SC25082032-10 - 0.0900 2.286 10 SC25082286-10 3/32 0.0938 2.383 10 SC25082383-10 - 0.1000 2.540 10 SC25082540-10 - 0.1100 2.794 10 SC25082794-10 - 0.1181 3.000 10 SC25083000-10 - 0.1200 3.048 10 SC25083048-10 - 0.1250 3.175 10 SC25083175-10 - 0.1300 3.302 10 SC25083302-10 - 0.1400 3.556 10 SC25083556-10 - 0.1500 3.810 10 SC25083810-10 5/32 0.1563 3.970 10 SC25083970-10 - 0.1575 4.001 10 SC25084001-10 - 0.1600 4.064 10 SC25084064-10 - 0.1700 4.318 10 SC25084318-10 - 0.1800 4.572 10 SC25084572-10 3/16 0.1875 4.763 10 SC25084763-10 - 0.1900 4.826 10 SC25084826-10 - 0.1969 5.001 10 SC25085001-10 - 0.2000 5.080 10 SC25085080-10 - 0.2100 5.334 10 SC25085334-10 - 0.2188 5.558 10 SC25085558-10 - 0.2200 5.588 10 SC25085588-10 - 0.2300 5.842 10 SC25085842-10 Recommended cutting conditions Page 253 5 8 (U.S.) (International) 001.714.428.3636 Usually Ships in 24-48 Hours 246 Pricing & Availability at Depending on Size and Quantity
