245 Каталог KYOCERA 2016 Твердосплавный вращающийся режущий инструмент ENG Стр.243

Catalog KYOCERA 2016 Solid carbide cutting tools Стр. 243 0245 ENG Lab2u

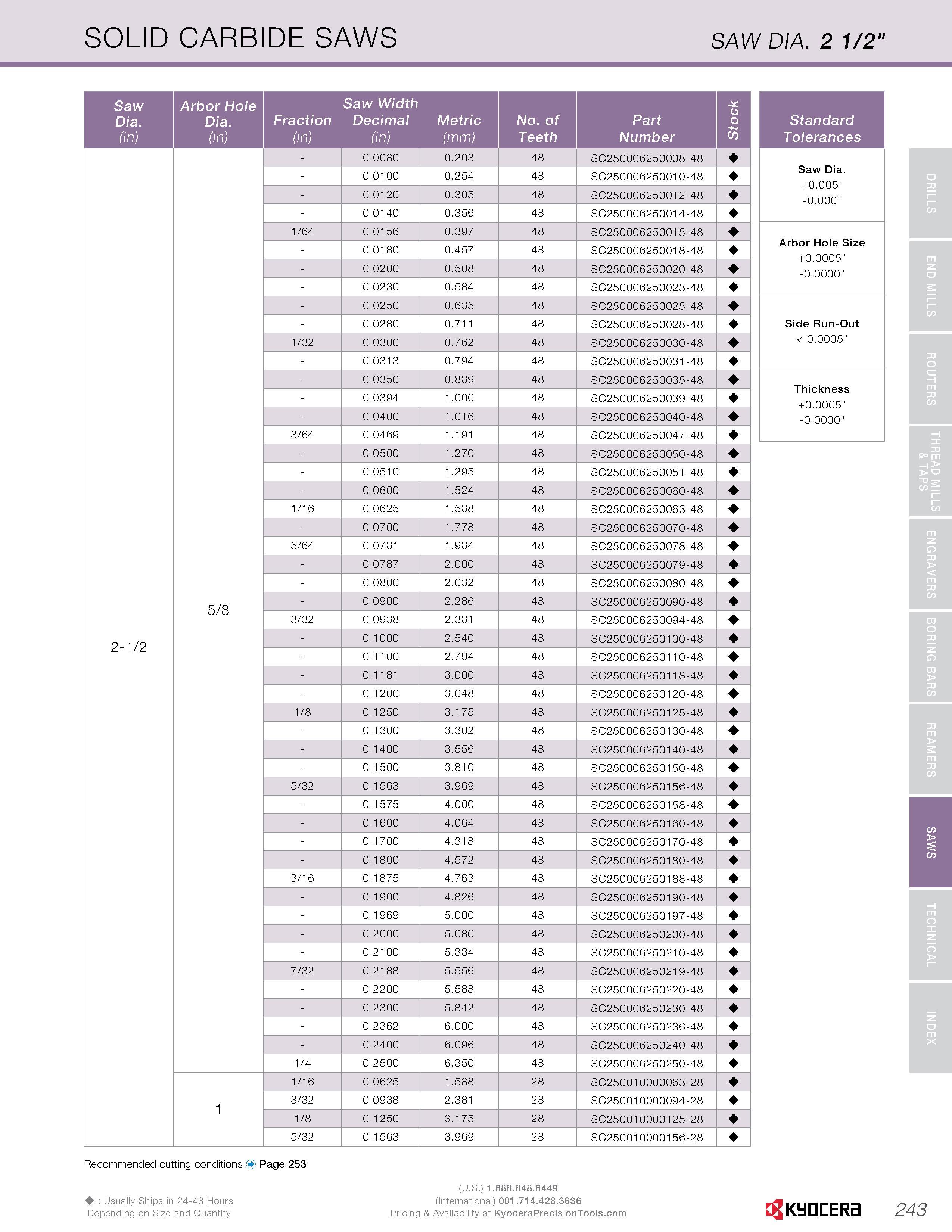

SOLID CARBIDE SAWS SAW DIA. 2 1/2" Saw Arbor Hole Saw Width Stock Dia. Dia. Fraction Decimal Metric No. of Part (in) (in) (in) (in) (mm) Teeth Number - 0.0080 0.203 48 SC250006250008-48 - 0.0100 0.254 48 SC250006250010-48 - 0.0120 0.305 48 SC250006250012-48 - 0.0140 0.356 48 SC250006250014-48 1/64 0.0156 0.397 48 SC250006250015-48 - 0.0180 0.457 48 SC250006250018-48 - 0.0200 0.508 48 SC250006250020-48 - 0.0230 0.584 48 SC250006250023-48 - 0.0250 0.635 48 SC250006250025-48 - 0.0280 0.711 48 SC250006250028-48 1/32 0.0300 0.762 48 SC250006250030-48 - 0.0313 0.794 48 SC250006250031-48 - 0.0350 0.889 48 SC250006250035-48 - 0.0394 1.000 48 SC250006250039-48 - 0.0400 1.016 48 SC250006250040-48 3/64 0.0469 1.191 48 SC250006250047-48 - 0.0500 1.270 48 SC250006250050-48 - 0.0510 1.295 48 SC250006250051-48 - 0.0600 1.524 48 SC250006250060-48 1/16 0.0625 1.588 48 SC250006250063-48 - 0.0700 1.778 48 SC250006250070-48 5/64 0.0781 1.984 48 SC250006250078-48 - 0.0787 2.000 48 SC250006250079-48 - 0.0800 2.032 48 SC250006250080-48 5/8 - 0.0900 2.286 48 SC250006250090-48 3/32 0.0938 2.381 48 SC250006250094-48 2-1/2 - 0.1000 2.540 48 SC250006250100-48 - 0.1100 2.794 48 SC250006250110-48 - 0.1181 3.000 48 SC250006250118-48 - 0.1200 3.048 48 SC250006250120-48 1/8 0.1250 3.175 48 SC250006250125-48 - 0.1300 3.302 48 SC250006250130-48 - 0.1400 3.556 48 SC250006250140-48 - 0.1500 3.810 48 SC250006250150-48 5/32 0.1563 3.969 48 SC250006250156-48 - 0.1575 4.000 48 SC250006250158-48 - 0.1600 4.064 48 SC250006250160-48 - 0.1700 4.318 48 SC250006250170-48 - 0.1800 4.572 48 SC250006250180-48 3/16 0.1875 4.763 48 SC250006250188-48 - 0.1900 4.826 48 SC250006250190-48 - 0.1969 5.000 48 SC250006250197-48 - 0.2000 5.080 48 SC250006250200-48 - 0.2100 5.334 48 SC250006250210-48 7/32 0.2188 5.556 48 SC250006250219-48 - 0.2200 5.588 48 SC250006250220-48 - 0.2300 5.842 48 SC250006250230-48 - 0.2362 6.000 48 SC250006250236-48 - 0.2400 6.096 48 SC250006250240-48 1/4 0.2500 6.350 48 SC250006250250-48 1/16 0.0625 1.588 28 SC250010000063-28 1 3/32 0.0938 2.381 28 SC250010000094-28 1/8 0.1250 3.175 28 SC250010000125-28 5/32 0.1563 3.969 28 SC250010000156-28 Recommended cutting conditions Page 253 Usually Ships in 24-48 Hours Depending on Size and Quantity Standard Tolerances Saw Dia. +0.005" -0.000" Arbor Hole Size +0.0005" -0.0000" Side Run-Out < 0.0005" Thickness +0.0005" -0.0000" Kyocera 243
