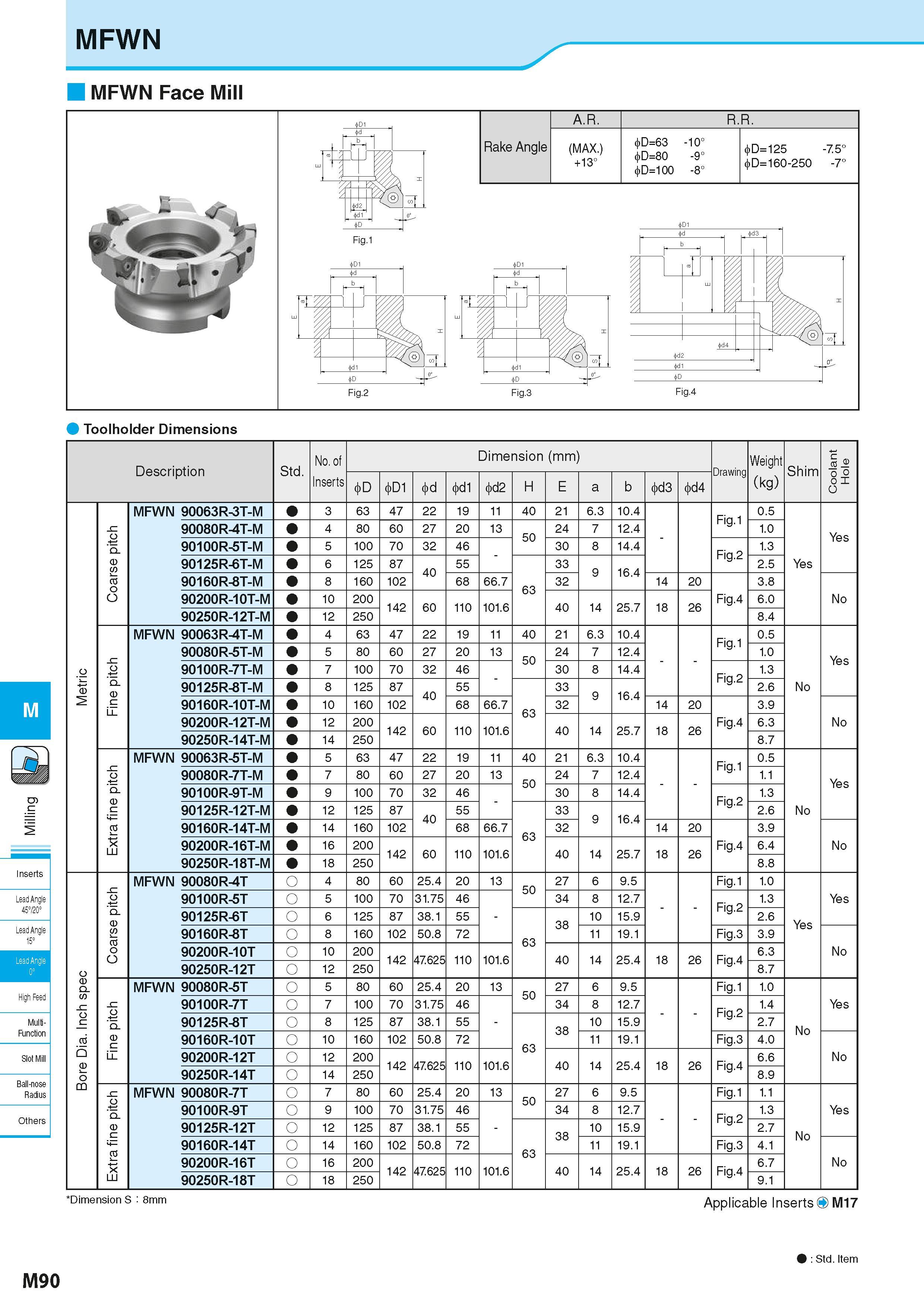

MFWN Toolholder Dimensions M Inserts Lead Angle 45720° Lead Angle 15° High Feec Multi- Function Slot Mill Ball-nose Radius Others Description Обозначение инструмента для заказа Std. No. of Dimension (mm) Размеры инструмента указаны в мм Drawing Weight Shim Coolant Hole Inserts < D < D1 d fd1 < d2 H E a b < d3 fd4 (kg) MFWN 90063R-3T-M 3 63 47 22 19 11 40 21 6.3 10.4 Fig.1 0.5 JZ tc 0 sr 90080R-4T-M 4 80 60 27 20 13 50 24 7 12.4 1.0 Yes 90100R-5T-M 5 100 70 32 46 30 8 14.4 Fig.2 1.3 90125R-6T-M 6 125 87 40 55 33 9 16.4 2.5 Yes 90160R-8T-M 8 160 102 68 66.7 63 32 14 20 3.8 90200R-10T-M 10 200 142 60 110 101.6 40 14 25.7 18 26 Fig.4 6.0 No 90250R-12T-M 12 250 8.4 MFWN 90063R-4T-M 4 63 47 22 19 11 40 21 6.3 10.4 Fig.1 0.5 h o 0 c i L 90080R-5T-M 5 80 60 27 20 13 50 24 7 12.4 1.0 Yes Metric 90100R-7T-M 7 100 70 32 46 30 8 14.4 Fig.2 1.3 90125R-8T-M 8 125 87 40 55 33 9 16.4 2.6 No 90160R-10T-M 10 160 102 68 66.7 63 32 14 20 3.9 90200R-12T-M 12 200 142 60 110 101.6 40 14 25.7 18 26 Fig.4 6.3 No 90250R-14T-M 14 250 8.7 Extra fine pitch MFWN 90063R-5T-M 5 63 47 22 19 11 40 21 6.3 10.4 Fig.1 0.5 90080R-7T-M 7 80 60 27 20 13 50 24 7 12.4 1.1 Yes 90100R-9T-M 9 100 70 32 46 30 8 14.4 Fig.2 1.3 90125R-12T-M 12 125 87 40 55 33 9 16.4 2.6 No 90160R-14T-M 14 160 102 68 66.7 63 32 14 20 3.9 90200R-16T-M 16 200 142 60 110 101.6 40 14 25.7 18 26 Fig.4 6.4 No 90250R-18T-M 18 250 8.8 h O 0 ar O o MFWN 90080R-4T O 4 80 60 25.4 20 13 50 27 6 9.5 Fig.1 1.0 90100R-5T o 5 100 70 31.75 46 34 8 12.7 Fig.2 1.3 Yes 90125R-6T o 6 125 87 38.1 55 - 38 10 15.9 2.6 Yes 90160R-8T o 8 160 102 50.8 72 63 11 19.1 Fig.3 3.9 90200R-10T o 10 200 142 47625 110 101.6 40 14 25.4 18 26 Fig.4 6.3 No Bore Dia. Inch spec 90250R-12T o 12 250 8.7 MFWN 90080R-5T o 5 80 60 25.4 20 13 50 27 6 9.5 Fig.1 1.0 JZ tc 0 in i L 90100R-7T o 7 100 70 31.75 46 34 8 12.7 Fig.2 1.4 Yes 90125R-8T o 8 125 87 38.1 55 - 38 10 15.9 2.7 No 90160R-10T o 10 160 102 50.8 72 63 11 19.1 Fig.3 4.0 90200R-12T o 12 200 142 47.625 110 101.6 40 14 25.4 18 26 Fig.4 6.6 No 90250R-14T o 14 250 8.9 Extra fine pitch MFWN 90080R-7T o 7 80 60 25.4 20 13 50 27 6 9.5 Fig.1 1.1 90100R-9T o 9 100 70 31.75 46 34 8 12.7 Fig.2 1.3 Yes 90125R-12T o 12 125 87 38.1 55 - 38 10 15.9 2.7 No 90160R-14T o 14 160 102 50.8 72 63 11 19.1 Fig.3 4.1 90200R-16T o 16 200 142 47.625 110 101.6 40 14 25.4 18 26 Fig.4 6.7 No 90250R-18T o 18 250 9.1 ‘Dimension S 8mm M90 Applicable Inserts O M17 Std. Item
