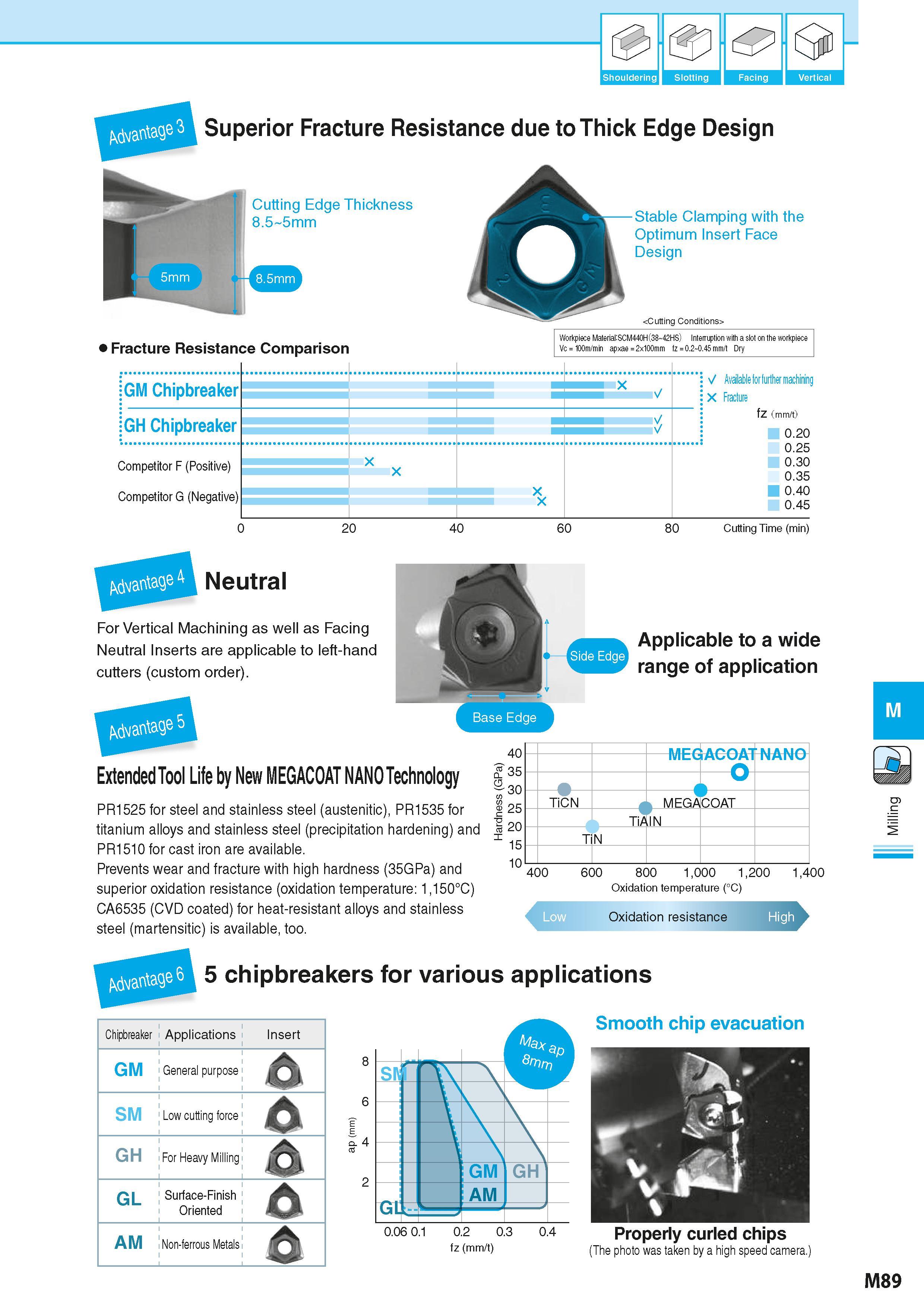

5 S1 Shouldering Slotting Facing Vertical Superior Fracture Resistance due to Thick Edge Design Cutting Edge Thickness 8.5 5mm Fracture Resistance Comparison .............f- Stable Clamping with the Optimum Insert Face Design Workpiece Material:SCM440H(38 42HS) Interruption with a slot on the workpiece Vc = 100m/min apxae = 2x100mm fz = 0.2 0.45 mm/t Dry GM Chipbreaker GH Chipbreaker Competitor F (Positive) Competitor G (Negative) X X V Available for further machining X Fracture fz (mm/t) 0.20 0.25 0.30 0.35 0.40 0.45 0 20 40 60 80 Cutting Time (min) Neutral For Vertical Machining as well as Facing Neutral Inserts are applicable to left-hand cutters (custom order). Applicable to a wide range of application 40 £35 -30 25 1 20 T 15 10 m cr jli a Kin MEG iACOAI A NANO £ V TiCN g MEGA COAT TiA IN T N 1,400 Extended Tool Life by New MEGACOAT NANO Technology PR1525 for steel and stainless steel (austenitic), PR1535 for titanium alloys and stainless steel (precipitation hardening) and PR1510 for cast iron are available. Prevents wear and fracture with high hardness (35GPa) and superior oxidation resistance (oxidation temperature: 1,150°C) CA6535 (CVD coated) for heat-resistant alloys and stainless steel (martensitic) is available, too. 5 chipbreakers for various applications Smooth chip evacuation 400 600 800 1,000 1,200 Oxidation temperature (°C) Oxidation resistance Chipbreaker Applications Insert GM 1 1 General purpose SM 1 1 1 1 Low cutting force A GH 1 1 For Heavy Milling i i & GL Surface-Finish Oriented AM Non-ferrous Metals 6 fz (mm/t) Properly curled chips (The photo was taken by a high speed camera.) M89 M
