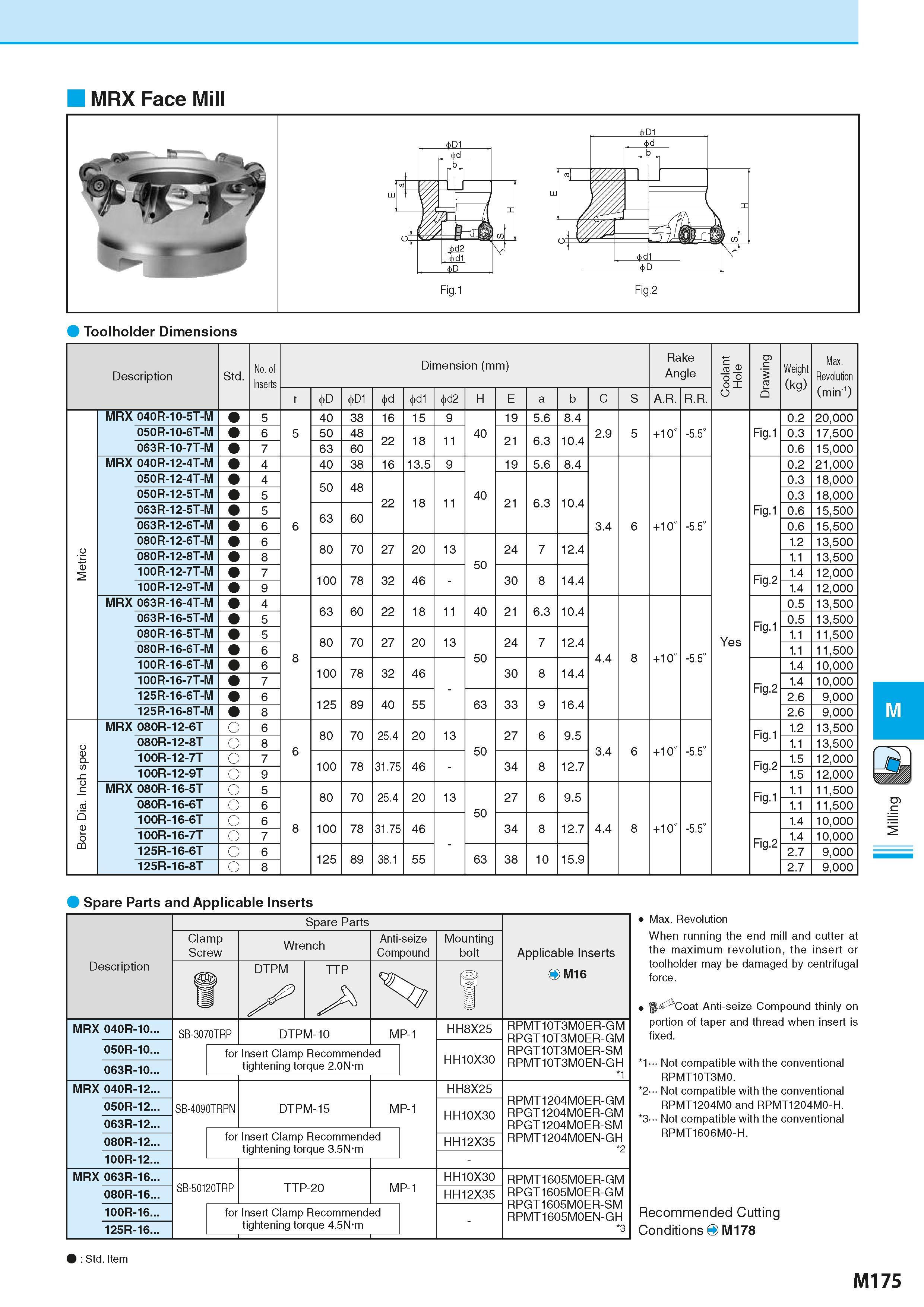

MRX Face Mill Toolholder Dimensions Description Обозначение инструмента для заказа Std. No. of Inserts Dimension (mm) Размеры инструмента указаны в мм Rake Angle Coolant Hole Drawing Weight (kg) Max. Revolution r D AD1 Ad Ad1 Ad2 H E a b C S A.R. R.R. (min-1) MRX 040R-10-5T-M 5 40 38 16 15 9 19 5.6 8.4 0.2 20,000 050R-10-6T-M 6 5 50 48 22 18 11 40 21 6.3 10.4 2.9 5 +10° -5.5° Fig.1 0.3 17,500 063R-10-7T-M 7 63 60 0.6 15,000 MRX 040R-12-4T-M 4 40 38 16 13.5 9 19 5.6 8.4 0.2 21,000 050R-12-4T-M 4 50 48 0.3 18,000 050R-12-5T-M 5 22 18 11 40 21 6.3 10.4 0.3 18,000 063R-12-5T-M 5 63 60 Fig.1 0.6 15,500 063R-12-6T-M 6 6 3.4 6 +10° -5.5° 0.6 15,500 Metric 080R-12-6T-M 6 80 70 27 20 13 24 7 12.4 1.2 13,500 080R-12-8T-M 8 50 1.1 13,500 100R-12-7T-M 7 100 78 32 46 30 8 14.4 Fig.2 1.4 12,000 100R-12-9T-M 9 1.4 12,000 MRX 063R-16-4T-M 4 63 60 22 18 11 40 21 6.3 10.4 0.5 13,500 063R-16-5T-M 5 Fig.1 0.5 13,500 080R-16-5T-M 5 80 70 27 20 13 24 7 12.4 Yes 1.1 11,500 080R-16-6T-M 6 8 50 4.4 8 +10° -5.5° 1.1 11,500 100R-16-6T-M 6 100 78 32 46 30 8 14.4 1.4 10,000 100R-16-7T-M 7 Fig.2 1.4 10,000 125R-16-6T-M 6 125 89 40 55 63 33 9 16.4 2.6 9,000 125R-16-8T-M 8 2.6 9,000 MRX 080R-12-6T o 6 80 70 25.4 20 13 27 6 9.5 Fig.1 1.2 13,500 Bore Dia. Inch spec 080R-12-8T o 8 6 50 3.4 6 +10° -5.5° 1.1 13,500 100R-12-7T o 7 100 78 31.75 46 34 8 12.7 Fig.2 1.5 12,000 100R-12-9T o 9 1.5 12,000 MRX 080R-16-5T o 5 80 70 25.4 20 13 27 6 9.5 Fig.1 1.1 11,500 080R-16-6T o 6 50 1.1 11,500 100R-16-6T o 6 8 100 78 31.75 46 34 8 12.7 4.4 8 +10° -5.5° 1.4 10,000 100R-16-7T o 7 Fig.2 1.4 10,000 125R-16-6T o 6 125 89 38.1 55 63 38 10 15.9 2.7 9,000 125R-16-8T o 8 2.7 9,000 Spare Parts and Applicable Inserts Description Clamp Screw Spare Parts Wrench DTPM TTP Anti-seize Compound Mounting bolt Applicable Inserts O M16 MRX 040R-10.. SB-3070TRP DTPM-10 MP-1 HH8X25 050R-10... 063R-10.. for Insert Clamp Recommended tightening torque 2.0N-m HH10X30 RPMT10T3M0ER-GM RPGT10T3M0ER-GM RPGT10T3M0ER-SM RPMT10T3M0EN-GH 1 MRX 040R-12... HH8X25 050R-12.. SB-4090TRPN DTPM-15 MP-1 063R-12... HH10X30 080R-12... 100R-12.. for Insert Clamp Recommended tightening torque 3.5N-m HH12X35 RPMT1204M0ER-GM RPGT1204M0ER-GM RPGT1204M0ER-SM RPMT1204M0EN-GH 2 MRX 063R-16... 080R-16.. SB-50120TRP TTP-20 MP-1 HH10X30 HH12X35 100R-16.. 125R-16... for Insert Clamp Recommended tightening torque 4.5N-m RPMT1605M0ER-GM RPGT1605M0ER-GM RPGT1605M0ER-SM RPMT1605M0EN-GH 3 Std. Item Max. Revolution When running the end mill and cutter at the maximum revolution, the insert or toolholder may be damaged by centrifugal force. jJ- Coat Anti-seize Compound thinly on portion of taper and thread when insert is fixed. 1 Not compatible with the conventional RPMT10T3M0. 2 - Not compatible with the conventional RPMT1204M0 and RPMT1204M0-H. 3 - Not compatible with the conventional RPMT1606M0-H. Recommended Cutting Conditions O M178 M175
