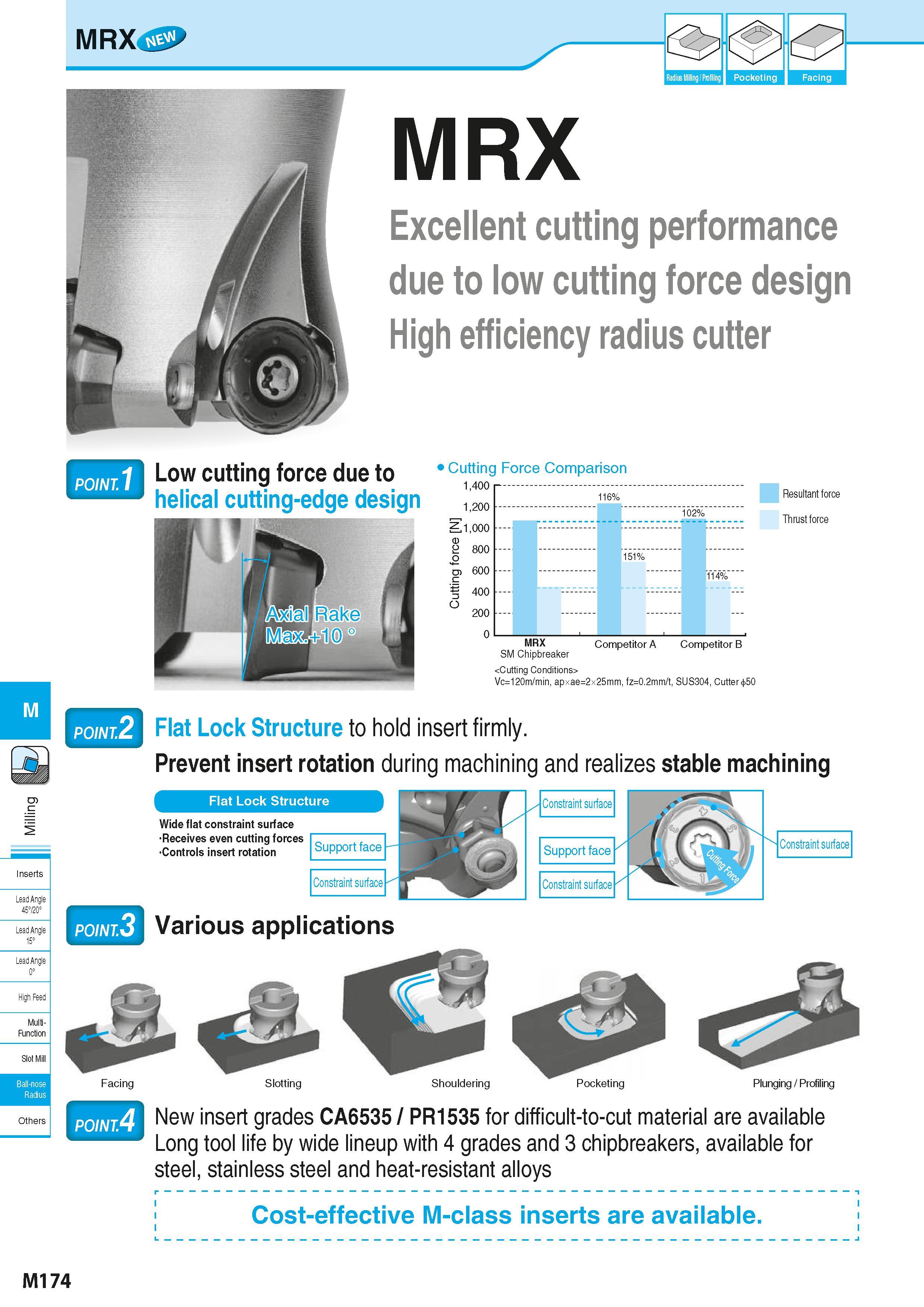

M Inserts Lead Angle 45°/20° Lead Angle 15° Lead Angle 0° High Feed Multi- Function Slot Mill Ball-nose Radius MRX > Pocketing I Facing MRX Excellent cutting performance due to low cutting force design High efficiency radius cutter Low cutting force due to helical cutting-edge design 1 Cutting Force Comparison 1,400 116% 1,200 1,000 800 600 400 200 0 O J m% Resultant force Thrust force 151% Competitor A Competitor B MRX SM Chipbreaker Vc=120m/min, apxae=2x25mm, fz=0.2mm/t, SUS304, Cutter 50 Flat Lock Structure Constraint surface Flat Lock Structure to hold insert firmly. Prevent insert rotation during machining and realizes stable machining Wide flat constraint surface Receives even cutting forces Controls insert rotation Support face Constraint surface Support face Constraint surface Constraint surface Various applications Facing Slotting Shouldering Plunging / Profiling 4 New insert grades CA6535 / PR1535 for difficult-to-cut material are available Long tool life by wide lineup with 4 grades and 3 chipbreakers, available for steel, stainless steel and heat-resistant alloys Cost-effective M-class inserts are available. Pocketing M174
