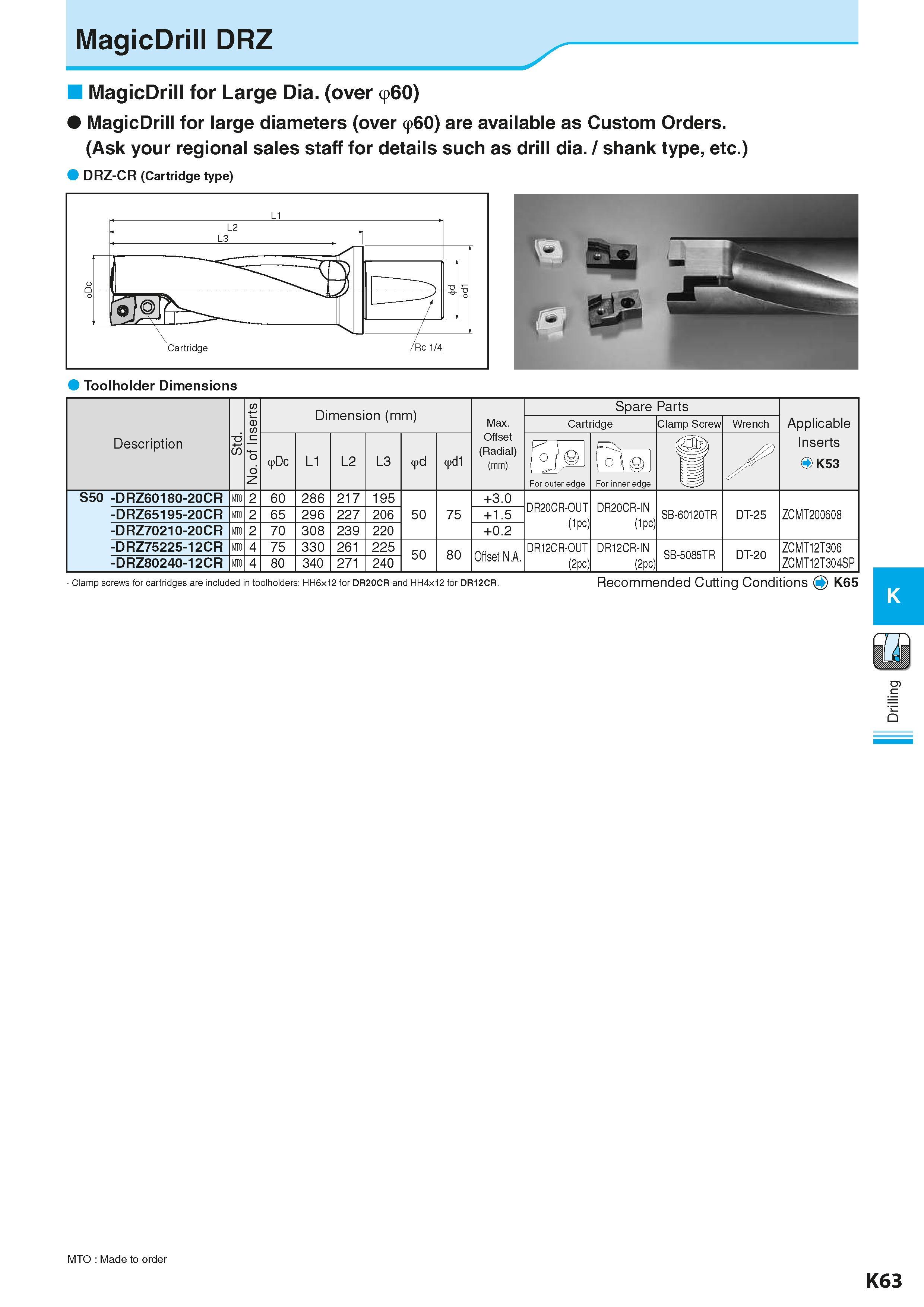

MagicDrill DRZ MagicDrill for Large Dia. (over 96O) MagicDrill for large diameters (over 96O) are available as Custom Orders. (Ask your regional sales staff for details such as drill dia. / shank type, etc.) DRZ-CR (Cartridge type) Description -6 55 No. of Inserts Dimension (mm) Размеры инструмента указаны в мм Max. Offset (Radial) (mm) Spare Parts Applicable Inserts O K53 Cartridge Clamp Screw Wrench Dc L1 L2 L3 d d1 For outer edge pTN U I °\& For inner edge S50 -DRZ60180-20CR MTO 2 60 286 217 195 50 75 +3.0 DR20CR-0UT (1pc) DR20CR-IN (1pc) SB-60120TR DT-25 ZCMT200608 -DRZ65195-20CR MTO 2 65 296 227 206 +1.5 -DRZ70210-20CR MTO 2 70 308 239 220 +0.2 -DRZ75225-12CR MTO 4 75 330 261 225 50 80 Offset N.A. DR12CR-0UT (2pc) DR12CR-IN (2pc) SB-5085TR DT-20 ZCMT12T306 ZCMT12T304SP -DRZ80240-12CR MTO 4 80 340 271 240 Clamp screws for cartridges are included in toolholders: HH6x12 for DR20CR and HH4x12 for DR12CR. Recommended Cutting Conditions O K65 MTO Made to order K63 Drilling
