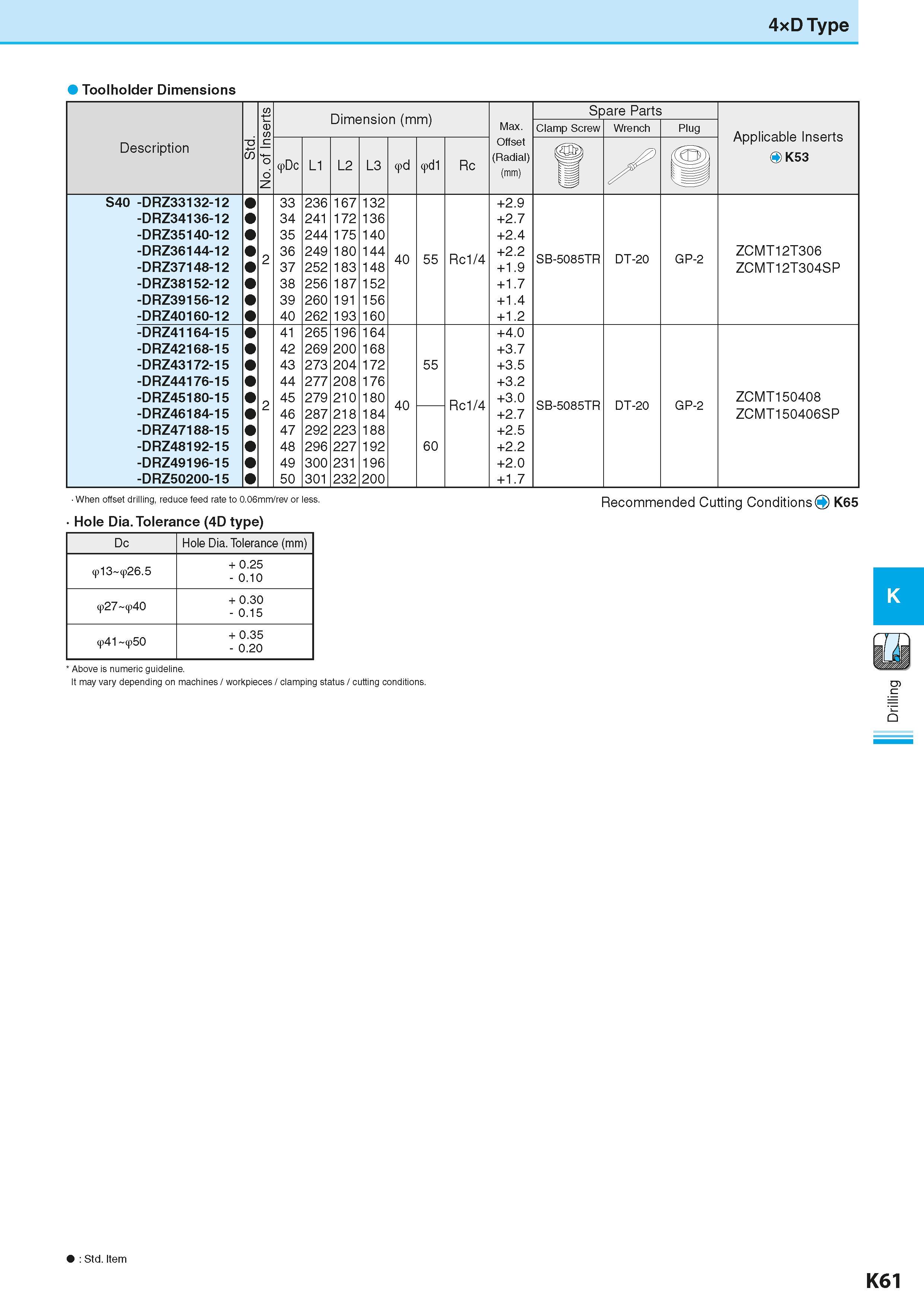

4xD Type Toolholder Dimensions No. of Inserts Dimension (mm) Размеры инструмента указаны в мм Spare Parts Max. Clamp Screw Wrench Plug Applicable Inserts OK53 Description td. w 9Dc L1 L2 L3 9d 9d1 Rc Offset (Radial) (mm) U f S40 -DRZ33132-12 33 236 167 132 +2.9 -DRZ34136-12 34 241 172 136 +2.7 -DRZ35140-12 35 244 175 140 +2.4 -DRZ36144-12 2 36 249 180 144 40 55 Rc1/4 +2.2 SB-5085TR DT-20 GP-2 ZCMT12T306 -DRZ37148-12 37 252 183 148 +1.9 ZCMT12T304SP -DRZ38152-12 38 256 187 152 +1.7 -DRZ39156-12 39 260 191 156 +1.4 -DRZ40160-12 40 262 193 160 +1.2 -DRZ41164-15 41 265 196 164 +4.0 -DRZ42168-15 42 269 200 168 +3.7 -DRZ43172-15 43 273 204 172 55 +3.5 -DRZ44176-15 44 277 208 176 +3.2 -DRZ45180-15 2 45 279 210 180 40 Rc1/4 +3.0 SB-5085TR DT-20 GP-2 ZCMT150408 -DRZ46184-15 46 287 218 184 +2.7 ZCMT150406SP -DRZ47188-15 47 292 223 188 +2.5 -DRZ48192-15 48 296 227 192 60 +2.2 -DRZ49196-15 -DRZ50200-15 49 50 300 301 231 232 196 200 +2.0 +1.7 when offsetdrilling, reducefeed rate to o.o6mm/revor less. Recommended Cutting ConditionsO K65 Hole Dia. Tolerance (4D type) Dc Hole Dia. Tolerance (mm) 913 926.5 + 0.25 - 0.10 927- 40 + 0.30 - 0.15 941 950 + 0.35 - 0.20 Above is numeric guideline. It may vary depending on machines / workpieces / clamping status / cutting conditions. K Std. Item K61 Drilling
