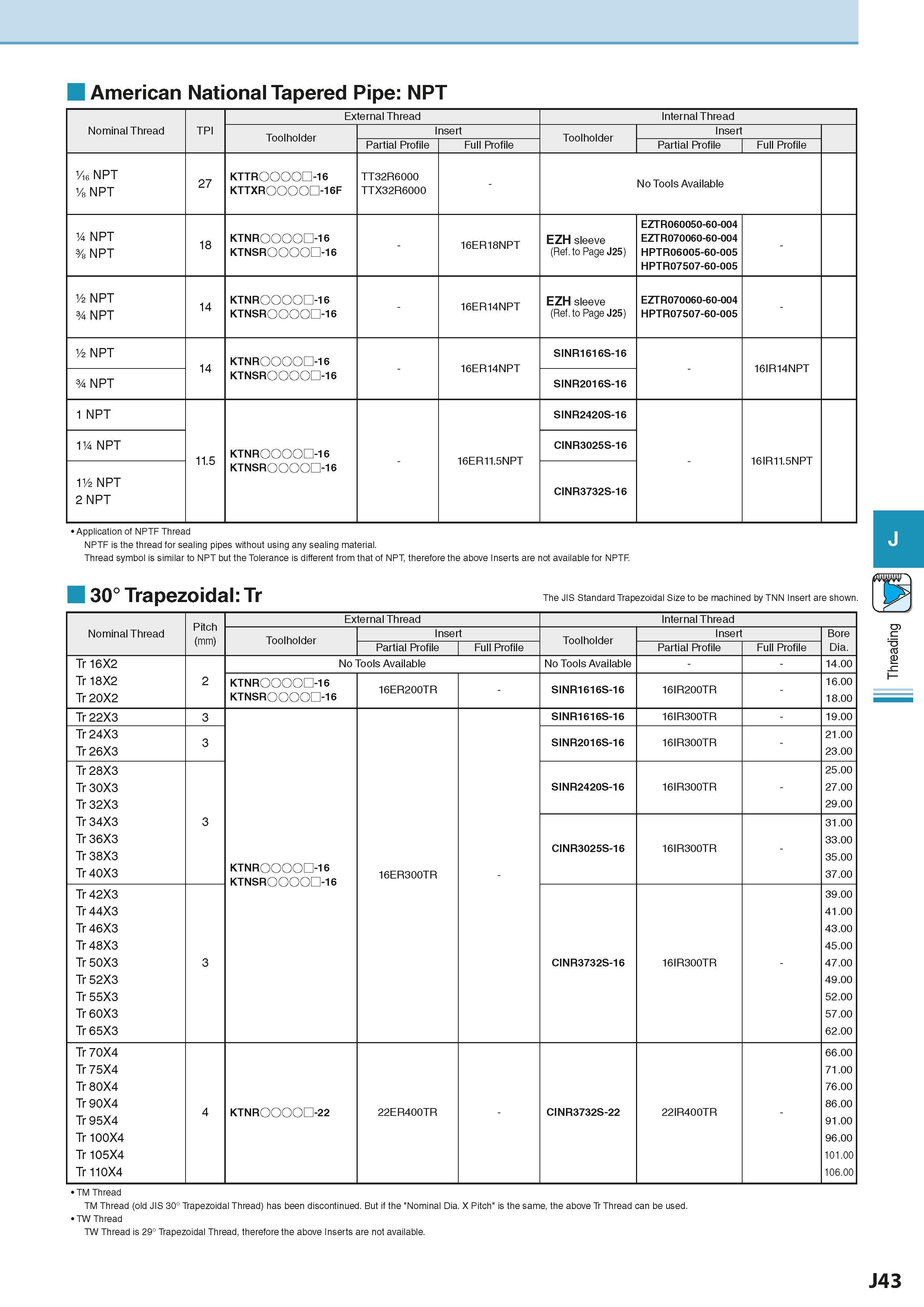

American National Tapered Pipe: NPT Nominal Thread TPI External Thread Internal Thread Toolholder Insert Toolholder Insert Partial Profile Full Profile Partial Profile Full Profile 1/16 NPT 1/8 NPT 27 KTTROOOO -16 KTTXROOOO&16F TT32R6000 TTX32R6000 - No Tools Available 1/4 NPT % NPT 18 KTNROOOO -16 KTNSROOOO -16 - 16ER18NPT EZH sleeve (Ref. to Page J25) EZTR060050-60-004 EZTR070060-60-004 HPTR06005-60-005 HPTR07507-60-005 - 1/2 NPT 3/4 NPT 14 KTNROOOO -16 KTNSROOOO -16 - 16ER14NPT EZH sleeve (Ref. to Page J25) EZTR070060-60-004 HPTR07507-60-005 - 1/2 NPT 14 KTNROOOO -16 KTNSROOOO -16 - 16ER14NPT SINR1616S-16 - 16IR14NPT 3/4 NPT SINR2016S-16 1 NPT 11.5 KTNROOOO -16 KTNSROOOO -16 - 16ER11.5NPT SINR2420S-16 - 16IR11.5NPT 11/4 NPT CINR3025S-16 11/2 NPT 2 NPT CINR3732S-16 Application of NPTF Thread NPTF is the thread for sealing pipes without using any sealing material. Thread symbol is similar to NPT but the Tolerance is different from that of NPT, therefore the above Inserts are not available for NPTF. 30° Trapezoidal: Tr The JIS Standard Trapezoidal Size to be machined by TNN Insert are shown. Pitch (mm) External Thread Internal Thread Nominal Thread Toolholder Insert Toolholder Insert Bore Partial Profile Full Profile Partial Profile Full Profile Dia. Tr 16X2 No Tools Available No Tools Available 14.00 Tr 18X2 Tr 20X2 2 KTNROOOO -16 KTNSROOOO -16 16ER200TR - SINR1616S-16 16IR200TR - 16.00 18.00 Tr 22X3 3 SINR1616S-16 16IR300TR - 19.00 Tr 24X3 Tr 26X3 3 SINR2016S-16 16IR300TR - 21.00 23.00 Tr 28X3 25.00 Tr 30X3 SINR2420S-16 16IR300TR - 27.00 Tr 32X3 29.00 Tr 34X3 3 31.00 Tr 36X3 Tr 38X3 Tr 40X3 KTNROOOO -16 KTNSROOOO -16 16ER300TR CINR3025S-16 16IR300TR - 33.00 35.00 37.00 Tr 42X3 39.00 Tr 44X3 41.00 Tr 46X3 43.00 Tr 48X3 45.00 Tr 50X3 3 CINR3732S-16 16IR300TR - 47.00 Tr 52X3 49.00 Tr 55X3 52.00 Tr 60X3 57.00 Tr 65X3 62.00 Tr 70X4 66.00 Tr 75X4 71.00 Tr 80X4 76.00 Tr 90X4 Tr 95X4 4 KTNROOOO -22 22ER400TR - CINR3732S-22 22IR400TR - 86.00 91.00 Tr 100X4 96.00 Tr 105X4 101.00 Tr 110X4 106.00 TM Thread TM Thread (old JIS 30° Trapezoidal Thread) has been discontinued. But if the "Nominal Dia. X Pitch" is the same, the above Tr Thread can be used. TW Thread TW Thread is 29° Trapezoidal Thread, therefore the above Inserts are not available. J43 Threading
