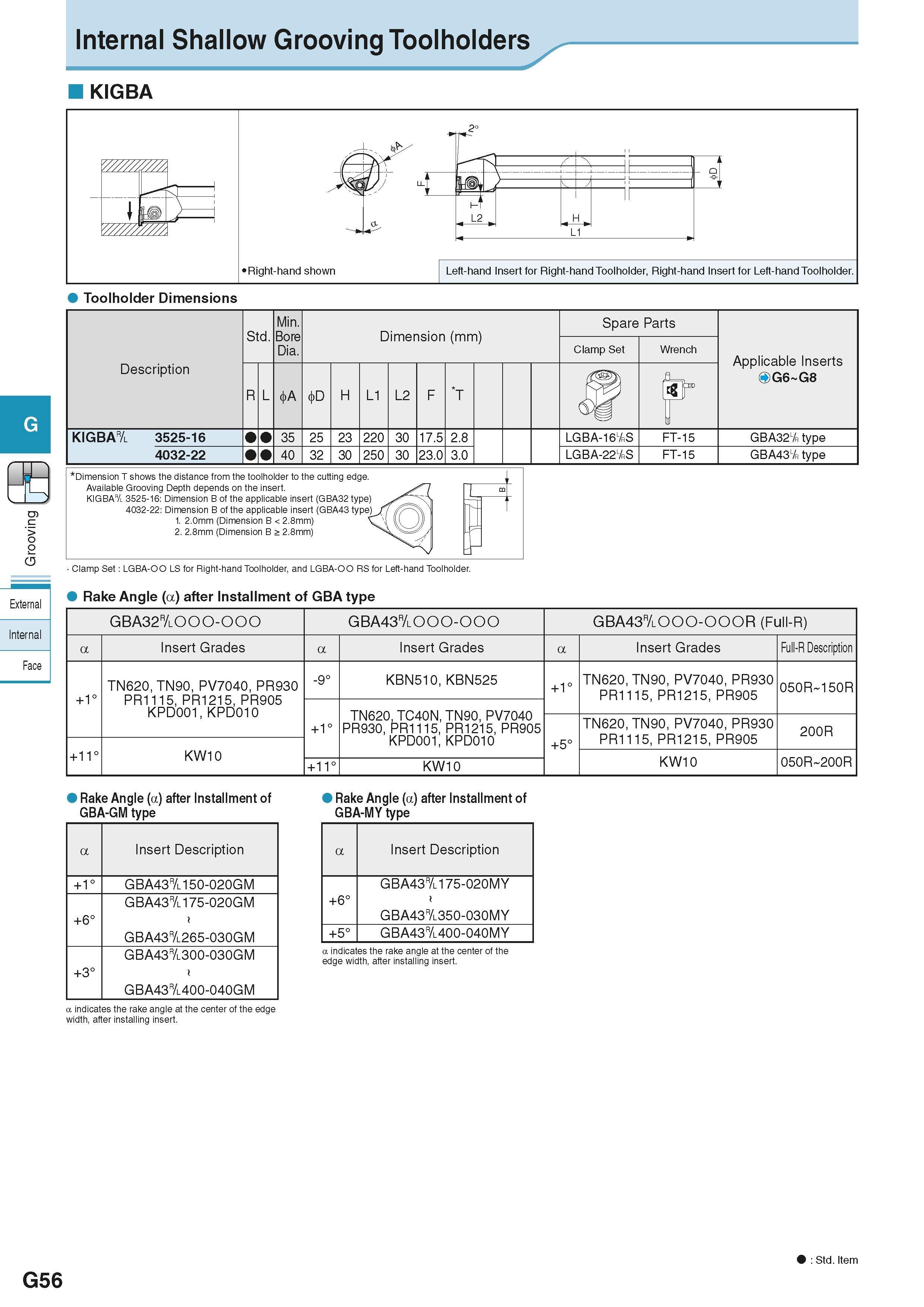

Internal Shallow Grooving Toolholders KIGBA Toolholder Dimensions Description Обозначение инструмента для заказа Std. Min. Bore Dia. Dimension (mm) Размеры инструмента указаны в мм Spare Parts Applicable Inserts OG6-G8 Clamp Set Wrench R L < A < D H L1 L2 F T If KIGBA& 3525-16 35 25 23 220 30 17.5 2.8 LGBA-16l/rS FT-15 GBA32l/r type 4032-22 40 32 30 250 30 23.0 3.0 LGBA-22l/rS FT-15 GBA43l/r type External Dimension T shows the distance from the toolholder to the cutting edge. Available Grooving Depth depends on the insert. KIGBA& 3525-16: Dimension B of the applicable insert (GBA32 type) 4032-22: Dimension B of the applicable insert (GBA43 type) 1. 2.0mm (Dimension B < 2.8mm) 2. 2.8mm (Dimension B > 2.8mm) Clamp Set LGBA-OO LS for Right-hand Toolholder, and LGBA-OO RS for Left-hand Toolholder. Rake Angle (a) after Installment of GBA type GBA32&OOO-OOO GBA43&OOO-OOO GBA43&OOO-OOOR (Full-R) a Insert Grades a Insert Grades a Insert Grades Full-R Description +1° TN620, TN90, PV7040, PR930 PR1115, PR1215, PR905 KPD001, KPD010 -9° KBN510, KBN525 +1° TN620, TN90, PV7040, PR930 PR1115, PR1215, PR905 050R 150R +1° TN620, TC40N, TN90, PV7040 PR930, PR1115, PR1215, PR905 KPD001, KPD010 +5° TN620, TN90, PV7040, PR930 PR1115, PR1215, PR905 200R +11° KW10 KW10 050R 200R +11° KW10 Internal Face Rake Angle (a) after Installment of Rake Angle (a) after Installment of GBA-GM type GBA-MY type a Insert Description +1° GBA43&150-020GM +6° GBA43&175-020GM GBA43&265-030GM +3° GBA43&300-030GM GBA43&400-040GM a Insert Description +6° GBA43&175-020MY GBA43&350-030MY +5° GBA43&400-040MY a indicates the rake angle at the center of the edge width, after installing insert. a indicates the rake angle at the center of the edge width, after installing insert. G56 Std. Item
