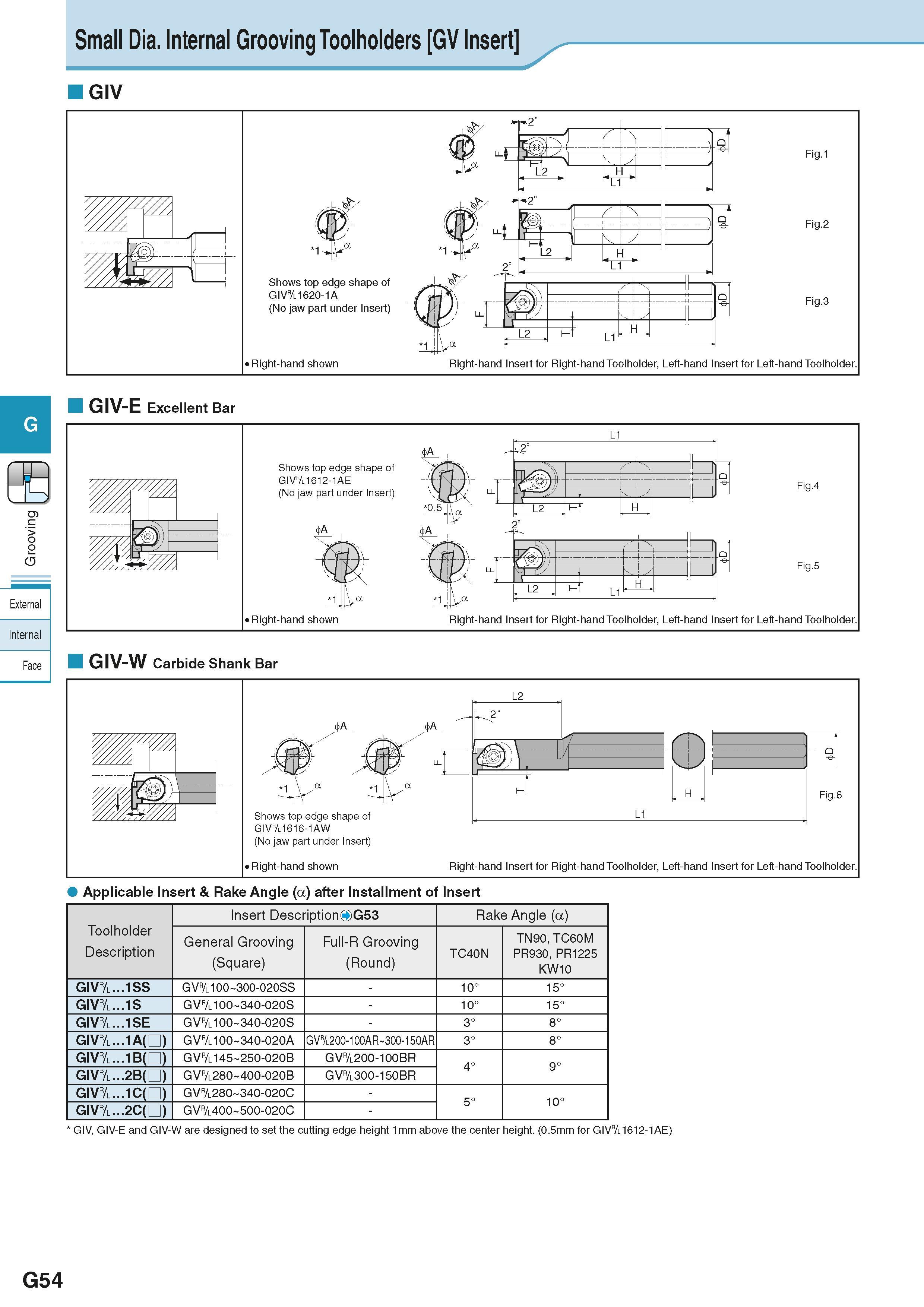

Small Dia. Internal Grooving Toolholders GV Insert GIV Shows top edge shape of GIV&1620-1A (No jaw part under Insert) Right-hand shown Fig.1 Fig.2 Fig.3 Right-hand Insert for Right-hand Toolholder, Left-hand Insert for Left-hand Toolholder. GIV-E Excellent Bar R > <5 Shows top edge shape of GIV&1612-1AE (No jaw part under Insert) External Internal Face Right-hand shown GIV-W Carbide Shank Bar Fig.4 Fig.5 Right-hand Insert for Right-hand Toolholder, Left-hand Insert for Left-hand Toolholder. L2 GIV&1616-1AW (No jaw part under Insert) Right-hand shown Right-hand Insert for Right-hand Toolholder, Left-hand Insert for Left-hand Toolholder. Applicable Insert & Rake Angle (a) after Installment of Insert Toolholder Description Insert Description G53 Rake Angle (a) General Grooving (Square) Full-R Grooving (Round) TC40N TN90, TC60M PR930, PR1225 KW10 GIV7l...1SS GV7l100 300-020SS - 10° 15° GIV7l...1S GV7l100 340-020S - 10° 15° GIV7l...1SE GV7l100 340-020S - 3° 8° GIV7l...1A( ) GV7l100 340-020A GV7l200-100AR 300-150AR 3° 8° GIV&...1B( ) GV7l145 250-020B GV&200-100BR 4° 9° GIV7l...2B( ) GV7l280 400-020B GV&300-150BR GIV7l...1C( ) GV7l280 340-020C - 5° 10° GIV&.2C( ) GV7l400 500-020C - GIV, GIV-E and GIV-W are designed to set the cutting edge height 1mm above the center height. (0.5mm for GIV&1612-1AE) G54
