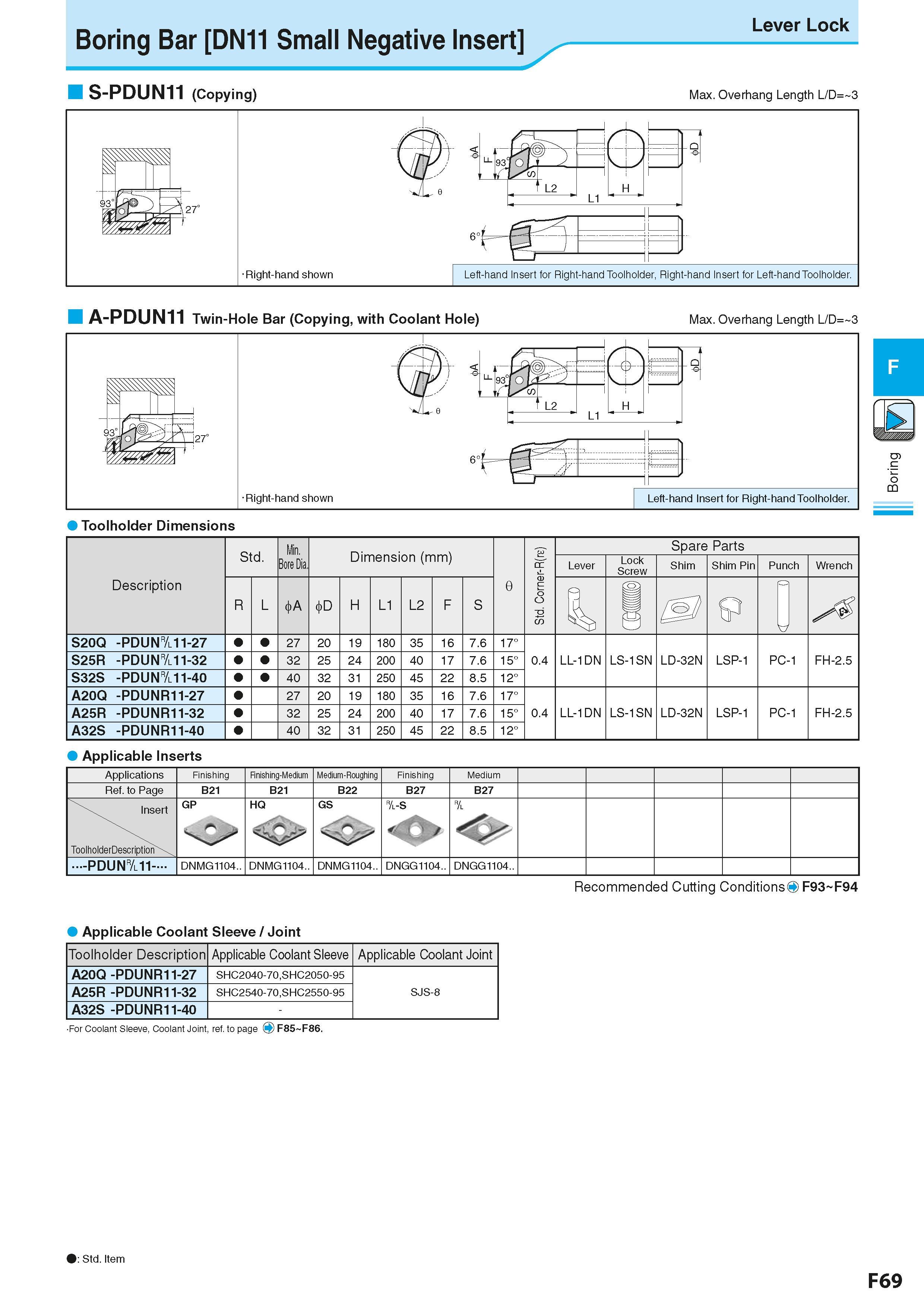

Boring Bar DN11 Small Negative Insert S-PDUN11 (Copying) Max. Overhang Length L/D= 3 A-PDUN11 Twin-Hole Bar (Copying, with Coolant Hole) Max. Overhang Length L/D= 3 Description Обозначение инструмента для заказа Std. Min. Bore Dia Dimension (mm) Размеры инструмента указаны в мм 0 CC CD d TD GO Spare Parts Lever Lock Screw Shim Shim Pin Punch Wrench R L < A < D H L1 L2 F S 1 (j J 9 S20Q -PDUN&11-27 27 20 19 180 35 16 7.6 17° 0.4 LL-1DN LS-1SN LD-32N LSP-1 PC-1 FH-2.5 S25R -PDUN&11-32 32 25 24 200 40 17 7.6 15° S32S -PDUN&11-40 40 32 31 250 45 22 8.5 12° A20Q -PDUNR11-27 27 20 19 180 35 16 7.6 17° 0.4 LL-1DN LS-1SN LD-32N LSP-1 PC-1 FH-2.5 A25R -PDUNR11-32 32 25 24 200 40 17 7.6 15° A32S -PDUNR11-40 40 32 31 250 45 22 8.5 12° Applicable Inserts Applications Finishing Finishing-Medium Medium-Roughing Finishing Medium Ref. to Page B21 B21 B22 B27 B27 Insert ToolholderDescription'\ GP HQ GS &-S & -PDUN&11- DNMG1104.. DNMG1104.. DNMG1104.. DNGG1104.. DNGG1104.. Recommended Cutting ConditionsO F93 F94 Applicable Coolant Sleeve / Joint Toolholder Description Applicable Coolant Sleeve Applicable Coolant Joint A20Q -PDUNR11-27 SHC2040-70,SHC2050-95 SJS-8 A25R -PDUNR11-32 SHC2540-70,SHC2550-95 A32S -PDUNR11-40 - For Coolant Sleeve, Coolant Joint, ref. to page O F85 F86. Std. Item F69 Boring
