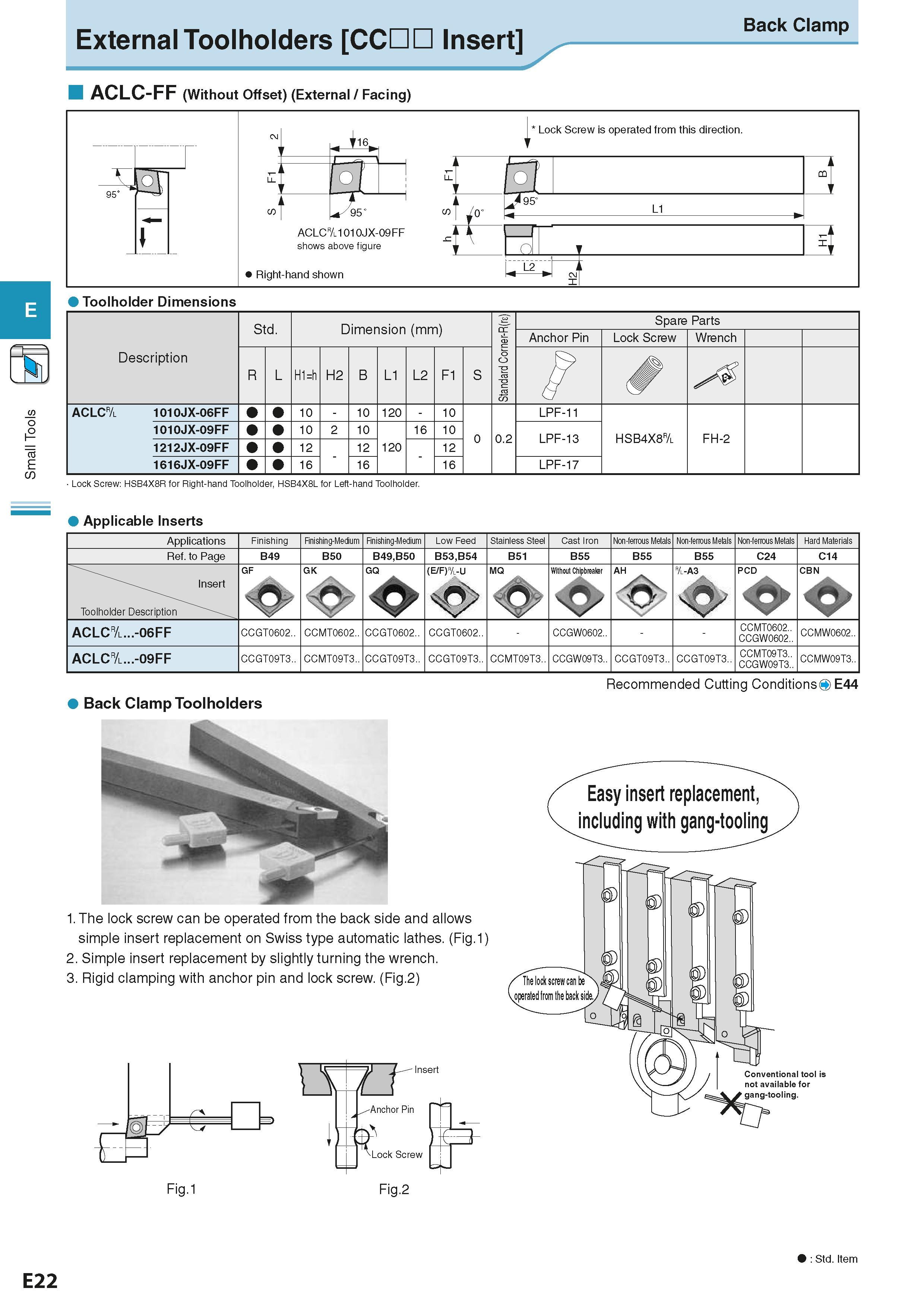

External Toolholders COHO Insert ACLC-FF (Without Offset) (External / Facing) Back Clamp Toolholder Dimensions Description Обозначение инструмента для заказа Std. Dimension (mm) Размеры инструмента указаны в мм Standard Corner-R(re) Spare Parts Anchor Pin Lock Screw Wrench R L H1=h H2 B L1 L2 F1 S ,f ACLC& 1010JX-06FF 10 - 10 120 - 10 0 0.2 LPF-11 HSB4X8& FH-2 1010JX-09FF 10 2 10 120 16 10 LPF-13 1212JX-09FF 12 - 12 - 12 1616JX-09FF 16 16 16 LPF-17 ls ol £ al m S Lock Screw: HSB4X8R for Right-hand Toolholder, HSB4X8L for Left-hand Toolholder. Applicable Inserts Applications Finishing Finishing-Medium Finishing-Medium Low Feed Stainless Steel Cast Iron Non-ferrous Metals Non-ferrous Metals Non-ferrous Metals Hard Materials Ref. to Page B49 B50 B49,B50 B53,B54 B51 B55 B55 B55 C24 C14 Insert Toolholder Description GF GK GQ (E/F)&-U MQ Without Chipbreaker AH < > &-A3 PCD CBN ACLC&...-06FF CCGT0602.. CCMT0602.. CCGT0602.. CCGT0602.. CCGW0602.. CCMT0602.. CCGW0602.. CCMW0602.. ACLC&...-09FF CCGT09T3.. CCMT09T3.. CCGT09T3.. CCGT09T3.. CCMT09T3.. CCGW09T3.. CCGT09T3.. CCGT09T3.. CCMT09T3.. CCGW09T3.. CCMW09T3.. Recommended Cutting ConditionsO E44 Back Clamp Toolholders Easy insert replacement, including with gang-tooling 1. The lock screw can be operated from the back side and allows simple insert replacement on Swiss type automatic lathes. (Fig.1 2. Simple insert replacement by slightly turning the wrench. 3. Rigid clamping with anchor pin and lock screw. (Fig.2) Fig.1 E22 Std. Item E
