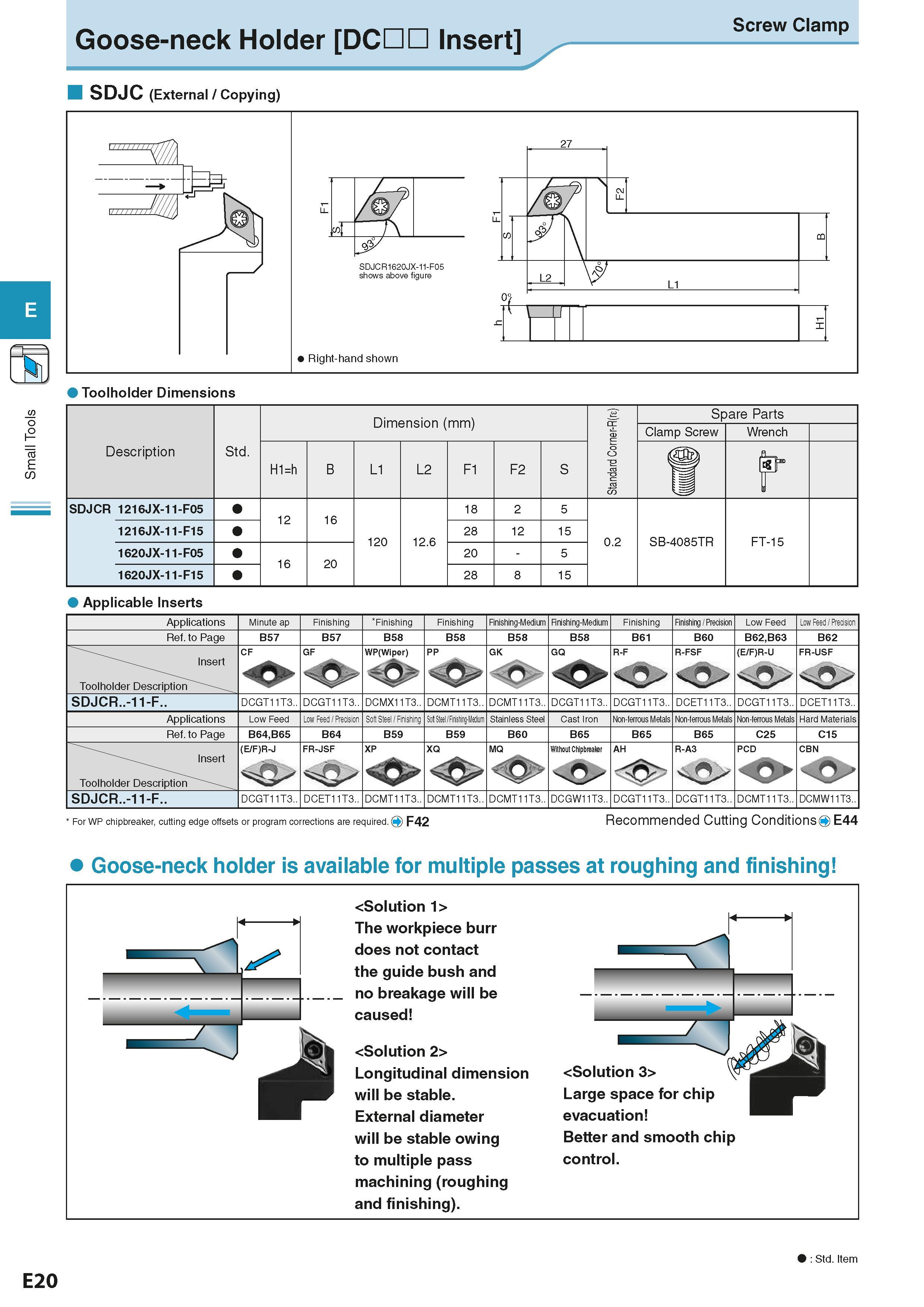

Goose-neck Holder DC Insert SDJC (External / Copying) Screw Clamp Toolholder Dimensions Dimension (mm) Размеры инструмента указаны в мм Standard Corner-R(re) Spare Parts Clamp Screw Wrench Description Обозначение инструмента для заказа Std. H1=h B L1 L2 F1 F2 S u SDJCR 1216JX-11-F05 12 16 18 2 5 1216JX-11-F15 120 12.6 28 12 15 0.2 SB-4085TR FT-15 1620JX-11-F05 16 20 20 - 5 1620JX-11-F15 28 8 15 Applicable Inserts Applications Minute ap Finishing ’Finishing Finishing Finishing-Medium Finishing-Medium Finishing Finishing Precision Low Feed Low Feed / Precision Ref. to Page B57 B57 B58 B58 B58 B58 B61 B60 B62,B63 B62 Insert Toolholder Description'' - CF GF WP(Wiper) PP GK GQ R-F R-FSF (E/F)R-U FR-USF SDJCR..-11-F.. DCGT11T3.. DCGT11T3.. DCMX11T3.. DCMT11T3.. DCMT11T3.. DCGT11T3.. DCGT11T3.. DCET11T3.. DCGT11T3.. DCET11T3.. Applications Low Feed Low Feed / Precision Soft Steel / Finishing SoH Steel / Finishing-Medium Stainless Steel Cast Iron Non-ferrous Metals Non-ferrous Metals Non-ferrous Metals Hard Materials Ref. to Page B64,B65 B64 B59 B59 B60 B65 B65 B65 C25 C15 Insert Toolholder Description'' - (E/F)R-J FR-JSF XP XQ MQ - O - Without Chipbreaker AH R-A3 PCD CBN SDJCR..-11-F.. DCGT11T3.. DCET11T3.. DCMT11T3.. DCMT11T3.. DCMT11T3.. DCGW11T3.. DCGT11T3.. DCGT11T3.. DCMT11T3.. DCMW11T3.. For WP chipbreaker, cutting edge offsets or program corrections are required. O F42 Recommended Cutting ConditionsO E44 Goose-neck holder is available for multiple passes at roughing and finishing The workpiece burr does not contact the guide bush and no breakage will be caused Longitudinal dimension will be stable. External diameter will be stable owing to multiple pass machining (roughing and finishing). Large space for chip evacuation Better and smooth chip control. E20 Std. Item E
