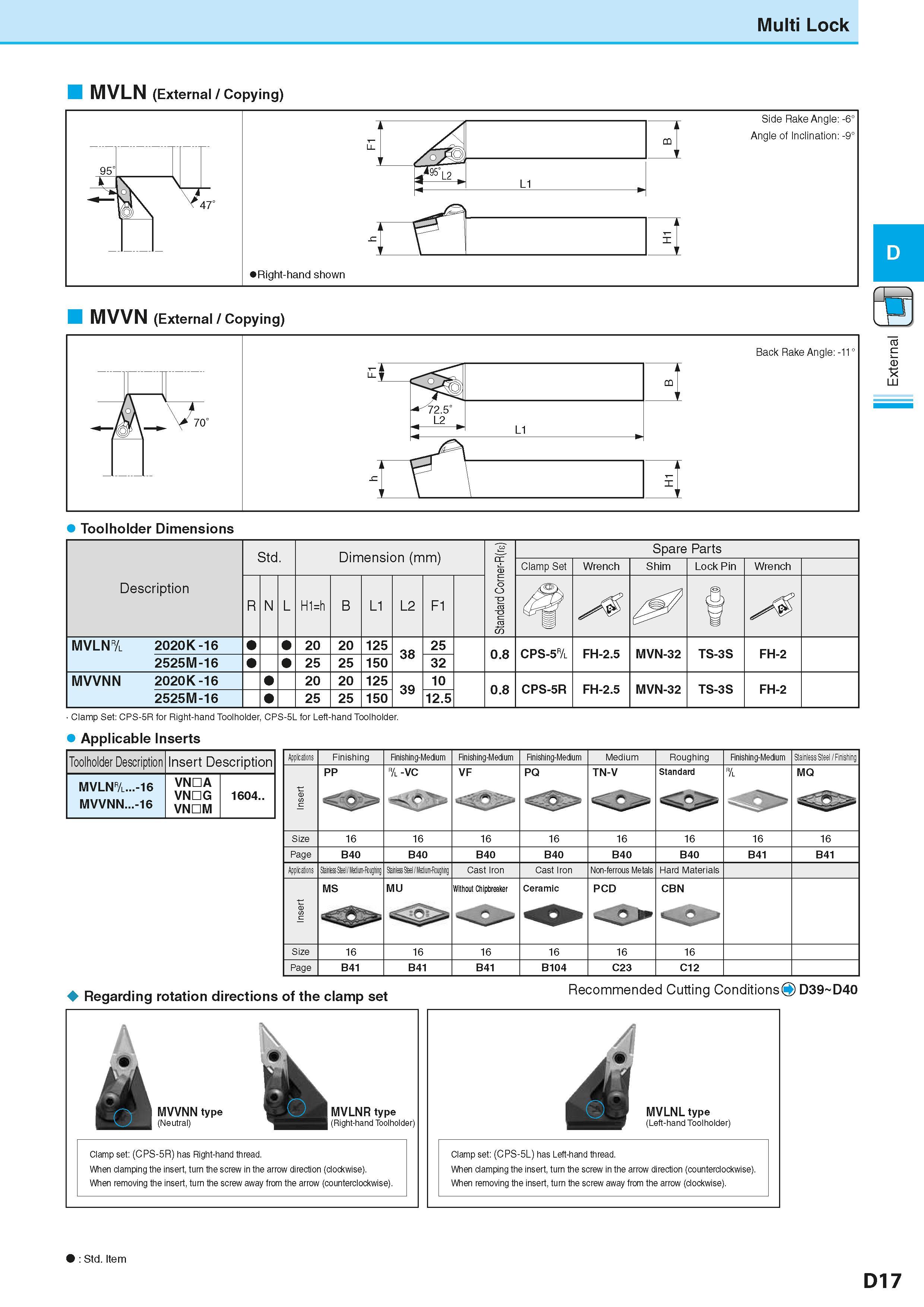

Multi Lock MVLN (External / Copying) MVVN (External / Copying) fl Back Rake Angle: -11° LU D Toolholder Dimensions Clamp Set: CPS-5R for Right-hand Toolholder, CPS-5L for Left-hand Toolholder. Applicable Inserts Toolholder Description Insert Description MVLN&...-16 MVVNN...-16 VNDA VNDG VNDM 1604.. Applications Finishing Finishing-Medium Finishing-Medium Finishing-Medium Medium Roughing Finishing-Medium Stainless Steel / Finishing Insert PP & -VC VF PQ TN-V Standard <£> & MQ Size 16 16 16 16 16 16 16 16 Page B40 B40 B40 B40 B40 B40 B41 B41 Applications State Steel / Medium-Roughing Stainless Steel / Medium-Roughing Cast Iron Cast Iron Non-ferrous Metals Hard Materials Insert MS MU Without Chipbreaker Ceramic PCD CBN Size 16 16 16 16 16 16 Page B41 B41 B41 B104 C23 C12 Regarding rotation directions of the clamp set Flec ded Cuttmg D39 D40 Clamp set: (CPS-5R) has Right-hand thread. When clamping the insert, turn the screw in the arrow direction (clockwise). When removing the insert, turn the screw away from the arrow (counterclockwise). Clamp set: (CPS-5L) has Left-hand thread. When clamping the insert, turn the screw in the arrow direction (counterclockwise). When removing the insert, turn the screw away from the arrow (clockwise). N Std. Item D17
