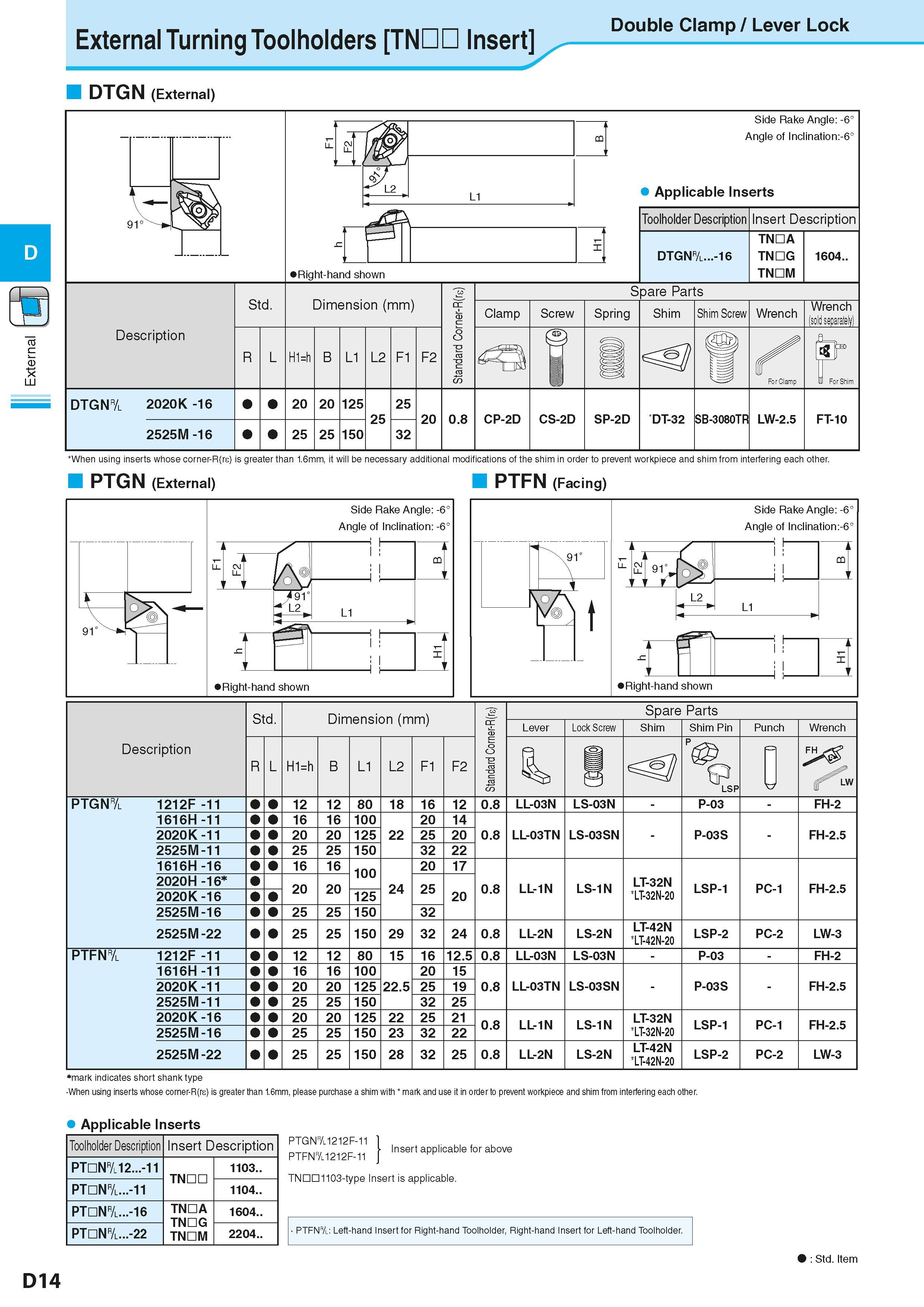

External Turning Toolholders TNDD Insert Double Clamp / Lever Lock DTGN (External) When using inserts whose corner-R(rs) is greater than 1.6mm, it will be necessary additional modifications of the shim in order to prevent workpiece and shim from interfering each other. PTGN (External) PTFN (Facing) When using inserts whose corner-R(rs) is greater than 1.6mm, please purchase a shim with mark and use it in older to prevent workpiece and shim from interfering each other. Applicable Inserts Toolholder Description Insert Description PTDN&12...-11 tndd 1103.. PTDN&...-11 1104.. PTDN&...-16 TNDA TNDG TNDM 1604.. PTDN&...-22 2204.. PTGN&1212F-11 PTFN&1212F-11 Insert applicable for above TNDD1103-type Insert is applicable. PTFN&: Left-hand Insert for Right-hand Toolholder, Right-hand Insert for Left-hand Toolholder. Std. Item D14
