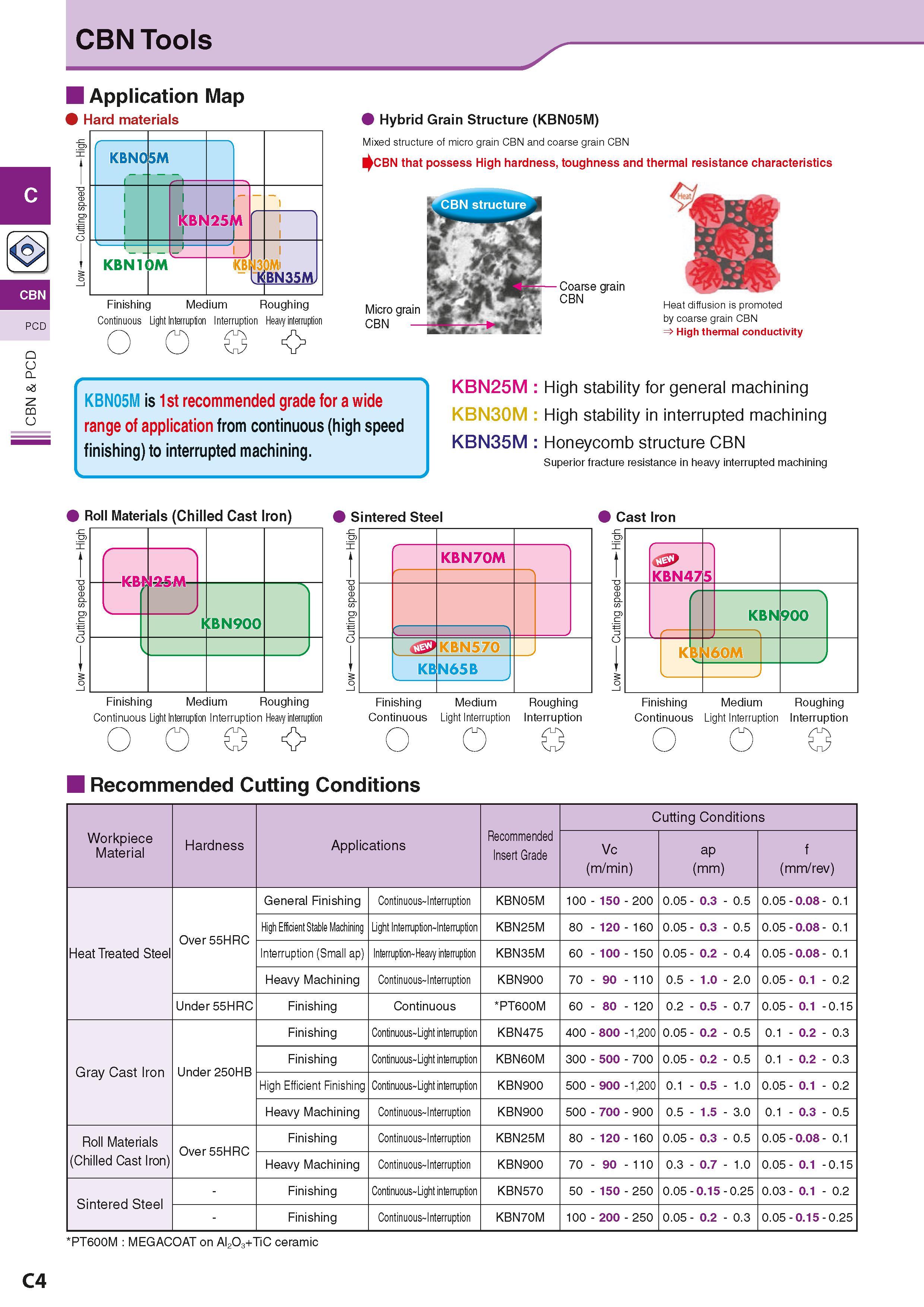

PCD CBN & PCD CBN Tools C CBN Application Map Hard materials £Z t= Continuous Light Interruption interruption Heavy interruption 0 0 3 0 KBN0 i 5M 1 l I l Kbn I25J A i I KBNZ . 0M KB \ l 0Mi BN35MJ Finishing Medium Roughing Hybrid Grain Structure (KBN05M) Mixed structure of micro grain CBN and coarse grain CBN CBN that possess High hardness, toughness and thermal resistance characteristics KBN05M is 1st recommended grade for a wide range of application from continuous (high speed finishing) to interrupted machining. KBN25M High stability for general machining KBN30M High stability in interrupted machining KBN35M Honeycomb structure CBN Superior fracture resistance in heavy interrupted machining Roll Materials (Chilled Cast Iron) KBN25-M- KBN900 "V Sintered Steel Finishing Medium Roughing Continuous Light Interruption interruption Heavy interruption 8 O Cast Iron KBN70M <22 KBN570 KB N65B Finishing Medium Roughing Continuous Light interruption Interruption KBN47 KBN60M KBN 900 Finishing Medium Roughing Continuous Light interruption Interruption Recommended Cutting Conditions Workpiece Material Hardness Applications Recommended Insert Grade Cutting Conditions Vc (m/min) ap (mm) f (mm/rev) Heat Treated Steel Over 55HRC General Finishing Continuous-Interruption KBN05M 100 - 150 - 200 0.05- 0.3 - 0.5 0.05- 0.08 - 0.1 High Efficient Stable Machining Light Interruption-Interruption KBN25M 80 - 120 - 160 0.05- 0.3 - 0.5 0.05- 0.08 - 0.1 Interruption (Small ap) Interruption-Heavy interruption KBN35M 60 - 100 - 150 0.05- 0.2 - 0.4 0.05- 0.08 - 0.1 Heavy Machining Continuous-Interruption KBN900 70 - 90 - 110 0.5 - 1.0 - 2.0 0.05- 0.1 - 0.2 Under 55HRC Finishing Continuous PT600M 60 - 80 - 120 0.2 - 0.5 - 0.7 0.05- 0.1 -0.15 Gray Cast Iron Under 250HB Finishing Continuous-Light interruption KBN475 400 - 800 -1,200 0.05- 0.2 - 0.5 0.1 - 0.2 - 0.3 Finishing Continuous-Light interruption KBN60M 300 - 500 - 700 0.05- 0.2 - 0.5 0.1 - 0.2 - 0.3 High Efficient Finishing Continuous-Light interruption KBN900 500 - 900 -1,200 0.1 - 0.5 - 1.0 0.05- 0.1 - 0.2 Heavy Machining Continuous-Interruption KBN900 500 - 700 - 900 0.5 - 1.5 - 3.0 0.1 - 0.3 - 0.5 Roll Materials (Chilled Cast Iron) Over 55HRC Finishing Continuous-Interruption KBN25M 80 - 120 - 160 0.05- 0.3 - 0.5 0.05- 0.08 - 0.1 Heavy Machining Continuous-Interruption KBN900 70 - 90 - 110 0.3 - 0.7 - 1.0 0.05- 0.1 -0.15 Sintered Steel - Finishing Continuous-Light interruption KBN570 50 - 150 - 250 0.05- 0.15 -0.25 0.03- 0.1 - 0.2 - Finishing Continuous-Interruption KBN70M 100 - 200 - 250 0.05- 0.2 - 0.3 0.05- 0.15 -0.25 PT600M MEGACOAT on Al2O3+TiC ceramic C4
