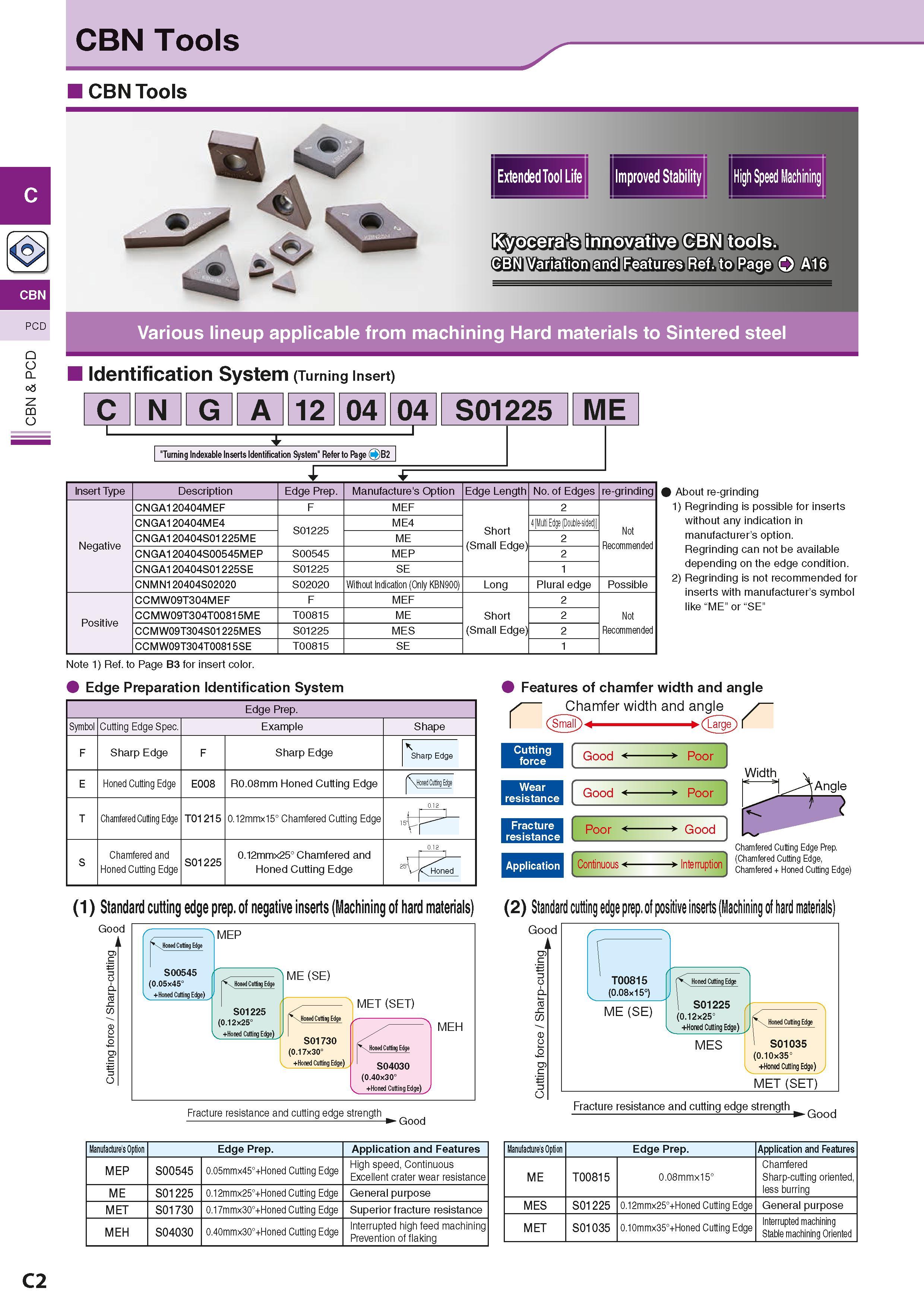

CBN Tools CBN Tools PCD Q O CL o3 Z CD O Kyocera’s innovative CBN tools. Various lineup applicable from machining Hard materials to Sintered steel Identification System (Turning Insert) C N G A 12 04 04 S01225 ME "Turning Indexable Inserts Identification System" Refer to Page QB2 Insert Type Description Edge Prep. Manufacture's Option Edge Length No. of Edges re-grinding Negative CNGA120404MEF F MEF Short (Small Edge) 2 Not Recommended CNGA120404ME4 S01225 ME4 4 Multi Edge (Double-sided) CNGA120404S01225ME ME 2 CNGA120404S00545MEP S00545 MEP 2 CNGA120404S01225SE S01225 SE 1 CNMN120404S02020 S02020 Without Indication (Only KBN900) Long Plural edge Possible Positive CCMW09T304MEF F MEF Short (Small Edge) 2 Not Recommended CCMW09T304T00815ME T00815 ME 2 CCMW09T304S01225MES S01225 MES 2 CCMW09T304T00815SE T00815 SE 1 About re-grinding 1) Regrinding is possible for inserts without any indication in manufacturer’s option. Regrinding can not be available depending on the edge condition. 2) Regrinding is not recommended for inserts with manufacturer’s symbol like “ME" or “SE" Note 1) Ref. to Page B3 for insert color. Edge Preparation Identification System Edge Prep. Symbol Cutting Edge Spec. Example Shape F Sharp Edge F Sharp Edge Sharp Edge E Honed Cutting Edge E008 R0.08mm Honed Cutting Edge \tal Cutting Edge T Chamfered Cutting Edge T01215 0.12mmx15° Chamfered Cutting Edge 0.12 15 P S Chamfered and Honed Cutting Edge S01225 0.12mmx25° Chamfered and Honed Cutting Edge 0.12 O CfHoned Features of chamfer width and angle C Chamfer width and angle Small) < > (Large) Cutting force n Wear resistance n w Fracture resistance i Application i Poor Width Good Poor Poor Good Angle 1 Chamfered Cutting Edge Prep. (Chamfered Cutting Edge, Chamfered + Honed Cutting Edge) (1) Standard cutting edge prep. of negative inserts (Machining of hard materials) Good V MEP v\Honed Cutting Edge S00545 > ME (SE) (0.05x45° Honed Cutting Edge +Honed Cutting Edge) S01225 y\Honed Cutting Edge MET (SET) (0.12x25° r v +Honed Cutting Edge) S01730 (0.17x30° +Honed Cutting Edge) Honed Cutting Edge S04030 (0.40x30° +Honed Cutting Edge) MEH (2) Standard cutting edge prep. of positive inserts (Machining of hard materials) Good C e o cL <5 .c 0 o J5 a c e O T00815 (0.08x15°) ME (SE) Honed Cutting Edge S01225 (0.12x25° +Honed Cutting Edge) MES Honed Cutting Edge S01035 (0.10x35° +Honed Cutting Edge) MET (SET) Fracture resistance and cutting edge strength Fracture resistance and cutting edge strength . Good Good Manufacture's Option Edge Prep. Application and Features MEP S00545 0.05mmx45°+Honed Cutting Edge High speed, Continuous Excellent crater wear resistance ME S01225 0.12mmx25°+Honed Cutting Edge General purpose MET S01730 0.17mmx30°+Honed Cutting Edge Superior fracture resistance MEH S04030 0.40mmx30°+Honed Cutting Edge Interrupted high feed machining Prevention of flaking Manufacture's Option Edge Prep. Application and Features ME T00815 0.08mmx15° Chamfered Sharp-cutting oriented, less burring MES S01225 0.12mmx25°+Honed Cutting Edge General purpose MET S01035 0.10mmx35°+Honed Cutting Edge Interrupted machining Stable machining Oriented C2
