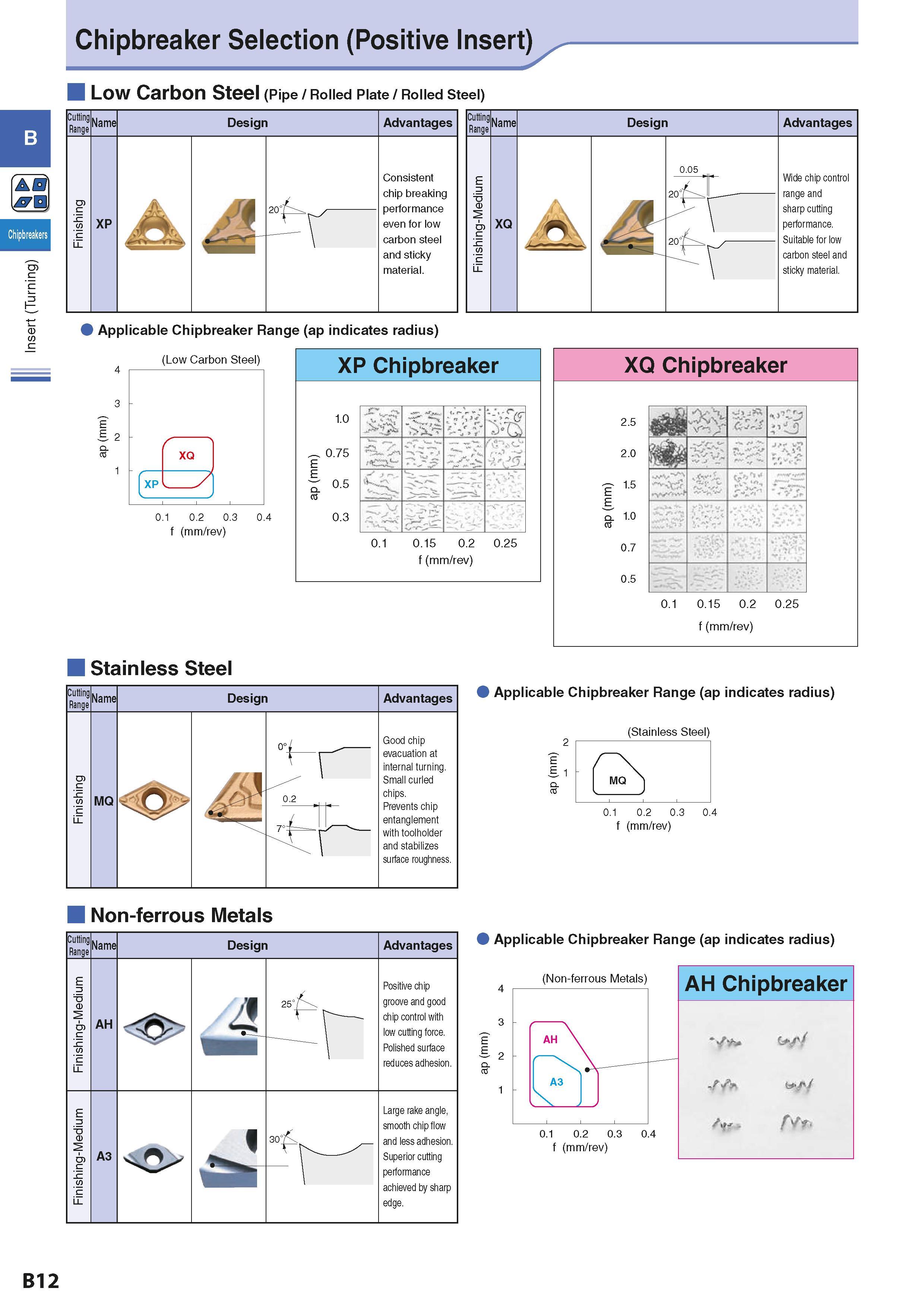

Insert (Turning) B 0 jrn Chipbreaker Selection (Positive Insert) Low Carbon Steel (Pipe / Rolled Plate / Rolled Steel) Cutting Range Name XP Design 20° Advantages Consistent chip breaking performance even for low carbon steel and sticky material. Cutting Range Name XQ Design 20° Advantages Wide chip control range and sharp cutting performance. Suitable for low carbon steel and sticky material. Applicable Chipbreaker Range (ap indicates radius) (Low Carbon Steel) 0.1 0.2 0.3 0.4 f (mm/rev) XP Chipbreaker XQ Chipbreaker Stainless Steel Cutting Range Name MQ Design Advantages Good chip evacuation at internal turning. Small curled chips. Prevents chip entanglement with toolholder and stabilizes surface roughness. Applicable Chipbreaker Range (ap indicates radius) (Stainless Steel) 2 - "E . 1 Q. a 0.4 MQ 0.1 0.2 0.3 f (mm/rev) Non-ferrous Metals Cutting Range Name AH A3 Design Advantages Positive chip groove and good chip control with low cutting force. Polished surface reduces adhesion. Large rake angle, smooth chip flow and less adhesion. Superior cutting performance achieved by sharp edge. Applicable Chipbreaker Range (ap indicates radius) (Non-ferrous Metals) X 0.1 0.2 0.3 0.4 f (mm/rev) 20 3 2 3 2 30 B12
