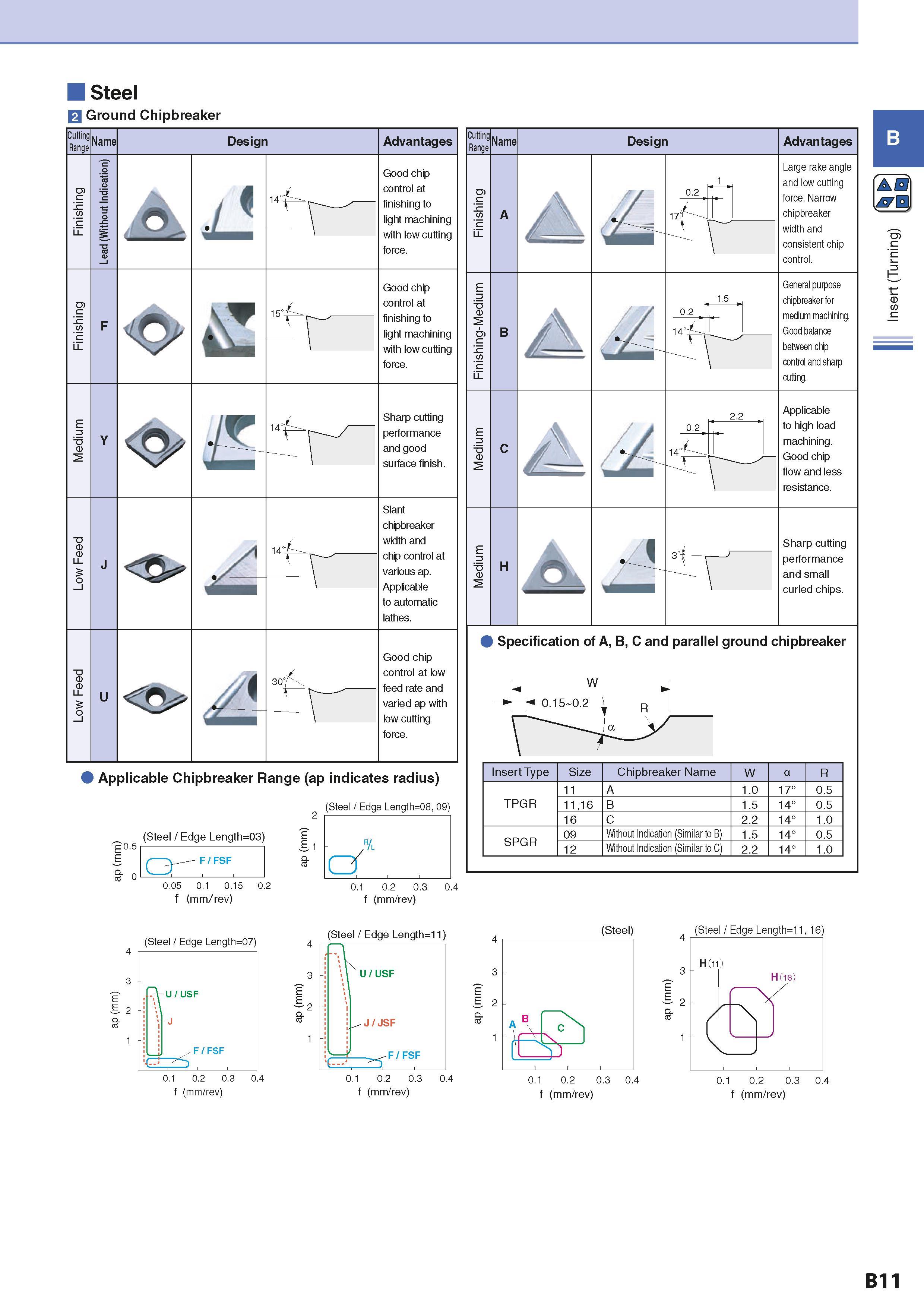

Steel 2 Ground Chipbreaker Cutting Range Name Design £ Advantages Good chip control at finishing to light machining with low cutting force. Good chip control at finishing to light machining with low cutting force. Sharp cutting performance and good surface finish. Slant chipbreaker width and chip control at various ap. Applicable to automatic lathes. Good chip control at low feed rate and varied ap with low cutting force. Applicable Chipbreaker Range (ap indicates radius) (Steel / Edge Length=08, 09) (Steel / Edge Length=03) £0.5 £ F / FSF i=i & 0.05 0.1 0.15 0.2 f (mm/rev) Cutting Range Name A Design A A & Advantages Large rake angle and low cutting force. Narrow chipbreaker width and consistent chip control. General purpose chipbreaker for medium machining. Good balance between chip control and sharp cutting. Applicable to high load machining. Good chip flow and less resistance. Sharp cutting performance and small curled chips. Specification of A, B, C and parallel ground chipbreaker Insert Type Size Chipbreaker Name W a R TPGR 11 A 1.0 17° 0.5 11,16 B 1.5 14° 0.5 16 C 2.2 14° 1.0 SPGR 09 Without Indication (Similar to B) 1.5 14° 0.5 12 Without Indication (Similar to C) 2.2 14° 1.0 0.1 0.2 0.3 0.4 f (mm/rev) (Steel / Edge Length=07) U/USF 0.1 0.2 0.3 0.4 f (mm/rev) f (mm/rev) f (mm/rev) f (mm/rev) 1.5 15 F B 14 Y J H 30 U 0 4 3 2 j F / FSF B11 Insert (Turning)
