134 Каталог KYOCERA 2016 Инструмент режущий станочный Пластины Резцы Фрезы Сверла Стр.B104

Каталог KYOCERA 2016 Режущий инструмент для станков Стр. B104 0134 Lab2u

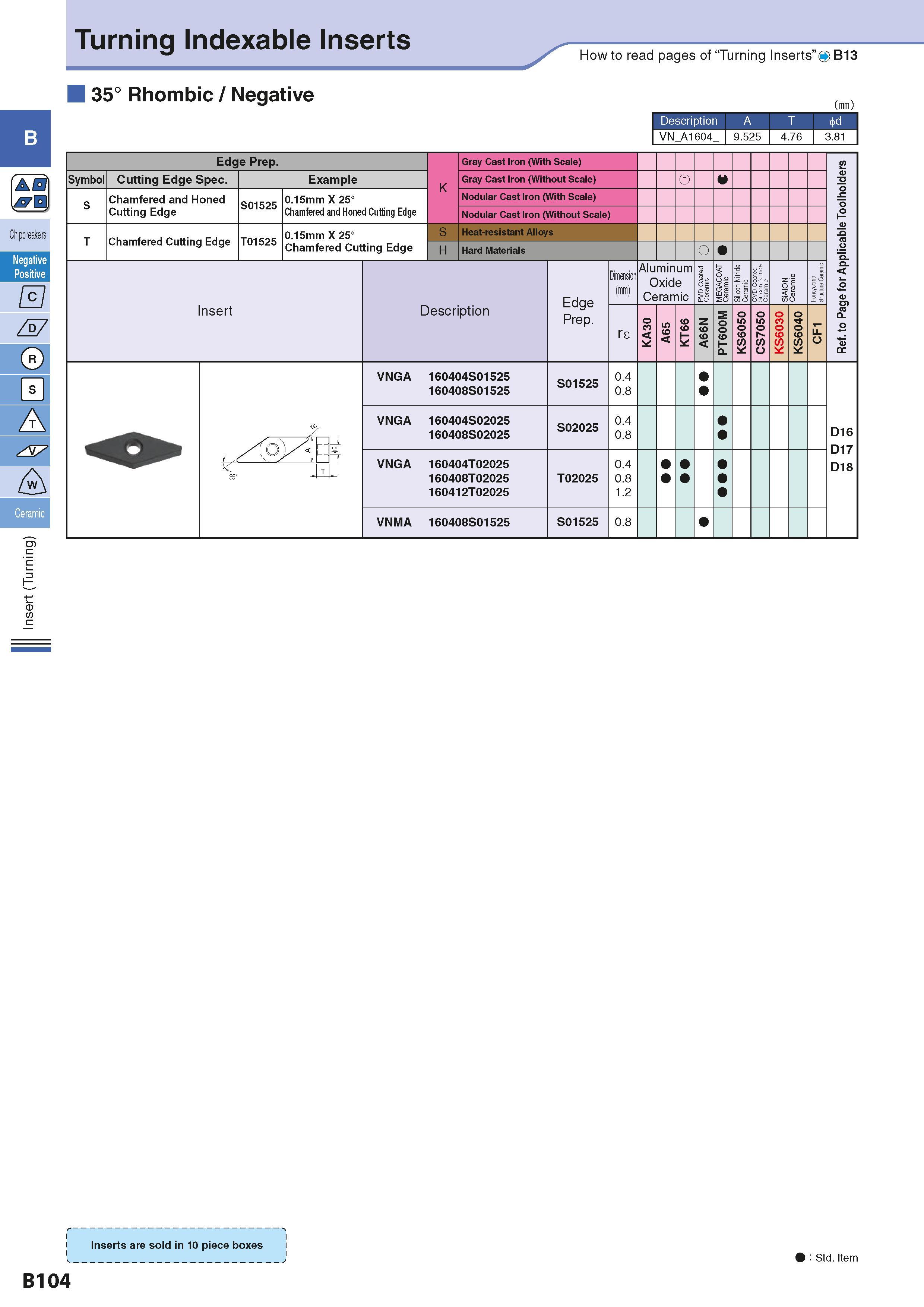

Turning Indexable Inserts 35° Rhombic / Negative How to read pages of “Turning Inserts” 4 B13 (mm) Description A T i d VN A1604 9.525 4.76 3.81 0 jrn Ze7 0 A A Symbol Edge Prep. S Cutting Edge Spec. Chamfered and Honed Cutting Edge Chamfered Cutting Edge Example S01525 T01525 0.15mm X 25° Chamfered and Honed Cutting Edge 0.15mm X 25° Chamfered Cutting Edge Insert Gray Cast Iron (With Scale) Gray Cast Iron (Without Scale) Nodular Cast Iron (With Scale) Nodular Cast Iron (Without Scale) Heat-resistant Alloys Hard Materials Description VNGA 160404S01525 160408S01525 VNGA 160404S02025 160408S02025 VNGA 160404T02025 160408T02025 160412T02025 VNMA 160408S01525 Dimension Edge Prep. S01525 S02025 T02025 S01525 0 Aluminum Oxide Ceramic re 0.4 0.8 0.4 0.8 0.4 0.8 1.2 O SI Q C S2 o o Q O D16 D17 D18 e s B K S T H Inserts are sold in 10 piece boxes i J Std. Item B104
