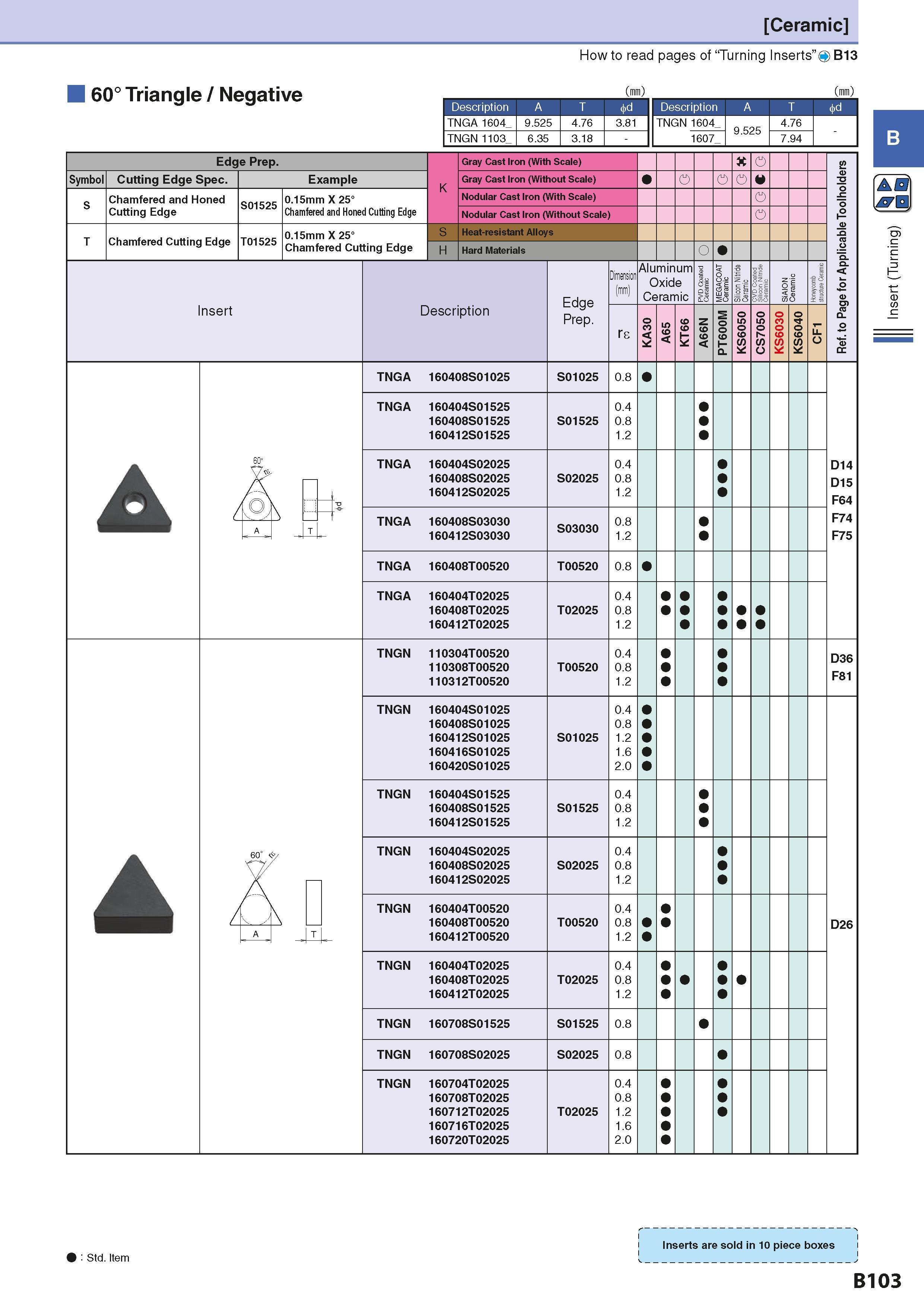

Ceramic How to read pages of “Turning Inserts” 4 B13 60° Triangle / Negative Description A T TNGA 1604 TNGN 1103 9.525 6.35 4.76 3.18 (m) 3.81 (m) Description A T TNGN 1604 1607 9.525 4.76 7.94 Edge Prep. Symbol Cutting Edge Spec. Chamfered and Honed Cutting Edge Chamfered Cutting Edge Example S01525 T01525 0.15mm X 25° Chamfered and Honed Cutting Edge 0.15mm X 25° Chamfered Cutting Edge Insert Gray Cast Iron (With Scale) Gray Cast Iron (Without Scale) Nodular Cast Iron (With Scale) Nodular Cast Iron (Without Scale) Heat-resistant Alloys Hard Materials Description Dimension Edge Prep. Aluminum Oxide Ceramic re O SI T Q C S2 o o Q O A TNGA 160408S01025 S01025 0.8 TNGA 160404S01525 160408S01525 160412S01525 S01525 0.4 0.8 1.2 60- 2 TNGA 160404S02025 160408S02025 160412S02025 S02025 0.4 0.8 1.2 TNGA 160408S03030 160412S03030 S03030 0.8 1.2 D14 D15 F64 F74 F75 TNGA 160408T00520 T00520 0.8 TNGA 160404T02025 160408T02025 160412T02025 T02025 0.4 0.8 1.2 TNGN 110304T00520 110308T00520 110312T00520 T00520 0.4 0.8 1.2 D36 F81 TNGN 160404S01025 160408S01025 160412S01025 160416S01025 160420S01025 S01025 0.4 0.8 1.2 1.6 2.0 TNGN 160404S01525 160408S01525 160412S01525 S01525 0.4 0.8 1.2 TNGN \ A 160404S02025 160408S02025 160412S02025 S02025 0.4 0.8 1.2 TNGN 160404T00520 160408T00520 160412T00520 T00520 0.4 0.8 1.2 D26 TNGN 160404T02025 160408T02025 160412T02025 T02025 0.4 0.8 1.2 TNGN 160708S01525 S01525 0.8 TNGN 160708S02025 S02025 0.8 TNGN 160704T02025 160708T02025 160712T02025 160716T02025 160720T02025 T02025 0.4 0.8 1.2 1.6 2.0 K S S T H A T T i Inserts are sold in 10 piece boxes 9 Std. Item L B103
