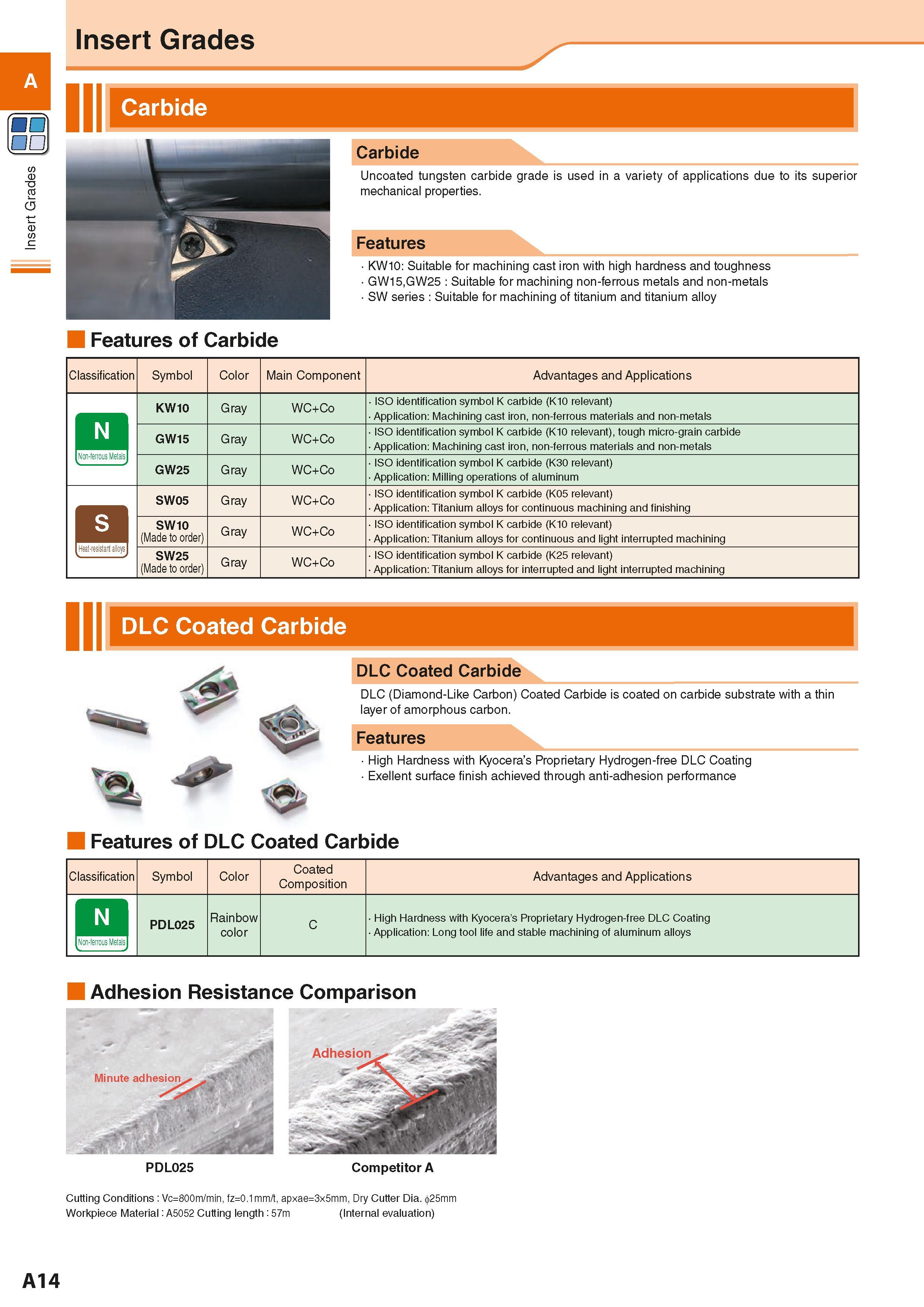

Insert Grades (SO Insert Grades Carbide Carbide Uncoated tungsten carbide grade is used in a variety of applications due to its superior mechanical properties. Features KW10: Suitable for machining cast iron with high hardness and toughness GW15,GW25 Suitable for machining non-ferrous metals and non-metals SW series Suitable for machining of titanium and titanium alloy Features of Carbide Classification Symbol Color Main Component Advantages and Applications KW10 Gray WC+Co ISO identification symbol K carbide (K10 relevant) Application: Machining cast iron, non-ferrous materials and non-metals GW15 Gray WC+Co ISO identification symbol K carbide (K10 relevant), tough micro-grain carbide Application: Machining cast iron, non-ferrous materials and non-metals GW25 Gray WC+Co ISO identification symbol K carbide (K30 relevant) Application: Milling operations of aluminum SW05 Gray WC+Co ISO identification symbol K carbide (K05 relevant) Application: Titanium alloys for continuous machining and finishing SW10 (Made to order) Gray WC+Co ISO identification symbol K carbide (K10 relevant) Application: Titanium alloys for continuous and light interrupted machining SW25 (Made to order) Gray WC+Co ISO identification symbol K carbide (K25 relevant) Application: Titanium alloys for interrupted and light interrupted machining DLC Coated Carbide Sl Features of DLC Coated Carbide DLC Coated Carbide DLC (Diamond-Like Carbon) Coated Carbide is coated on carbide substrate with a thin layer of amorphous carbon. Features High Hardness with Kyocera’s Proprietary Hydrogen-free DLC Coating Exellent surface finish achieved through anti-adhesion performance Classification Symbol Color Coated Composition Advantages and Applications Non-ferrous Metals PDL025 Rainbow color C High Hardness with Kyocera’s Proprietary Hydrogen-free DLC Coating Application: Long tool life and stable machining of aluminum alloys Adhesion Resistance Comparison - Minute adhesion V- v PDL025 Competitor A Cutting Conditions Vc=800m/min, fz=0.1mm/t, apxae=3x5mm, Dry Cutter Dia. 25mm Workpiece Material: A5052 Cutting length 57m (Internal evaluation) A14
