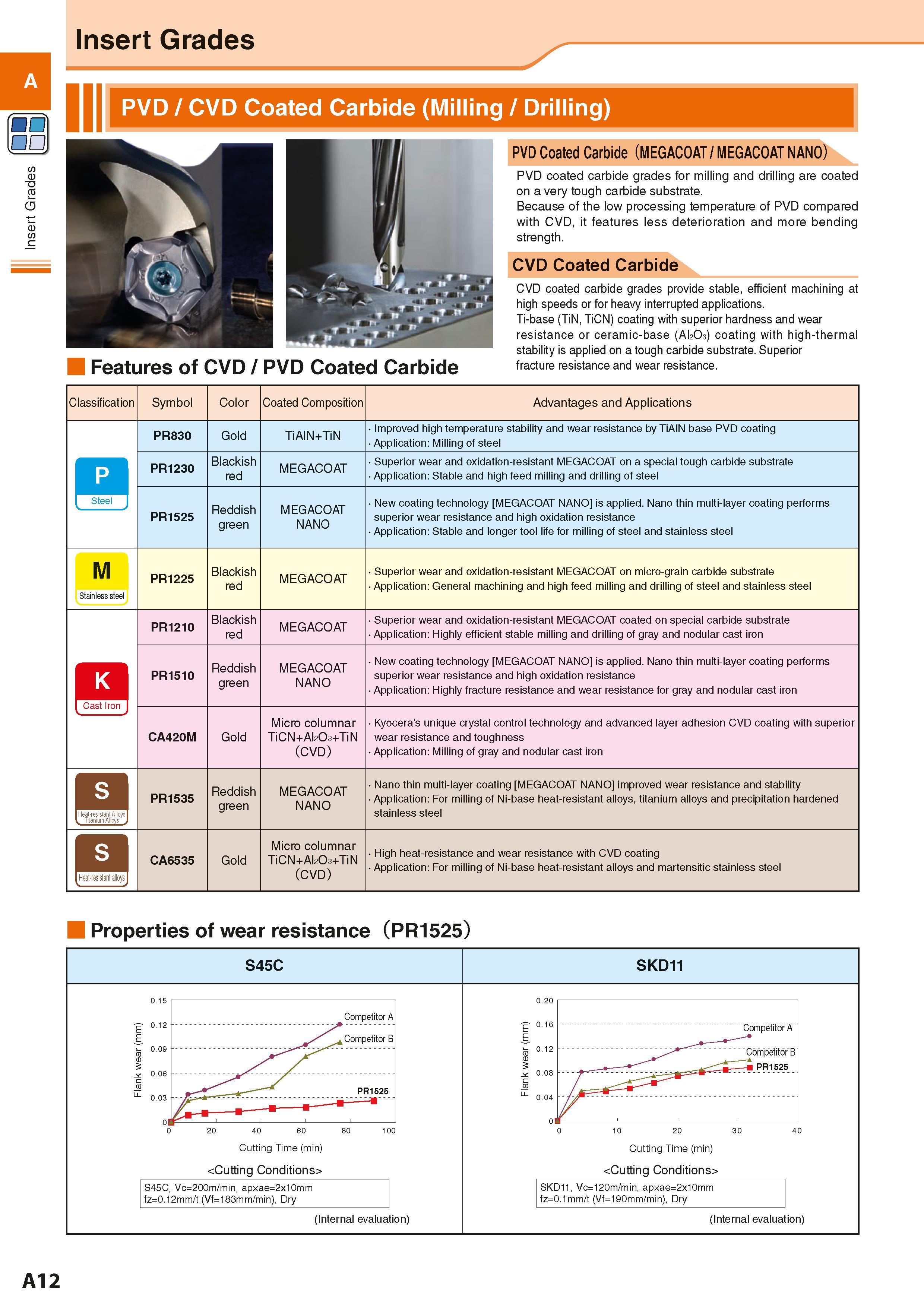

PO Insert Grades Insert Grades PVD / CVD Coated Carbide (Milling / Drilling) Features of CVD / PVD Coated Carbide PVD Coated Carbide (MEGACOAT / MEGACOAT NANO) PVD coated carbide grades for milling and drilling are coated on a very tough carbide substrate. Because of the low processing temperature of PVD compared with CVD, it features less deterioration and more bending strength. CVD Coated Carbide CVD coated carbide grades provide stable, efficient machining at high speeds or for heavy interrupted applications. Ti-base (TiN, TiCN) coating with superior hardness and wear resistance or ceramic-base (M2O3) coating with high-thermal stability is applied on a tough carbide substrate. Superior fracture resistance and wear resistance. Classification Symbol Color Coated Composition Advantages and Applications p Steel PR830 Gold TiAlN+TiN Improved high temperature stability and wear resistance by TiAlN base PVD coating Application: Milling of steel PR1230 Blackish red MEGACOAT Superior wear and oxidation-resistant MEGACOAT on a special tough carbide substrate Application: Stable and high feed milling and drilling of steel PR1525 Reddish green MEGACOAT NANO New coating technology MEGACOAT NANO is applied. Nano thin multi-layer coating performs superior wear resistance and high oxidation resistance Application: Stable and longer tool life for milling of steel and stainless steel M Stainless steel PR1225 Blackish red MEGACOAT Superior wear and oxidation-resistant MEGACOAT on micro-grain carbide substrate Application: General machining and high feed milling and drilling of steel and stainless steel K Cast Iron PR1210 Blackish red MEGACOAT Superior wear and oxidation-resistant MEGACOAT coated on special carbide substrate Application: Highly efficient stable milling and drilling of gray and nodular cast iron PR1510 Reddish green MEGACOAT NANO New coating technology MEGACOAT NANO is applied. Nano thin multi-layer coating performs superior wear resistance and high oxidation resistance Application: Highly fracture resistance and wear resistance for gray and nodular cast iron CA420M Gold Micro columnar TiCN+AbOa+TiN (CVD) Kyocera's unique crystal control technology and advanced layer adhesion CVD coating with superior wear resistance and toughness Application: Milling of gray and nodular cast iron Heat-resistant Alloys Titanium Alloys . PR1535 Reddish green MEGACOAT NANO Nano thin multi-layer coating MEGACOAT NANO improved wear resistance and stability Application: For milling of Ni-base heat-resistant alloys, titanium alloys and precipitation hardened stainless steel ISI Heat-resistant alloys CA6535 Gold Micro columnar TiCN+AlaOa+TiN (CVD) High heat-resistance and wear resistance with CVD coating Application: For milling of Ni-base heat-resistant alloys and martensitic stainless steel Properties of wear resistance (PR1525) S45C SKD11 0.15 'H' 0.12 JE 1- 0.09 S 0.06 c 0.03 Cutting Time (min) (Internal evaluation) Competitor A 0. 20 m) 0. 1 6 is 012 e 0.08 Competitor B Competitor A Competitor B PR1525 PR1525 0 r. . Cutting Time (min) S45C, Vc=200m/min, apxae=2x10mm fz=0.12mm/t (Vf=183mm/min), Dry SKD11, Vc=120m/min, apxae=2x10mm fz=0.1mm/t (Vf=190mm/min), Dry (Internal evaluation) 0 0 100 0 10 A12
