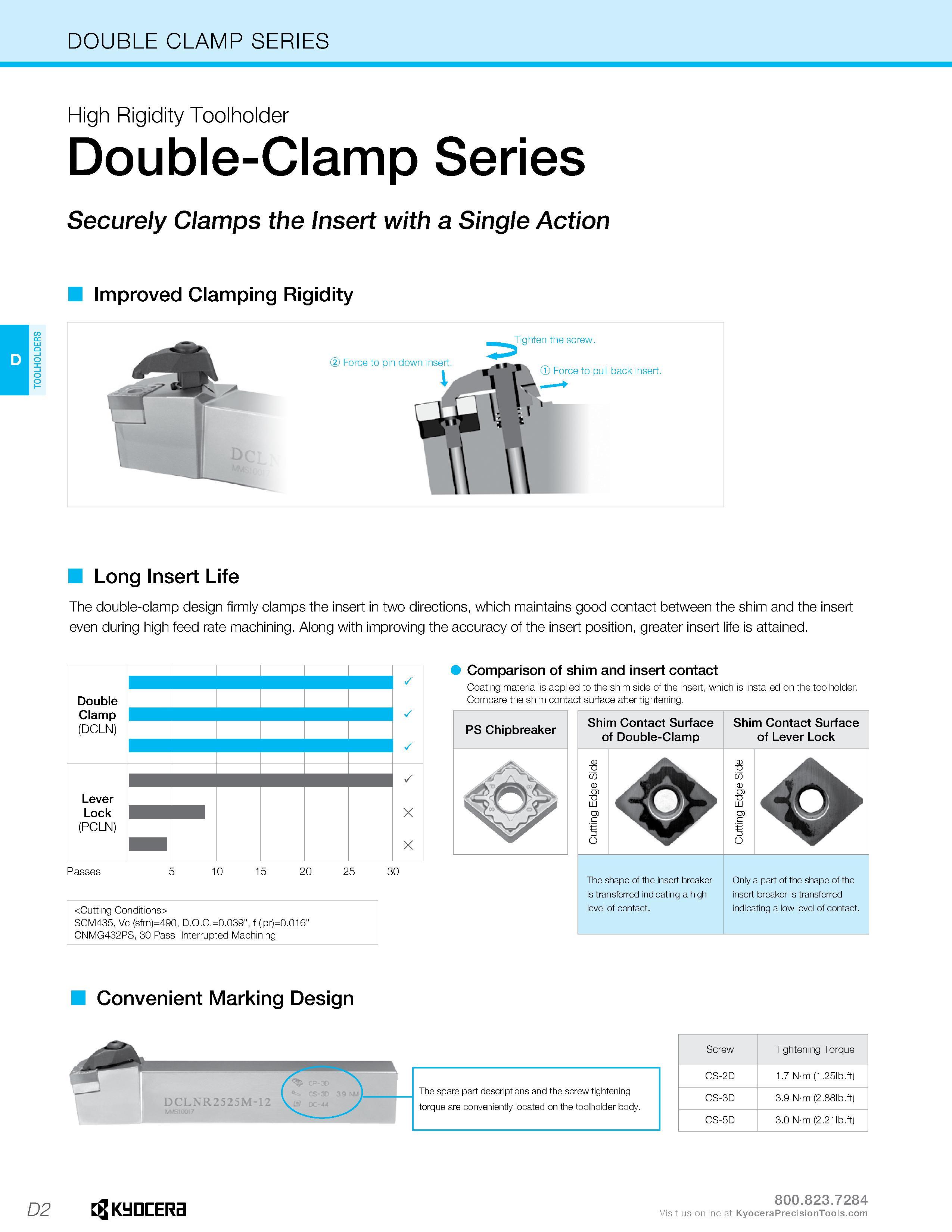

TOOLHOLDERS DOUBLE CLAMP SERIES High Rigidity Toolholder Double-Clamp Series Securely Clamps the Insert with a Single Action Improved Clamping Rigidity Long Insert Life The double-clamp design firmly clamps the insert in two directions, which maintains good contact between the shim and the insert even during high feed rate machining. Along with improving the accuracy of the insert position, greater insert life is attained. Double Clamp (DCLN) SCM435, Vc (sfm)=490, D.0.C.=0.039", f (ipr)=0.016" CNMG432PS, 30 Pass Interrupted Machining Comparison of shim and insert contact Coating material is applied to the shim side of the insert, which is installed on the toolholder. Compare the shim contact surface after tightening. Shim Contact Surface of Double-Clamp Shim Contact Surface of Lever Lock Cutting Edge Side Cutting Edge Side The shape of the insert breaker is transferred indicating a high level of contact. Only a part of the shape of the insert breaker is transferred indicating a low level of contact. Convenient Marking Design Screw Tightening Torque CS-2D 1.7 N-m (1.25Ib.ft) CS-3D 3.9 N-m (2.88Ib.ft) CS-5D 3.0 N-m (2.21Ib.ft) D2 Kyocera
