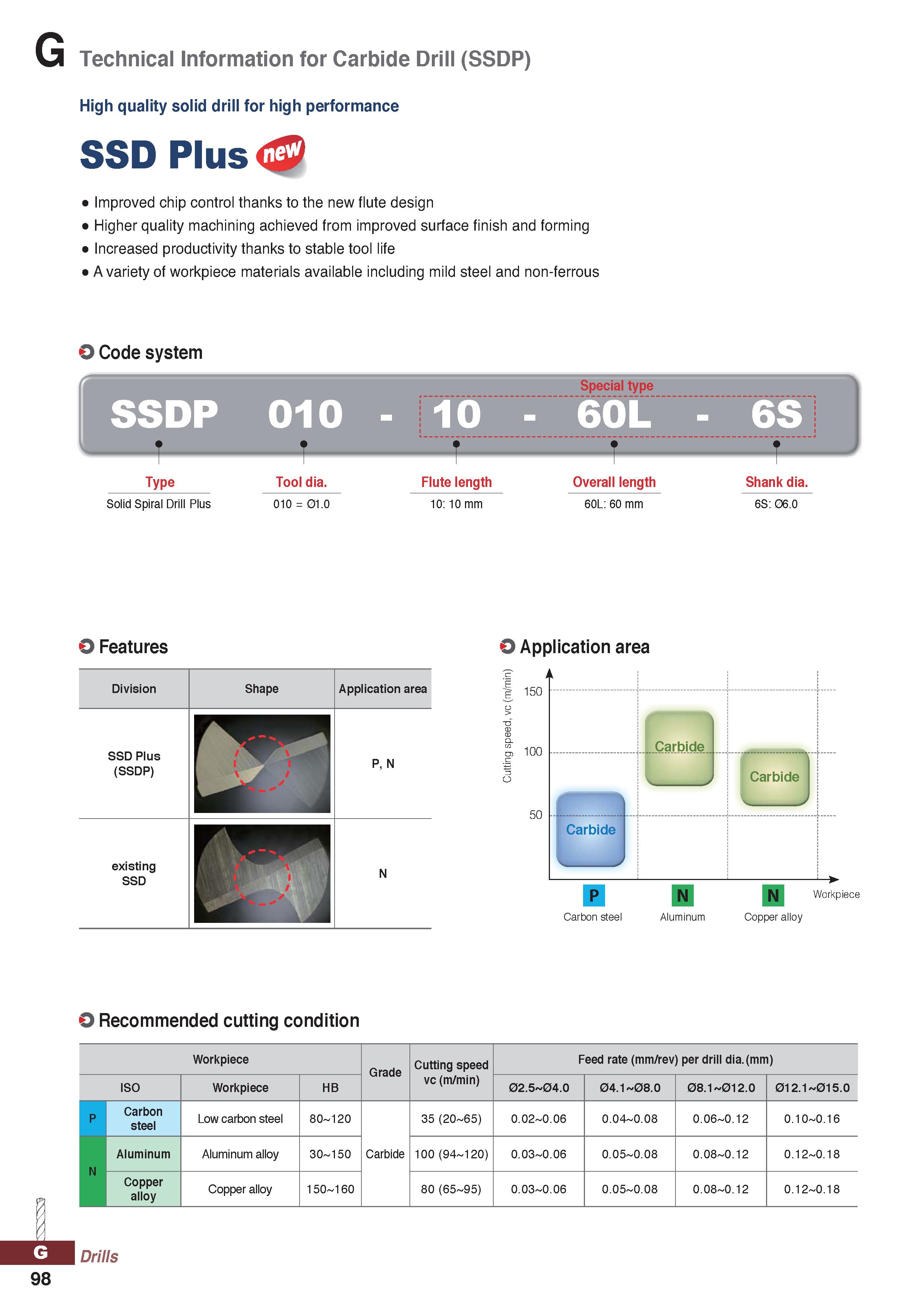

Technical Information for Carbide Drill (SSDP) High quality solid drill for high performance SSD Plus Improved chip control thanks to the new flute design Higher quality machining achieved from improved surface finish and forming Increased productivity thanks to stable tool life A variety of workpiece materials available including mild steel and non-ferrous Code system SSDP 010 Type Solid Spiral Drill Plus 10 Tool dia. 010 = 01.0 Flute length 10: 10 mm Special ty 601 6S Overall length 60L: 60 mm Shank dia. 6S: 06.0 Features Division SSD Plus (SSDP) existing SSD Shape Application area P, N Application area 150 100 5C Carbon steel Aluminum Copper alloy N Recommended cutting condition Workpiece Grade Cutting speed vc (m/min) Feed rate (mm/rev) per drill dia. (mm) ISO Workpiece hb 02.5 04.0 04.1 08.0 08.1 012.0 012.1 015.0 P Carbon steel Low carbon steel 80-120 Carbide 35 (20-65) 0.02-0.06 0.04-0.08 0.06-0.12 0.10-0.16 N Aluminum Aluminum alloy 30-150 100 (94-120) 0.03-0.06 0.05-0.08 0.08-0.12 0.12-0.18 Copper alloy Copper alloy 150-160 80 (65-95) 0.03-0.06 0.05-0.08 0.08-0.12 0.12-0.18 .1 98 Drills
