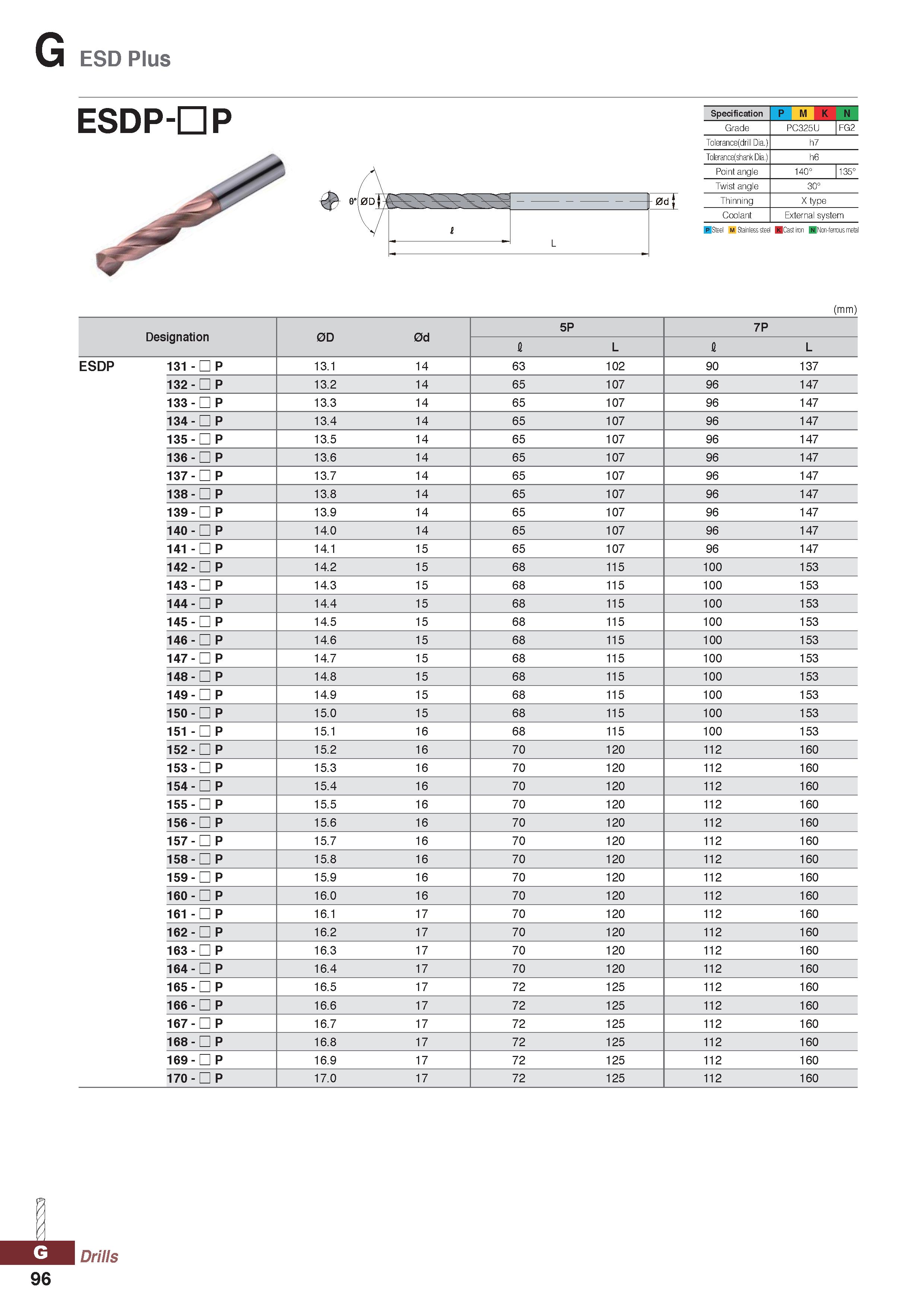

G ESD Plus ESDP-D P 0d Specification P M K N Grade PC325U FG2 Tolerance(drill Dia.) h7 Tolerance(shank Dia.) h6 Point angle 140° 135° Twist angle 30° Thinning X type Coolant External system Steel m Stainless steel Cast iron Ncn-ferrous metal (mm) Designation 0D 0d 5P 7P 1 L 1 L ESDP 131 - P 13.1 14 63 102 90 137 132 - P 13.2 14 65 107 96 147 133 - P 13.3 14 65 107 96 147 134 - P 13.4 14 65 107 96 147 135 - P 13.5 14 65 107 96 147 136 - P 13.6 14 65 107 96 147 137 - P 13.7 14 65 107 96 147 138 - P 13.8 14 65 107 96 147 139 - P 13.9 14 65 107 96 147 140 - P 14.0 14 65 107 96 147 141 - P 14.1 15 65 107 96 147 142 - P 14.2 15 68 115 100 153 143 - P 14.3 15 68 115 100 153 144 - P 14.4 15 68 115 100 153 145 - P 14.5 15 68 115 100 153 146 - P 14.6 15 68 115 100 153 147 - P 14.7 15 68 115 100 153 148 - P 14.8 15 68 115 100 153 149 - P 14.9 15 68 115 100 153 150 - P 15.0 15 68 115 100 153 151 - P 15.1 16 68 115 100 153 152 - P 15.2 16 70 120 112 160 153 - P 15.3 16 70 120 112 160 154 - P 15.4 16 70 120 112 160 155 - P 15.5 16 70 120 112 160 156 - P 15.6 16 70 120 112 160 157 - P 15.7 16 70 120 112 160 158 - P 15.8 16 70 120 112 160 159 - P 15.9 16 70 120 112 160 160 - P 16.0 16 70 120 112 160 161 - P 16.1 17 70 120 112 160 162 - P 16.2 17 70 120 112 160 163 - P 16.3 17 70 120 112 160 164 - P 16.4 17 70 120 112 160 165 - P 16.5 17 72 125 112 160 166 - P 16.6 17 72 125 112 160 167 - P 16.7 17 72 125 112 160 168 - P 16.8 17 72 125 112 160 169 - P 16.9 17 72 125 112 160 170 - P 17.0 17 72 125 112 160 JL Drills 96
