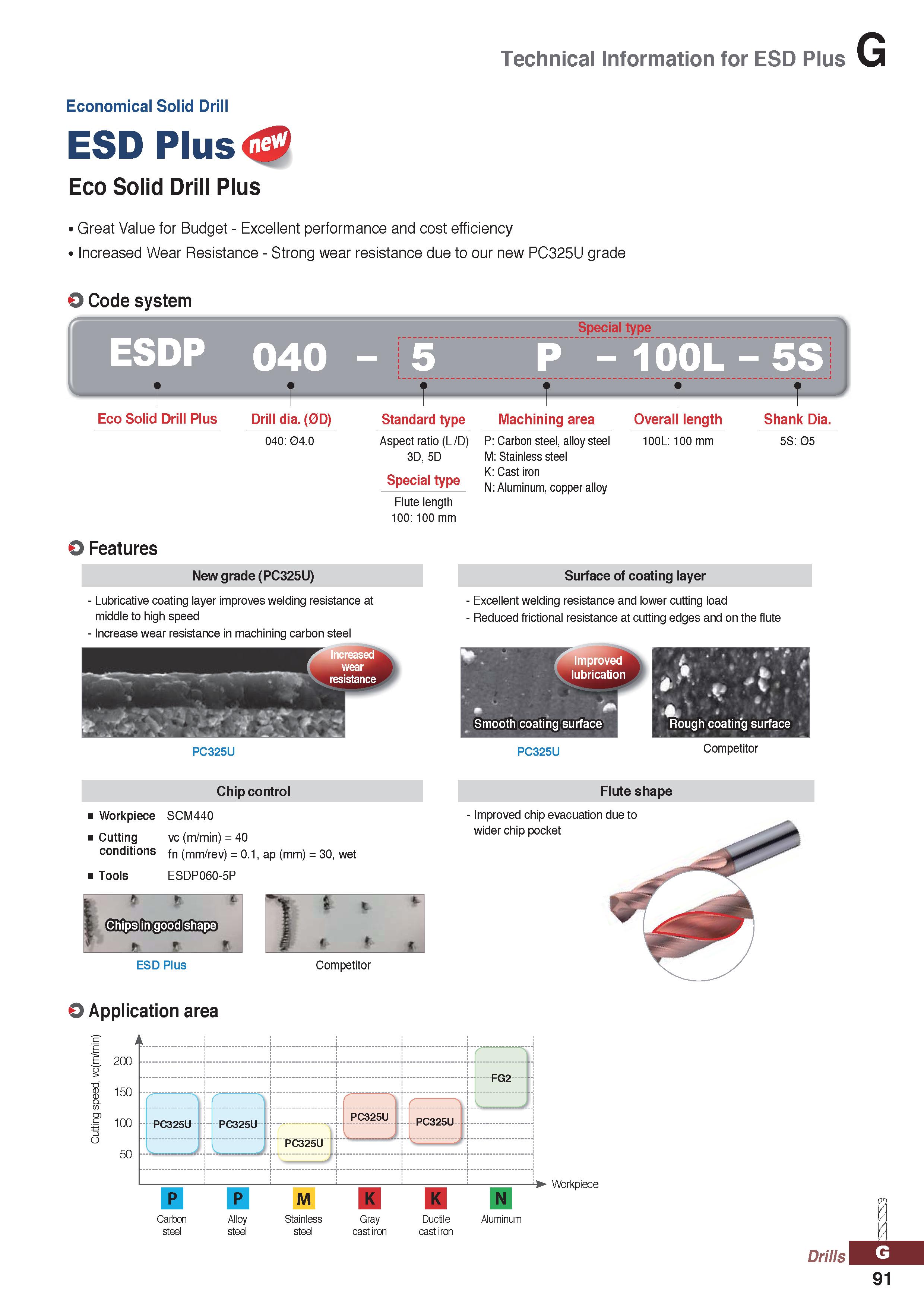

Technical Information for ESD Plus Economical Solid Drill ESD Plus Eco Solid Drill Plus ' Great Value for Budget - Excellent performance and cost efficiency ' Increased Wear Resistance - Strong wear resistance due to our new PC325U grade O Code system ESDP 040 - P -100L-5S Eco Solid Drill Plus Drill dia. (0D) Standard type Machining area O4O: 04.O Aspect ratio (L /D) 3D, 5D Special type Flute length 1OO: 1OO mm P: Carbon steel, alloy steel M: Stainless steel K: Cast iron N: Aluminum, copper alloy Overall length 1OOL: 1OO mm Shank Dia. 5S: 05 O Features New grade (PC325U) - Lubricative coating layer improves welding resistance at middle to high speed - Increase wear resistance in machining carbon steel PC325U Chip control Workpiece SCM44O Cuttin g vc (m/min) = 40 conditio ns fn (mm/rev) = O.1, ap (mm) = 3O, wet Tools ESDPO6O-5P Chips in good shape Jr S 1 ESD Plus Competitor Surface of coating layer - Excellent welding resistance and lower cutting load - Reduced frictional resistance at cutting edges and on the flute A „ V . A L Rough coating surface PC325U Competitor Flute shape Improved chip evacuation due to wider chip pocket O Application area o > TD CD m Carbon steel Alloy Stainless Gray Ductile Aluminum steel steel cast iron cast iron Drills J. 91 5
