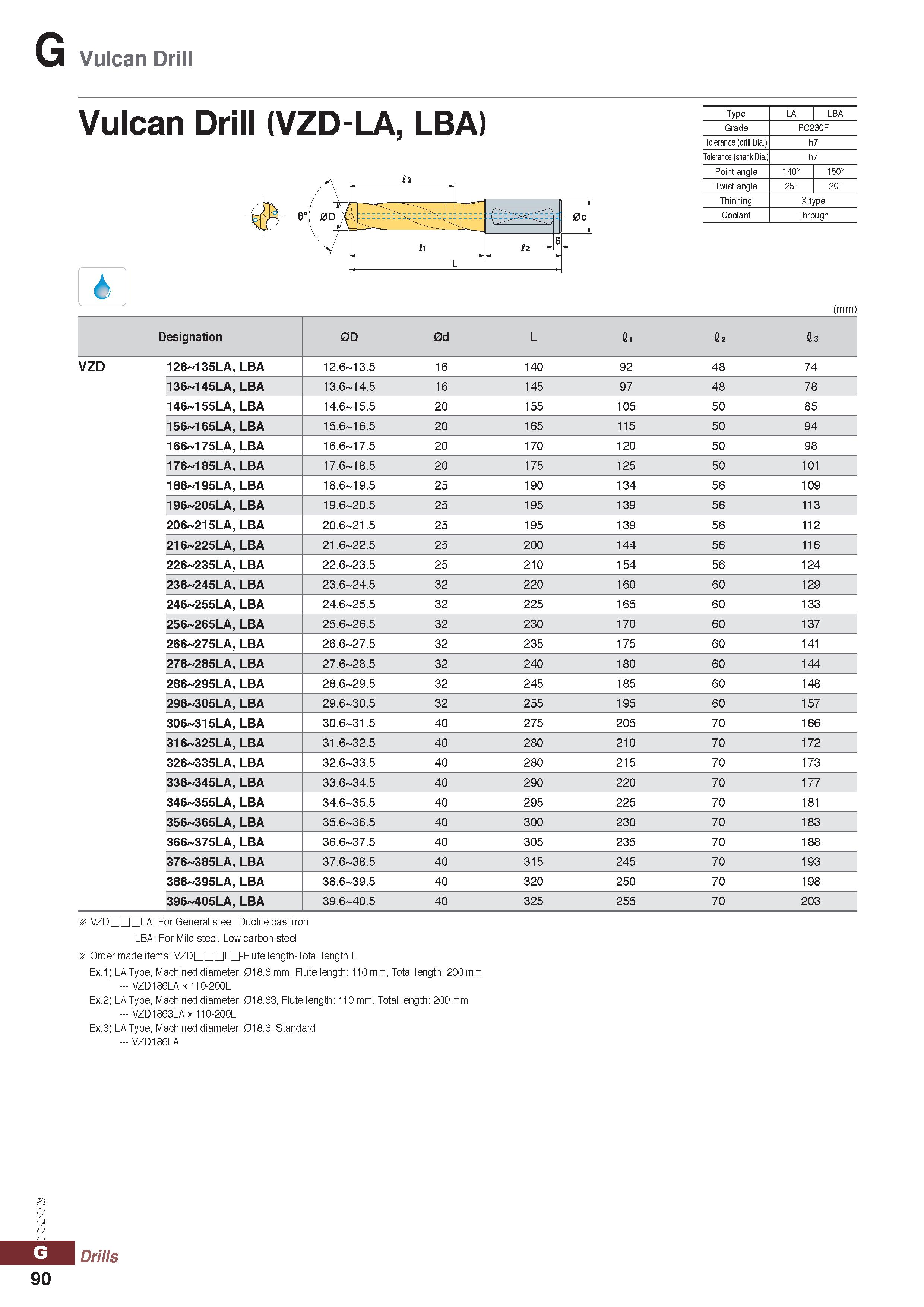

Vulcan Drill Vulcan Drill (VZD-LA, LBA) Type LA LBA Grade PC230F Tolerance (drill Dia.) h7 Tolerance (shank Dia.) h7 Point angle 140° 150° Twist angle 25° 20° Thinning X type Coolant Through (mm) Designation 0D 0d L Si S2 S3 VZD 126 135LA, LBA 12.6-13.5 16 140 92 48 74 136 145LA, LBA 13.6-14.5 16 145 97 48 78 146 155LA, LBA 14.6-15.5 20 155 105 50 85 156 165LA, LBA 15.6-16.5 20 165 115 50 94 166 175LA, LBA 16.6-17.5 20 170 120 50 98 176 185LA, LBA 17.6-18.5 20 175 125 50 101 186 195LA, LBA 18.6-19.5 25 190 134 56 109 196 205LA, LBA 19.6-20.5 25 195 139 56 113 206 215LA, LBA 20.6-21.5 25 195 139 56 112 216 225LA, LBA 21.6-22.5 25 200 144 56 116 226 235LA, LBA 22.6-23.5 25 210 154 56 124 236 245LA, LBA 23.6-24.5 32 220 160 60 129 246 255LA, LBA 24.6-25.5 32 225 165 60 133 256 265LA, LBA 25.6-26.5 32 230 170 60 137 266 275LA, LBA 26.6-27.5 32 235 175 60 141 276 285LA, LBA 27.6-28.5 32 240 180 60 144 286 295LA, LBA 28.6-29.5 32 245 185 60 148 296 305LA, LBA 29.6-30.5 32 255 195 60 157 306 315LA, LBA 30.6-31.5 40 275 205 70 166 316 325LA, LBA 31.6-32.5 40 280 210 70 172 326 335LA, LBA 32.6-33.5 40 280 215 70 173 336 345LA, LBA 33.6-34.5 40 290 220 70 177 346 355LA, LBA 34.6-35.5 40 295 225 70 181 356 365LA, LBA 35.6-36.5 40 300 230 70 183 366 375LA, LBA 36.6-37.5 40 305 235 70 188 376 385LA, LBA 37.6-38.5 40 315 245 70 193 386 395LA, LBA 38.6-39.5 40 320 250 70 198 396 405LA, LBA 39.6-40.5 40 325 255 70 203 x VZDDDDLA: For General steel, Ductile cast iron LBA: For Mild steel, Low carbon steel x Order made items: VZDDDDLD-Flute length-Total length L Ex.1) LA Type, Machined diameter: 018.6 mm, Flute length: 110 mm, Total length: 200 mm - VZD186LA x 110-200L Ex.2) LA Type, Machined diameter: 018.63, Flute length: 110 mm, Total length: 200 mm - VZD1863LA x 110-200L Ex.3) LA Type, Machined diameter: 018.6, Standard - VZD186LA J. Drills 90
