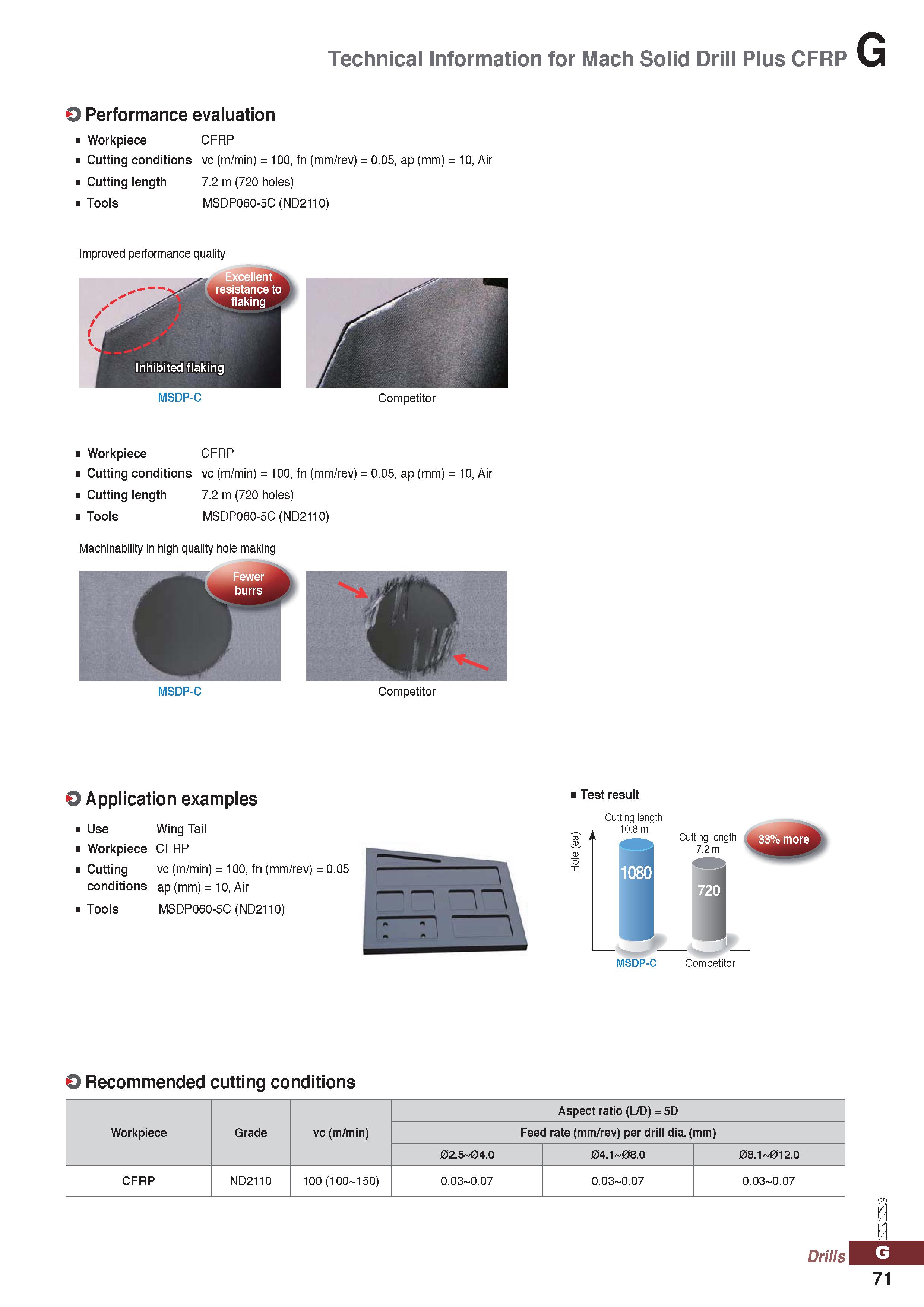

Technical Information for Mach Solid Drill Plus CFRP O Performance evaluation Workpiece CFRP Cutting conditions vc (m/min) = 100, fn (mm/rev) = 0.05, ap (mm) = 10, Air Cutting length 7.2 m (720 holes) Tools MSDP060-5C (ND2110) Workpiece CFRP Cutting conditions vc (m/min) = 100, fn (mm/rev) = 0.05, ap (mm) = 10, Air Cutting length 7.2 m (720 holes) Tools MSDP060-5C (ND2110) Machinability in high quality hole making MSDP-C Competitor O Application examples Test result Use Wing Tail Workpiece CFRP Cutt i ng vc (m/min) = 100, fn (mm/rev) = 0.05 co nditio ns ap (mm) = 10, Air Tools MSDP060-5C (ND2110) Cutting length 7.2 m - MSDP-C Competitor O Recommended cutting conditions Workpiece Grade vc (m/min) Aspect ratio (L/D) = 5D Feed rate (mm/rev) per drill dia. (mm) 02.5 04.0 04.1 08.0 08.1 012.0 CFRP ND2110 100 (100-150) 0.03-0.07 0.03-0.07 0.03-0.07 J- Drill 71
