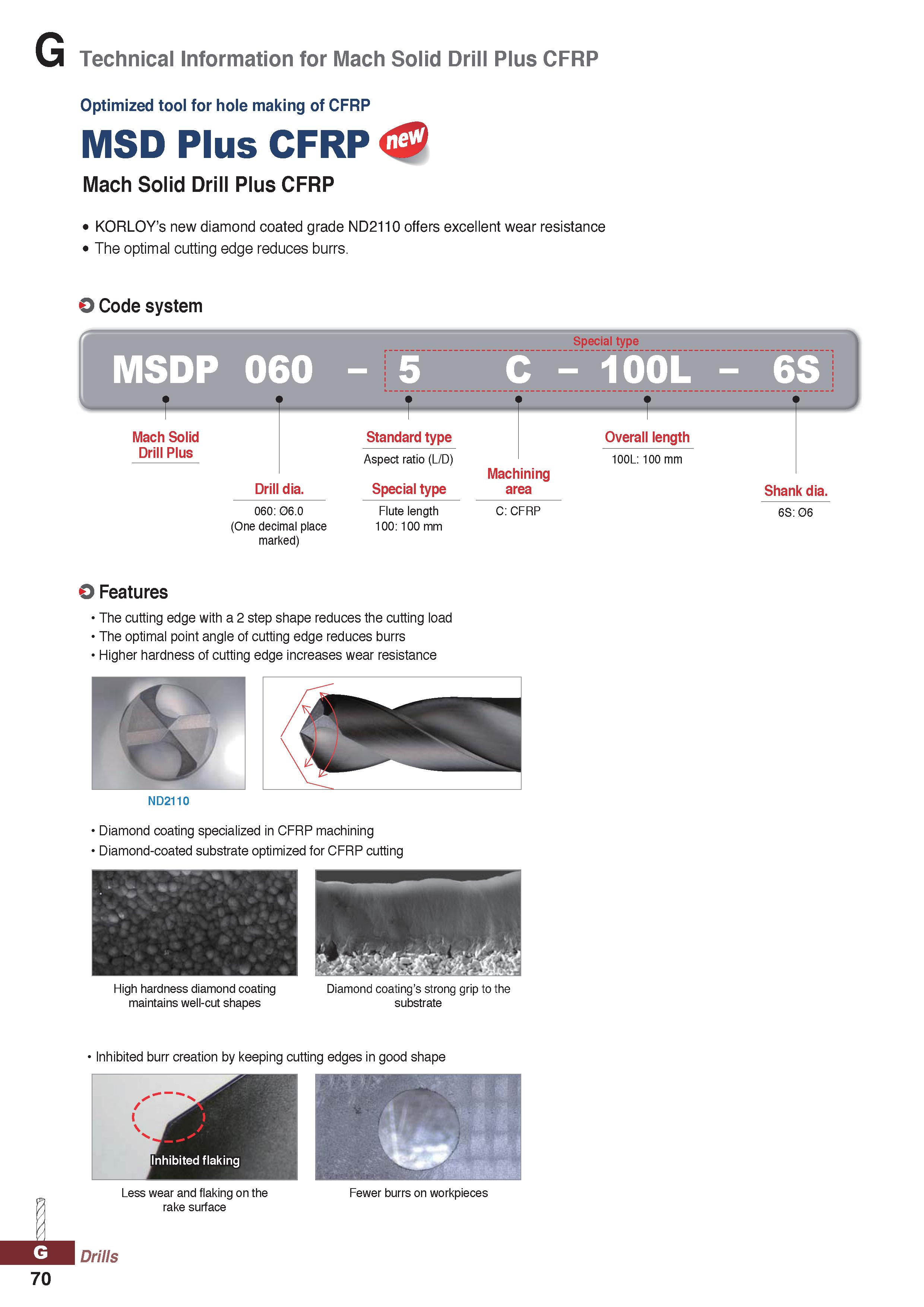

Technical Information for Mach Solid Drill Plus CFRP Optimized tool for hole making of CFRP MSD Plus CFRP Mach Solid Drill Plus CFRP KORLOY’s new diamond coated grade ND2110offers excellent wear resistance The optimal cutting edge reduces burrs. O Code system MSDP 060 - 5 C - 100L - Mach Solid Drill Plus Drill dia. 060: 06.0 (One decimal place marked) Standard type Aspect ratio (L/D) Special type Flute length 100: 100 mm Overall length 100L: 100 mm Machining area C: CFRP O Features The cutting edge with a 2 step shape reduces the cutting load The optimal point angle of cutting edge reduces burrs Higher hardness of cutting edge increases wear resistance ND2110 Diamond coating specialized in CFRP machining Diamond-coated substrate optimized for CFRP cutting High hardness diamond coating maintains well-cut shapes Diamond coating’s strong grip to the substrate Inhibited burr creation by keeping cutting edges in good shape .L Less wear and flaking on the Fewer burrs on workpieces rake surface Drills 70 6S Shank dia. 6S: 06
