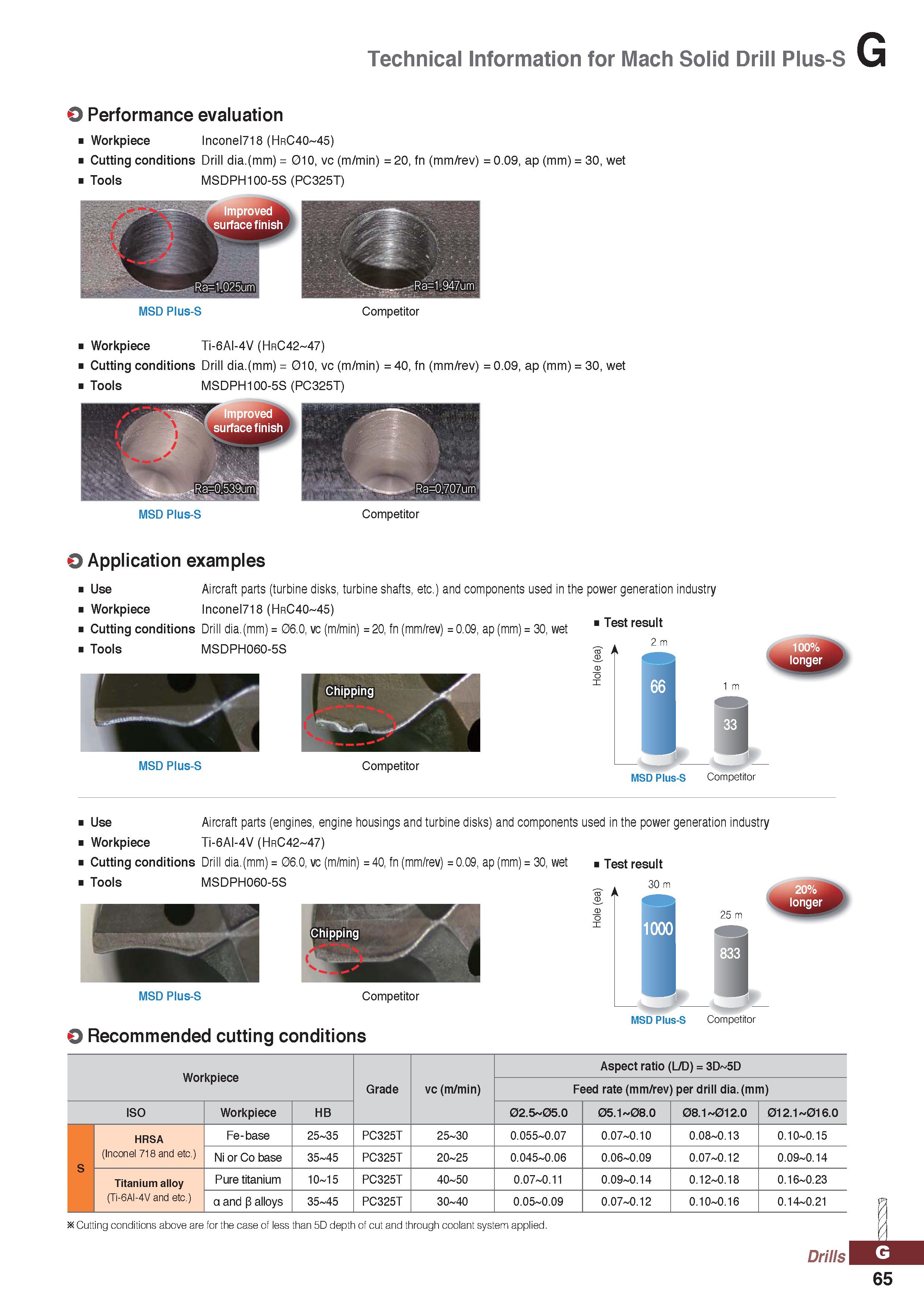

Technical Information for Mach Solid Drill Plus-S O Performance evaluation Workpiece Inconel718 (HrC40-45) Cutting conditions Drill dia.(mm) = 010, vc (m/min) = 20, fn (mm/rev) = 0.09, ap (mm) = 30, wet Tools MSDPH100-5S (PC325T) MSD Plus-S Competitor Workpiece Ti-6Al-4V (HrC42-47) Cutting conditions Drill dia.(mm) = 010, vc (m/min) = 40, fn (mm/rev) = 0.09, ap (mm) = 30, wet Tools MSDPH100-5S (PC325T) MSD Plus-S Competitor O Application examples Use Aircraft parts (turbine disks, turbine shafts, etc.) and components used in the power generation industry Workpiece Inconel718 (HrC40-45) Use Aircraft parts (engines, engine housings and turbine disks) and components used in the power generation industry Workpiece Ti-6Al-4V (HrC42-47) Cutting conditions Drill dia.(mm) = 06.0, vc (m/min) = 40, fn (mm/rev) = 0.09, ap (mm) = 30, wet Test result MSD Plus-S Competitor O Recommended cutting conditions Workpiece Grade vc (m/min) Aspect ratio (L/D) = 3D 5D Feed rate (mm/rev) per drill dia. (mm) ISO Workpiece HB 02.5 05.0 05.1 08.0 08.1 012.0 012.1 016.0 S HRSA (Inconel 718 and etc.) Fe-base 25-35 PC325T 25-30 0.055-0.07 0.07-0.10 0.08-0.13 0.10-0.15 Ni or Co base 35-45 PC325T 20-25 0.045-0.06 0.06-0.09 0.07-0.12 0.09-0.14 Titanium alloy (Ti-6Al-4V and etc.) Pure titanium 10-15 PC325T 40-50 0.07-0.11 0.09-0.14 0.12-0.18 0.16-0.23 a and p alloys 35-45 PC325T 30-40 0.05-0.09 0.07-0.12 0.10-0.16 0.14-0.21 X Cutting conditions above are for the case of less than 5D depth of cut and through coolant system applied. Drill G 65
